Product Description

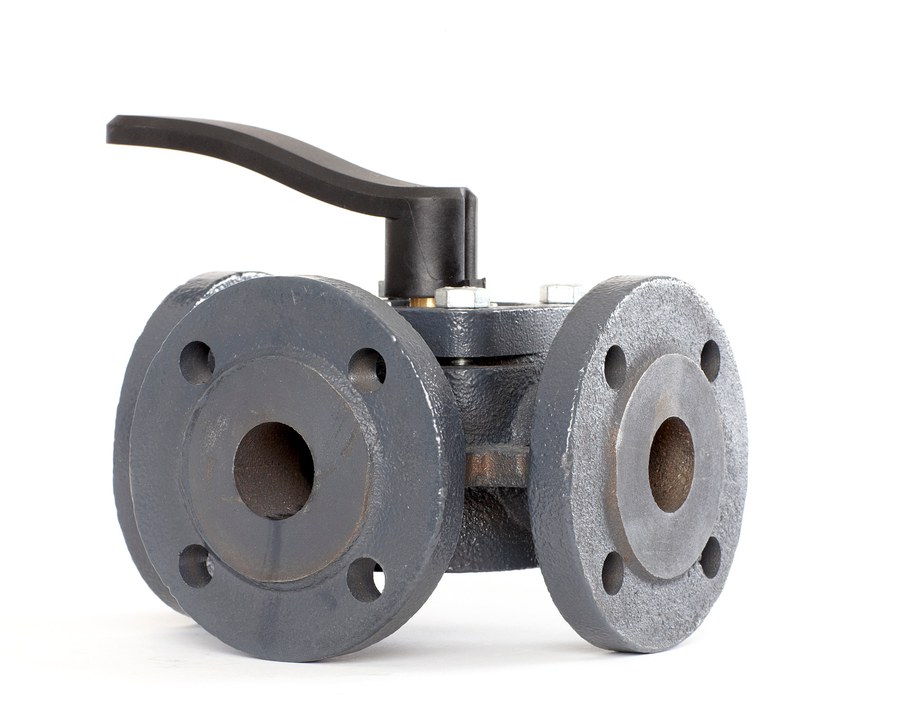

Danfoss HFE 3 3-way rotary mixing valve body (OEM designation "HFE 3 PN6 65/90 rotary 3-way Flange"). A rotating-slide 3-way valve for mixing or diverting service in heating and district-heating circuits — the slide is turned through 90° by a Danfoss AMB rotary actuator (ordered separately) or by the manual handle. Valve size DN 65; PN 6; Kvs 90 m³/h m³/h; Flange connection (PN 6); S characteristic flow characteristic; operating torque 10 N-m. Body Grey cast iron EN-GJL-250 (GG-25); cone DZR brass CuZn36Pb2AS (CW 602N); slide shoe DZR brass CuZn36Pb2AS (CW 602N); stuffing-box seal EPDM; port leakage Diverting: 0.5 | Mixing: 1.0 % Kvs. Maximum closing differential pressure 0.5 bar (mixing) / 0.5 bar (diverting). Media District heating/cooling circulation water — alternative Glycolic water up to 50%, 2 °C to 110 °C. OEM P/N 065Z0433. EAN 5710104033501. Technical data quoted verbatim from store.danfoss.com (code 065Z0433).
Technical Specifications
- Code number
- 065Z0433
- Type
- HFE 3
- Product group
- Other valves
- Gross weight
- 20.8 Kilogram
- Net weight
- 14.7 Kilogram
- Volume
- 92.82 Liter
- Application
- Heating
- Application alternative VSP
- District heating
- Closing differential pressure (diverting) [bar] [Max]
- 0.5 bar
- Closing differential pressure (mixing) [bar] [Max]
- 0.5 bar
- Connection size
- PN 6
- Connection types
- Flange
- Description
- HFE 3 PN6 65/90 rotary 3-way Flange
- Diameter [mm]
- 65 mm
- Flow characteristic
- S characteristic
- Function
- Pressure relief
- Kvs values [m³/h]
- 90 m³/h
- Leakage through port max. [% Kvs]
- Diverting: 0.5 | Mixing: 1.0
- Media pH [Max]
- 10
- Media pH [Min]
- 7
- Media temperature [°C] [Max]
- 110 °C
- Media temperature [°C] [Min]
- 2 °C
- Medium alternative
- Glycolic water up to 50%
- Mounting version
- Flow
- Number of ports
- 3
- Operating torque [Nm]
- 10 N-m
- Permissible media
- District heating/cooling circulation water
- Pressure nominal [bar]
- 6 bar
- Slide shoe material
- DZR brass CuZn36Pb2AS (CW 602N)
- Spindle material
- Stainless steel
- Stuffing box sealing material
- EPDM
- Valve body material
- Grey cast iron EN-GJL-250 (GG-25)
- Valve cone material
- DZR brass CuZn36Pb2AS (CW 602N)
- EAN
- 5710104033501
- HS code
- 8481.80
- Nominal diameter
- DN65
Standards & Compliance
- Size / Series
- HFE 3
- Material
- Grey cast iron EN-GJL-250 (GG-25)
- Pressure Rating
- PN 6
- Temperature Range
- 2 °C to 110 °C
- HS Code
- 8481.80
Compatibility & Fitment
Rotary 3-way mixing valve for weather-compensated heating and cooling circuits. Turn the flanged body with a Danfoss AMB rotary actuator (ordered separately) or the manual handle. Confirm valve size (DN 65), Kvs (90 m³/h m³/h), PN 6 and flange drilling against the HRB/HRE/HFE data sheet before ordering; the actuator, connection set and stuffing-box service parts are ordered separately (065Z0439-0461).
