Danfoss GBC 16S E Shut-off Ball Valve 5/8 in (16 mm) Solder ODM
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss GBC 16s E shut-off (stop) ball valve, code 009L9038: a straightway two-way brass ball valve for commercial air-conditioning and refrigeration lines. Bi-directional flow, solder, ODM, 5/8 in (16 mm), inlet and outlet. No access port. GBC "E" generation: Maximum working pressure 49 bar (710 psig); media temperature -40 °C to 150 °C. Brass body with copper tube connections and a wire-seal cap. Approved C UL US Listed, CE, EAC, EURO-TYSK. Technical data quoted verbatim from store.danfoss.com (code 009L9038).
Technical Specifications
- Brand
- Danfoss
- Part number
- 009L9038
- Model
- GBC 16s E shut-off (stop) ball valve
- Category
- HVAC & Refrigeration — Ball Valves
- Direction
- Straightway
- Flow
- Bi-directional (valve orientation is unimportant)
- Connection
- Solder, ODM, 5/8 in (16 mm), inlet and outlet
- Access port
- No
- Max working pressure (PS/MWP)
- 49 bar (710 psig)
- Media temperature range
- -40 °C to 150 °C (-40 °F to 302 °F)
- Max media temperature, oil-free
- 150 °C
- Kv
- 15.66 m³/h
- Cv
- 18.1 gal/min
- Net weight
- 0.2 kg
- Gross weight
- 0.287 kg
- Body material
- Brass; connection material: copper
- Equipment
- Cap w. wire seal
- Panel mounting option
- M4 × 0.7 (2 PC)
- Fluid group
- 1 2
- PED category
- Art. 4, par. 3
- Approvals
- C UL US Listed, CE, EAC, EURO-TYSK
- Packing
- 25 pc per multi-pack
- Refrigerant compatibility
- R454B
- Oil-free refrigerants
- R516A
- Code number
- 009L9038
- Product type
- GBC 16s E
- Product group
- Shut-off and regulating valves
- Connection material
- Copper
- Inlet connection type
- Solder, ODM
- Inlet size
- 16.00 mm
- Outlet connection type
- Solder, ODM
- Outlet size
- 16.00 mm
- Cv value
- 18.100 gal/min
- Max. media temp. Oil free
- 150 °C
- Temperature range
- -40 °C to 150 °C
- Refrigerants
- R245fa; R454B
- UL approved refrigerants
- R454B
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Flow direction
- Bi-flow
- Flow direction indicator
- Embossed 2-way arrow
Standards & Compliance
- Standard
- EN 12284
- Size / Series
- 5/8 in
- Material
- Brass body; copper tube connections
- Pressure Rating
- 49 bar (710 psig) max working pressure
- Temperature Range
- -40 °C to 150 °C
- Classification / Approval
- C UL US Listed, CE, EAC, EURO-TYSK
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss GBC 16s E fits 5/8 in ODM solder (copper) connections. Verify the tube dimension (inch copper, ANSI B16.22), the connection form (ODF cup / ODM spigot) and whether an access port is required before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss GBC 22S E Shut-off Ball Valve 7/8 in (22 mm) Solder ODM
009L9039
Danfoss

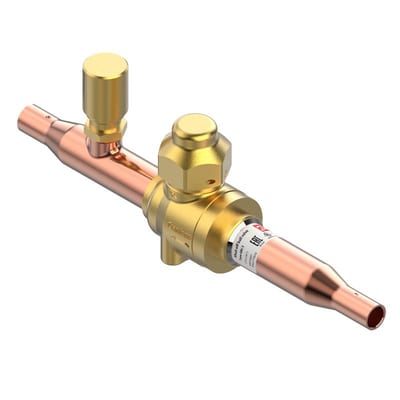

Danfoss GBC 6S E Shut-off Ball Valve 1/4 in Solder ODF with Access Port
009L9050
Danfoss

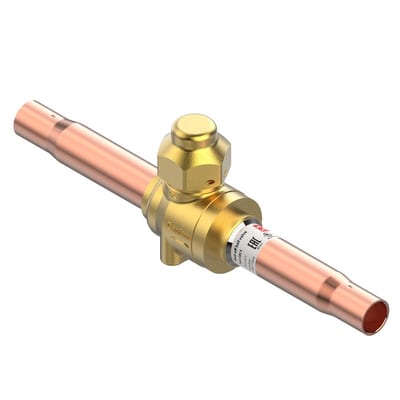

Danfoss GBC 10S E Shut-off Ball Valve 3/8 in Solder ODF with Access Port
009L9051
Danfoss

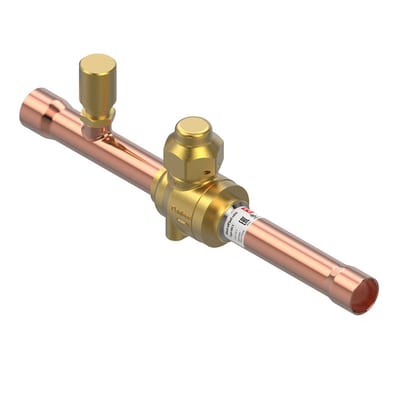

Danfoss GBC 12S E Shut-off Ball Valve 1/2 in Solder ODF with Access Port
009L9052
Danfoss

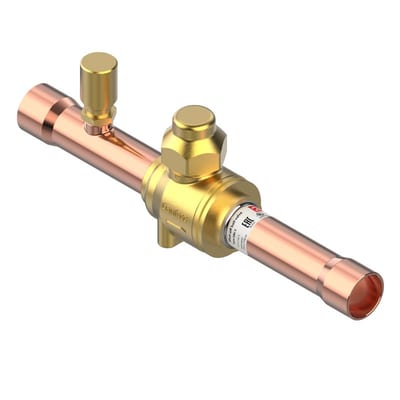

Danfoss GBC 16S E Shut-off Ball Valve 5/8 in (16 mm) Solder ODF with Access Port
009L9053
Danfoss

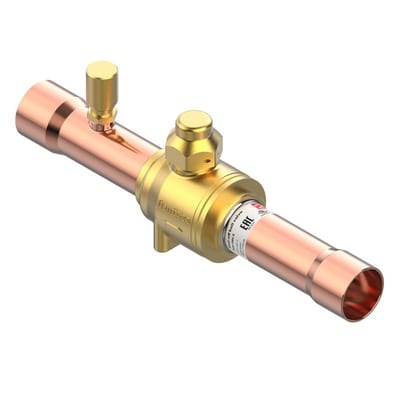

Danfoss GBC 18S E Shut-off Ball Valve 3/4 in Solder ODF with Access Port
009L9054
Danfoss

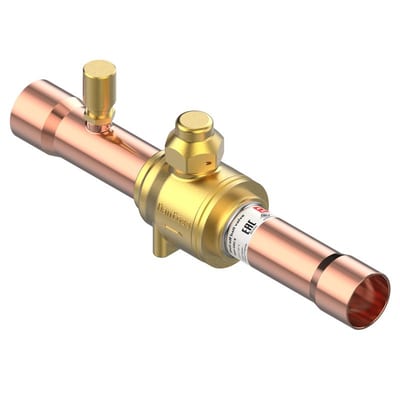

Danfoss GBC 22S E Shut-off Ball Valve 7/8 in (22 mm) Solder ODF with Access Port
009L9055
Danfoss

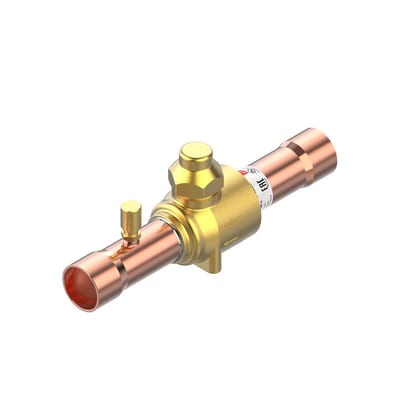

Danfoss GBC 28S E Shut-off Ball Valve 1 1/8 in Solder ODF with Access Port
