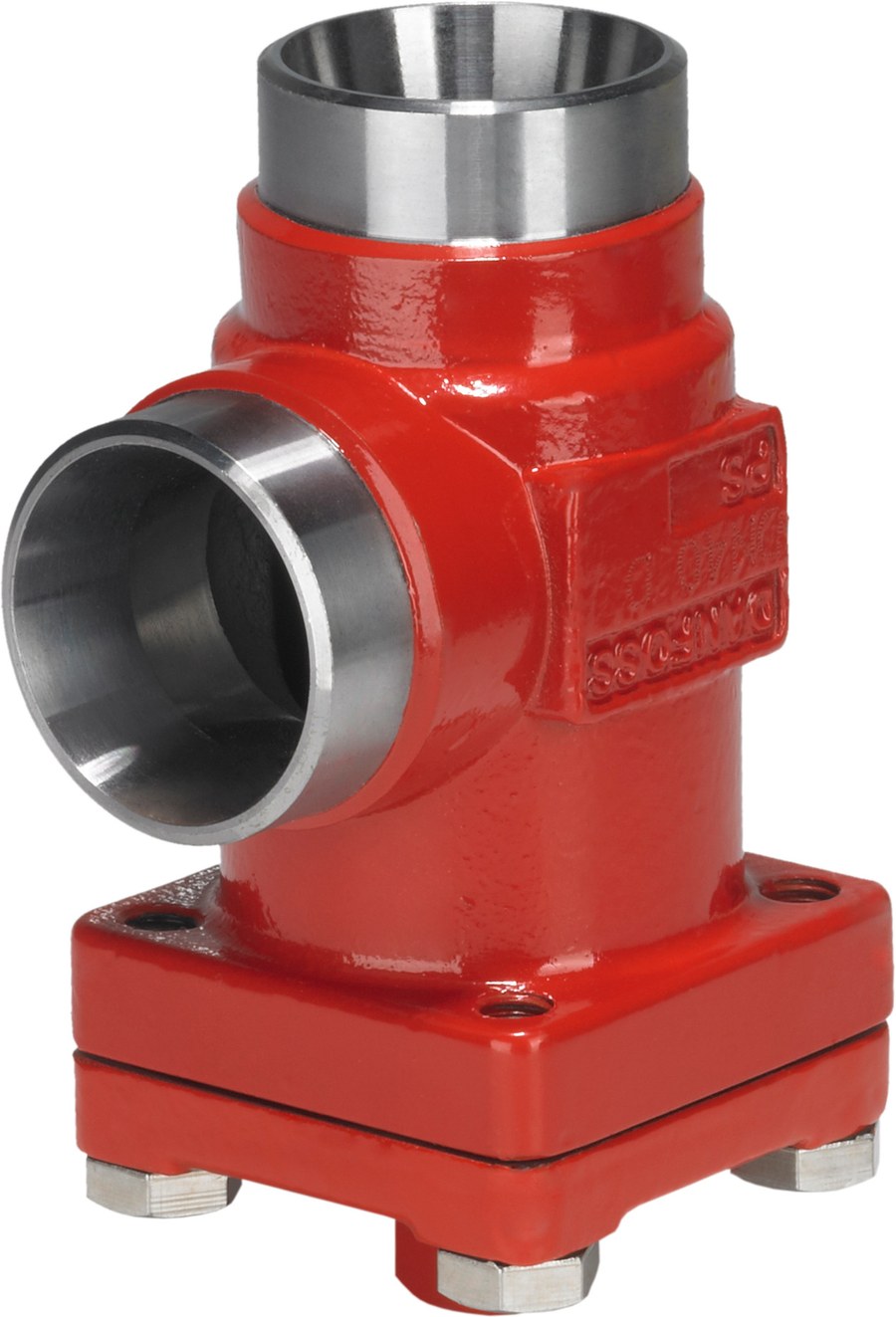

Danfoss FIA 50 angleway strainer, cover, 50 mm (2 in) butt weld EN 10220, steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss FIA 50 strainer, store code 148B5712, angleway steel body with removable filter insert. The FIA in the Danfoss SVL Flexline range protects downstream components in industrial refrigeration systems by trapping particles; the insert is serviceable without removing the housing from the line. Applicable to R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Nominal size 50 mm (2 in), butt weld connections to EN 10220; flow coefficient Kv 45.1 m3/h (clean, µ100 mesh; Cv 202.09 gal/min). Steel housing. Maximum working pressure 52 bar g (754 psig); media temperature -60 to 150 C (-76 to 302 F). Conformity assessment PED 2014/68/EU, Category II. Specifications per Danfoss store code 148B5712. EAN 5702428476546.
Technical Specifications
- Type
- FIA 50 strainer (SVL Flexline)
- Code number
- 148B5712
- Nominal size
- 50 mm (2 in)
- Flow direction body
- Angleway
- Connection
- butt weld both ends, EN 10220
- Flow
- bi-directional (bi-flow)
- Top equipment
- Cover
- Flow coefficient Kv
- 45.1 m3/h (µ100 mesh, clean)
- Housing material
- steel
- Net weight
- 2.55 kg
- Maximum working pressure
- 52 bar g (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- R717 (ammonia), R744 (CO2), HFC/HCFC refrigerants and oils
- Conformity assessment
- PED 2014/68/EU, Category II
- Approvals
- CE
- EAN
- 5702428476546
- Product group
- Strainers
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection Code
- (2001:D29:50)
- Connection material
- Steel
- Connection standard
- EN 10220
- Cv value [gal/min] 100 plain
- 202.09 gal/min
- Cv value [gal/min] 100 pleated
- 249.64 gal/min
- Cv value [gal/min] 150 plain
- 198.57 gal/min
- Cv value [gal/min] 38 plain
- 221.02 gal/min
- Cv value [gal/min] 38 pleated
- 272.98 gal/min
- Cv value [gal/min] 72 plain
- 209.58 gal/min
- Cv value [gal/min] 72 pleated
- 258.89 gal/min
- Direction
- Angleway
- Equipment
- Cover
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 2 in
- Inlet connection size [mm]
- 50 mm
- Inlet connection type
- Butt weld
- Kv value [m3/h] µ100 plain
- 45.1 m³/h
- Kv value [m3/h] µ150 plain
- 45.9 m³/h
- Kv value [m3/h] µ150 pleated
- 56.7 m³/h
- Kv value [m3/h] µ250 plain
- 47.6 m³/h
- Kv value [m3/h] µ250 pleated
- 58.8 m³/h
- Kv value [m3/h] µ500 plain
- 50.2 m³/h
- Kv value [m3/h] µ500 pleated
- 62 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Outlet connection size [in]
- 2 in
- Outlet connection size [mm]
- 50 mm
- Outlet connection type
- Butt weld
- PED category
- II
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 50 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8421.39
Compatibility & Fitment
Danfoss SVL Flexline FIA 50. Select by flow direction (angleway), connection (butt weld EN 10220) and top. EN 10220 and ASME weld-end preparations are not interchangeable — confirm the mating pipe schedule/OD before ordering. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG-SA/REG-SB regulating, SCA-X/CHV-X check valves and FIA strainers of the same nominal size.
