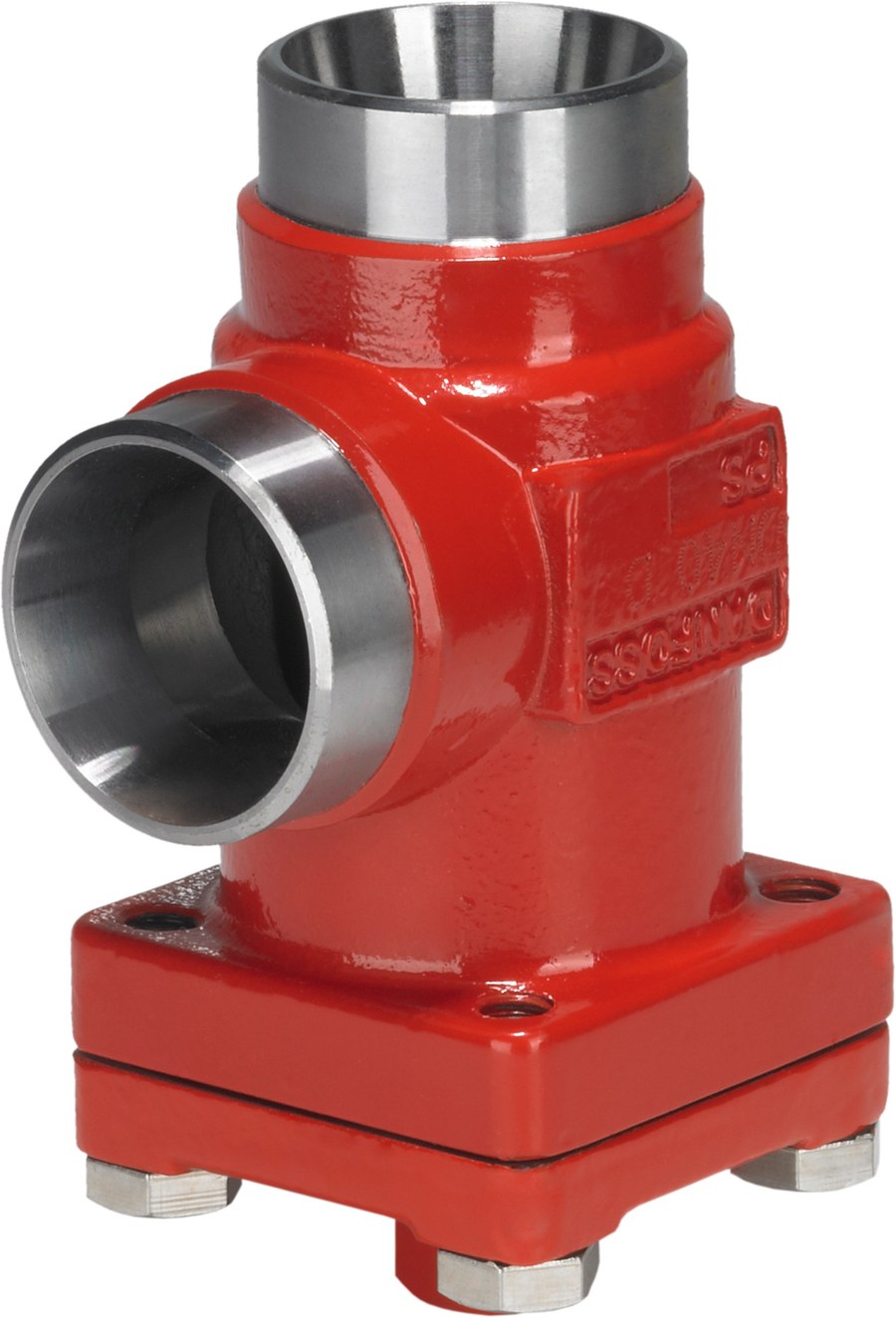

Danfoss FIA 25 angleway strainer housing, 25 mm (1 in) butt weld EN 10220, 52 bar, steel (code 148B5442)
Danfoss · HVAC & Refrigeration · Filters & Driers
Danfoss FIA 25 in-line strainer housing for the SVL Flexline industrial-refrigeration range. Angleway body with 25 mm (1 in) butt weld connections to EN 10220. The strainer protects downstream valves, pumps and controls by trapping scale, weld slag and debris carried in the refrigerant. Steel body suits HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems; maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Housing supplied with cover; the filter insert (µ100/µ150/µ250/µ500 plain or pleated mesh) is ordered separately to suit the required filtration grade and pressure drop.
Specifications
- Part number
- 148B5442
- HS code
- 8421.39
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard size
- 25 mm
Compatibility
Danfoss FIA in-line strainer housing for the SVL Flexline industrial-refrigeration range. Protects downstream valves, pumps and controls by trapping scale and debris. Select by nominal size, body direction (angleway / straightway) and connection (weld standard). The filter insert (mesh grade, plain or pleated) is ordered separately; butt weld, socket weld and different weld standards are separate housing codes and are not interchangeable.
Approvals
