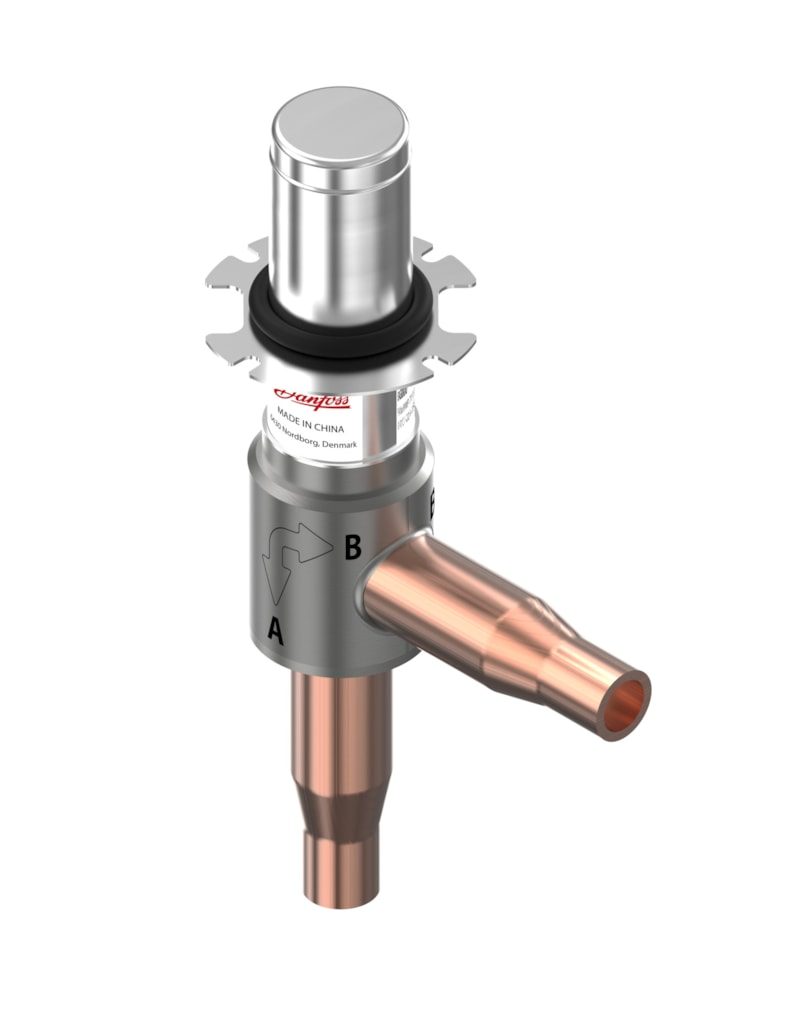

Danfoss ETS 8M40S electric expansion valve, 3/8 in ODM solder, orifice 4 mm, S-shape flow, copper, 49 bar MWP
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ETS 8M40S stepper-motor electric expansion valve, code 034G8802. Copper-body in-line valve with 3/8 in (9.5 mm) Solder ODM copper inlet and outlet, 4 mm orifice and a S-shape flow characteristic, bi-flow. Permanent-magnet stepper (1-2 half-step excitation, 500 half-steps) gives precise refrigerant expansion and flow control for modular chillers, single-package air conditioners and low-ambient heat pumps. Rated 60 kW / 17 TR on R410A. MWP 49 bar (711 psig); MOPD 39 bar forward / 32 bar reverse. Refrigerant and ambient -30 to 70 °C. Driven by a compatible Danfoss (or third-party) electronic controller, ordered separately. OEM P/N 034G8802.
Technical Specifications
- Type
- Electric expansion valve, ETS 8M40S (ETS 8M M-series)
- Code number
- 034G8802
- Function
- stepper-motor driven electric expansion valve for precise refrigerant expansion and flow control
- Inlet connection
- 3/8 in (9.5 mm), Solder ODM, copper
- Outlet connection
- 3/8 in (9.5 mm), Solder ODM, copper
- Orifice
- 4 mm
- Flow characteristic
- S-shape
- Flow direction
- bi-flow (single/bi-flow operation)
- Rated capacity (R410A)
- 60 kW / 17 TR
- Max. working pressure (PS/MWP)
- 49 bar (711 psig)
- MOPD (max. operating pressure differential)
- 39 bar (566 psig) forward, 32 bar (497 psi) reverse
- Refrigerant temperature range
- -30 to 70 °C (-22 to 158 °F)
- Ambient temperature range
- -30 to 70 °C (-22 to 158 °F)
- Body / connection material
- Copper
- Motor
- permanent-magnet stepper motor; 1-2 excitation (half step); 500 half-steps full travel
- Compatible lubricants
- POE, PVE
- Compatible refrigerants
- R1234ze(E), R134a, R290, R32, R404A, R407C, R410A, R448A, R449A, R449B, R452A, R452B, R454B, R454C, R513A, R515B
- Control
- system product; driven by a compatible Danfoss electronic controller (or a compatible third-party controller) — valve does not operate stand-alone
- Net weight
- 0.146 kg (gross 0.214 kg)
- Approvals
- UL Recognized (cURus); EU RoHS; China RoHS; PED 2014/68/EU Article 4 paragraph 3
- EAN
- 5702424595197
Standards & Compliance
- Size / Series
- 3/8 in (9.5 mm) ODM
- Material
- Copper
- Thread Standard
- Solder ODM
- Pressure Rating
- 49 bar (711 psig) MWP; MOPD 39 bar fwd / 32 bar rev
- Temperature Range
- -30 to 70 °C refrigerant and ambient
- HS Code
- 8481.80
Compatibility & Fitment
ETS 8M is a stepper valve — it does not operate stand-alone. Drive it with a compatible Danfoss electronic controller (or a compatible third-party controller). Confirm orifice / flow characteristic (L = linear, S = S-shape), connection size and refrigerant before ordering. Linear (L) and S-shape (S) variants share body and connection but differ in the flow-vs-opening curve used for controller tuning.
