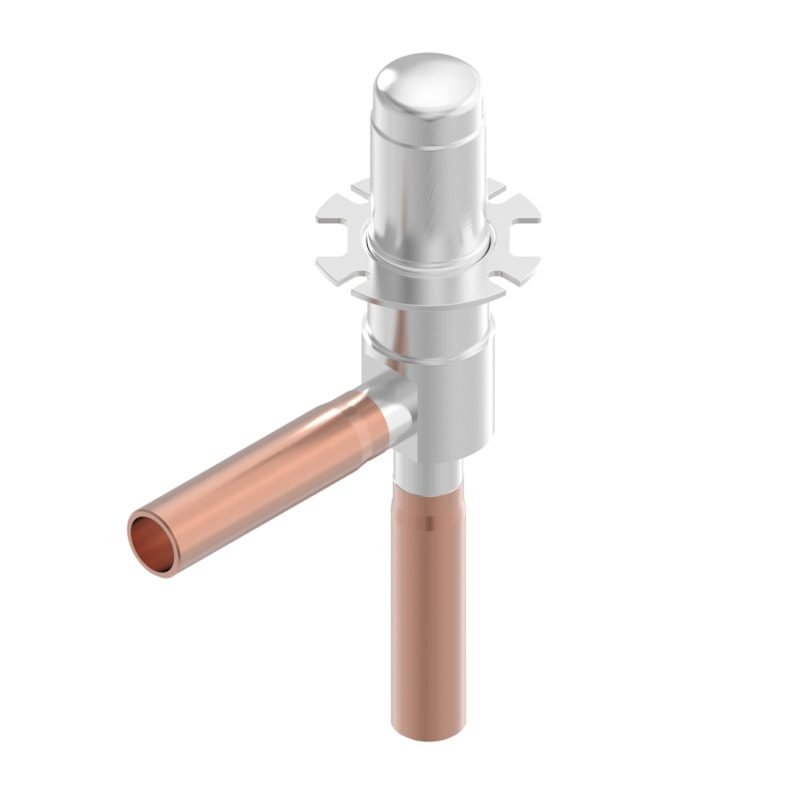

Danfoss ETS 5M35S electric expansion valve, 5/16 in (7.94 mm) ODM solder, orifice 3.5 mm, Linear flow, 49 bar (710 psig) MWP
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ETS 5M35S electric expansion valve, code 034G6554, from the ETS 5M compact stepper-valve range. 5/16 in (7.94 mm) ODM solder Cu-plated SS inlet and outlet, 3.5 mm orifice, Linear flow characteristic, bi-flow. Permanent magnet stepper motor (480 half steps) gives precise refrigerant expansion and flow control for compact chillers, heat pumps and air-conditioning circuits. Rated capacity: R410A 36 kW / 10.24 TR. MWP 49 bar (710 psig); MOPD 42 bar forward / 42 bar reverse. Refrigerant -30 °C to 70 °C, ambient -30 °C to 70 °C. Driven by a compatible Danfoss controller (EIM 336, EKE 1A, EKE 1B, EKE 1C, EKE100) ordered separately. EAN 5715255007289. OEM P/N 034G6554.
Technical Specifications
- Type
- ETS 5M35S
- Code number
- 034G6554
- Product group
- Expansion valves
- Function
- stepper-motor driven electric expansion valve for precise refrigerant expansion and flow control
- Inlet connection
- 5/16 in (7.94 mm), ODM solder, Cu-plated SS
- Outlet connection
- 5/16 in (7.94 mm), ODM solder, Cu-plated SS
- Orifice
- 3.5 mm
- Flow characteristic
- Linear
- Flow direction
- Bi-flow
- Body / connection material
- Cu-plated SS
- Rated capacity
- R410A 36 kW / 10.24 TR
- Max. working pressure (PS/MWP)
- 49 bar (710 psig)
- MOPD
- 42 bar forward / 42 bar reverse
- Refrigerant temperature range
- -30 °C to 70 °C
- Ambient temperature range
- -30 °C to 70 °C
- Motor
- Permanent magnet stepper motor; step mode: 1-2 excitation (half step), 2-2 excitation (full step); 480 (half steps)
- Compatible lubricants
- MO, PAG, POE, PVE
- Compatible refrigerants
- R1234yf, R1234ze(E), R134a, R22, R290, R32, R404A/R507A, R407C, R407H, R410A, R448A, R449A, R449B, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R513A, R515B
- Compatible Danfoss controllers
- EIM 336, EKE 1A, EKE 1B, EKE 1C, EKE100
- Control
- system product; driven by a compatible Danfoss electronic controller (or a compatible third-party controller) — valve does not operate stand-alone
- Net weight
- 0.036 Kilogram (gross 0.053 Kilogram)
- Approvals
- EU RoHS; China RoHS; PED 2014/68/EU Art. 4, par. 3
- EAN
- 5715255007289
Standards & Compliance
- Size / Series
- 5/16 in (7.94 mm) ODM solder
- Material
- Cu-plated SS
- Thread Standard
- ODM solder
- Pressure Rating
- 49 bar (710 psig) MWP; MOPD 42 bar
- Temperature Range
- -30 °C to 70 °C refrigerant, -30 °C to 70 °C ambient
- HS Code
- 8481.80
Compatibility & Fitment
ETS 5M35S is a stepper valve — it does not operate stand-alone. Drive it with a compatible Danfoss electronic controller (EIM 336, EKE 1A, EKE 1B, EKE 1C, EKE100) or a compatible third-party driver. Confirm orifice, flow characteristic, connection size and refrigerant before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ETS 5M35S electric expansion valve, 1/2 in ODM solder, orifice 3.5 mm, Linear flow, 49 bar (710 psig) MWP
034G6555
Danfoss
Danfoss ETS 5M40S electric expansion valve, 5/16 in (7.94 mm) ODM solder, orifice 4 mm, Linear flow, 49 bar (710 psig) MWP
034G6556
Danfoss
Danfoss ETS 5M40S electric expansion valve, 1/2 in ODM solder, orifice 4 mm, Linear flow, 49 bar (710 psig) MWP
034G6557
Danfoss

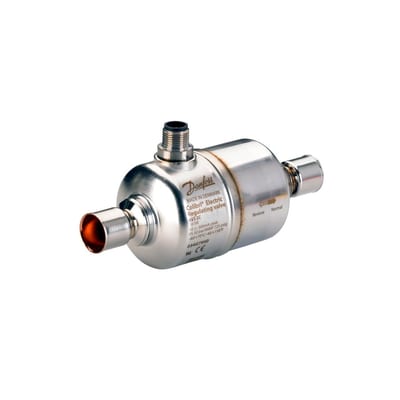

Danfoss KVS 5C electric regulating valve, 1 1/8 in (28 mm) ODF solder, Kv 4.9 m³/h, stainless steel, 50 bar (725 psig) MWP
034G7850
Danfoss

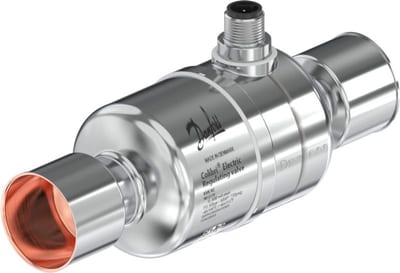

Danfoss KVS 1C electric regulating valve, 5/8 in (16 mm) ODF solder, Kv 0.6 m³/h, stainless steel, 50 bar (725 psig) MWP
034G7860
Danfoss
Danfoss KVS 2C electric regulating valve, 7/8 in (22 mm) ODF solder, Kv 1.2 m³/h, stainless steel, 50 bar (725 psig) MWP
034G7950
Danfoss
Danfoss KVS 3C electric regulating valve, 1 1/8 in (28 mm) ODF solder, Kv 2.5 m³/h, stainless steel, 50 bar (725 psig) MWP
034G7960
Danfoss

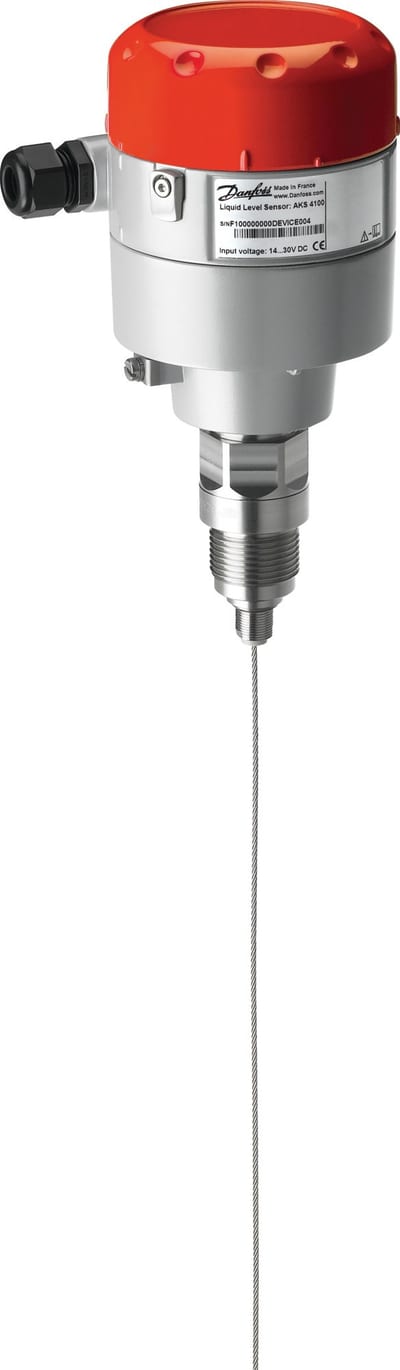

Danfoss AKS 4100 liquid level sensor, Cable version, 5 m (197 in) probe, G 1 in, without display, guided-wave TDR, 4–20 mA
