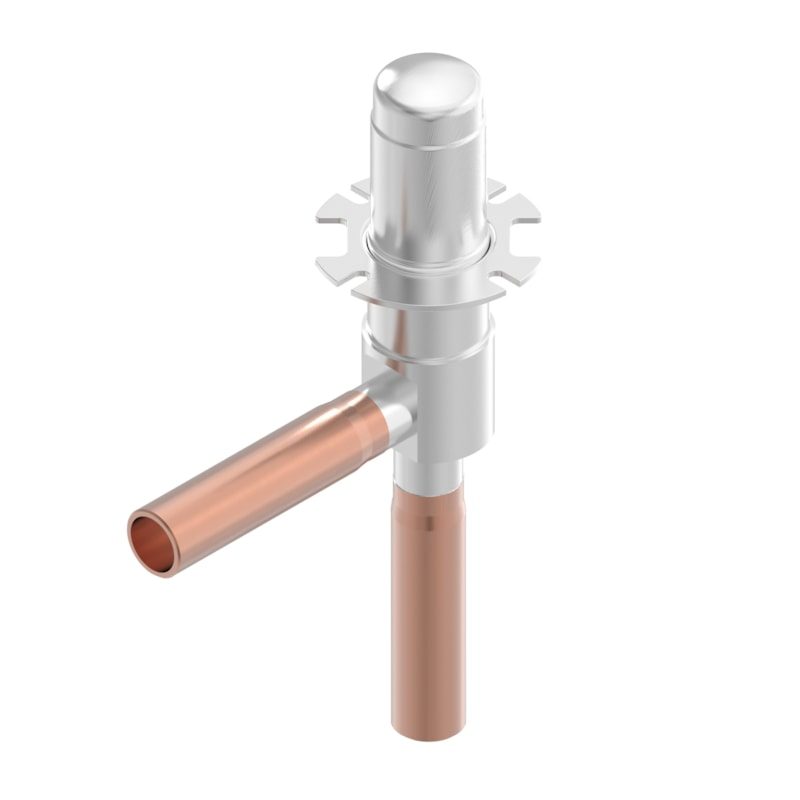

Danfoss ETS 5M24S electric expansion valve, 5/16 in (7.94 mm) ODM solder, orifice 2.4 mm, S-shape flow, 49 bar (710 psig) MWP

Danfoss ETS 5M24S electric expansion valve, code 034G6470, from the ETS 5M compact stepper-valve range. 5/16 in (7.94 mm) ODM solder Cu-plated SS inlet and outlet, 2.4 mm orifice, S-shape flow characteristic, bi-flow. Permanent magnet stepper motor (480 half steps) gives precise refrigerant expansion and flow control for compact chillers, heat pumps and air-conditioning circuits. Rated capacity: R410A 20.42 kW / 5.8 TR. MWP 49 bar (710 psig); MOPD 35 bar forward / 35 bar reverse. Refrigerant -30 °C to 70 °C, ambient -30 °C to 70 °C. Driven by a compatible Danfoss controller (EIM 336, EKE 1A, EKE 1B, EKE 1C, EKE100) ordered separately. EAN 5715255007234. OEM P/N 034G6470.

Type

ETS 5M24S

Code number

034G6470

Product group

Expansion valves

Function

stepper-motor driven electric expansion valve for precise refrigerant expansion and flow control

Inlet connection

5/16 in (7.94 mm), ODM solder, Cu-plated SS

Outlet connection

5/16 in (7.94 mm), ODM solder, Cu-plated SS

Orifice

2.4 mm

Flow characteristic

S-shape

Flow direction

Bi-flow

Body / connection material

Cu-plated SS

Rated capacity

R410A 20.42 kW / 5.8 TR

Max. working pressure (PS/MWP)

49 bar (710 psig)

MOPD

35 bar forward / 35 bar reverse

Refrigerant temperature range

-30 °C to 70 °C

Ambient temperature range

-30 °C to 70 °C

Motor

Permanent magnet stepper motor; step mode: 1-2 excitation (half step), 2-2 excitation (full step); 480 (half steps)

Compatible lubricants

POE, MO, PAG, PVE

Compatible refrigerants

R1234yf, R1234ze(E), R134a, R22, R290, R32, R404A/R507A, R407C, R407H, R410A, R448A, R449A, R449B, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R513A, R515B

Compatible Danfoss controllers

EIM 336, EKE 1A, EKE 1B, EKE 1C, EKE100

Control

system product; driven by a compatible Danfoss electronic controller (or a compatible third-party controller) — valve does not operate stand-alone

Net weight

0.039 Kilogram (gross 0.063 Kilogram)

Approvals

EU RoHS; China RoHS; PED 2014/68/EU Art. 4, par. 3

EAN

5715255007234

Size / Series

5/16 in (7.94 mm) ODM solder

Material

Cu-plated SS

Thread Standard

ODM solder

Pressure Rating

49 bar (710 psig) MWP; MOPD 35 bar

Temperature Range

-30 °C to 70 °C refrigerant, -30 °C to 70 °C ambient

HS Code

8481.80
