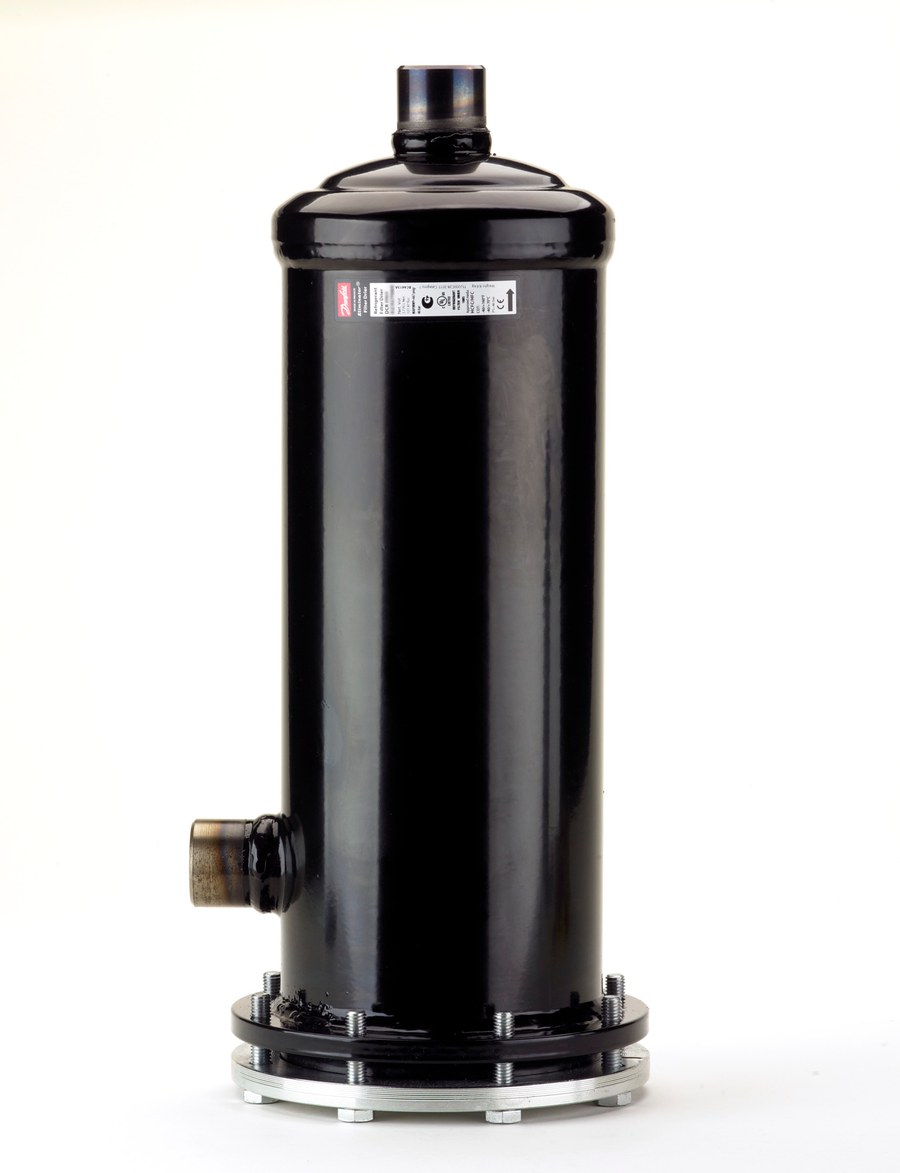

Danfoss ELIMINATOR DCR filter drier shell, DCR 04821S, 2 5/8 in ODF solder, 1-Core (48 cu.in.), 46 bar, code

Danfoss ELIMINATOR DCR replaceable-core filter drier shell, code 023U7276 (type DCR 04821s), with a 2 5/8 in ODF copper solder connection and steel body. Holds 1 solid core of core-size code 48 cu.in.; shell volume 1.94 L, net volume 1.492 L. The Danfoss ELIMINATOR DCR is a semi-hermetic (bolted, serviceable) filter drier shell for the liquid and/or suction line of refrigeration, freezing and air-conditioning systems. The steel housing and top cover form a pressure vessel that holds one or more replaceable solid cores; the cover unbolts so the spent core can be exchanged without cutting the shell out of the line. Solid cores are ordered separately by function: 48-DM (100% molecular sieve, moisture adsorption), 48-DC (80% molecular sieve + 20% activated alumina, moisture and acid), 48-DA (30% molecular sieve + 70% activated alumina, post-burnout cleanup) and 48-F (strainer, retains particles above 15 microns). The all-steel housing is compatible with every listed refrigerant. Maximum working pressure 46 bar (667 psig); media temperature -40 to 70 C (-40 to 160 F); PED category I. For HFC, HFO and HCFC refrigerants (R1234ze(E), R125, R134a, R22/R407C, R23, R404A, R407A, R407F, R410A, R438A, R448A, R449A, R449B, R450A, R452A, R507A, R513A) in liquid / suction lines. Supplied as a single-pack shell assembly (housing and top cover); solid cores ordered separately.

Type designation

DCR 04821s

Product group

Filter driers (ELIMINATOR, replaceable solid core)

Function

Serviceable filter drier shell for the liquid / suction line — holds replaceable solid cores (48-DM / 48-DC / 48-DA / 48-F, ordered separately)

Number of cores

1

Core size code

48 cu.in.

Connection type

Solder, ODF

Connection size

2 5/8 in

Connection material

Copper

Body material

Steel

Shell volume

1.94 L

Net volume

1.492 L

Maximum working pressure

46 bar (667 psig)

Media temperature range

-40 to 70 C (-40 to 160 F)

Flow direction indicator

1-way arrow (printed label)

Compatible refrigerants

R1234ze(E), R125, R134a, R22/R407C, R23, R404A, R407A, R407F, R410A, R438A, R448A, R449A, R449B, R450A, R452A, R507A, R513A

PED category

I

Packing format

Single pack (1 pc)

Net weight

4.737 kg

Gross weight

5.777 kg

EU RoHS compliance

Yes

China RoHS compliance

Yes

Approvals

CE, CSA, UL (UL file SA6398)

EAN

5702428249775

MPN

023U7276

Material

Steel

Pressure Rating

46 bar

Temperature Range

-40 to 70 C

HS Code

8421.39
