Product Description

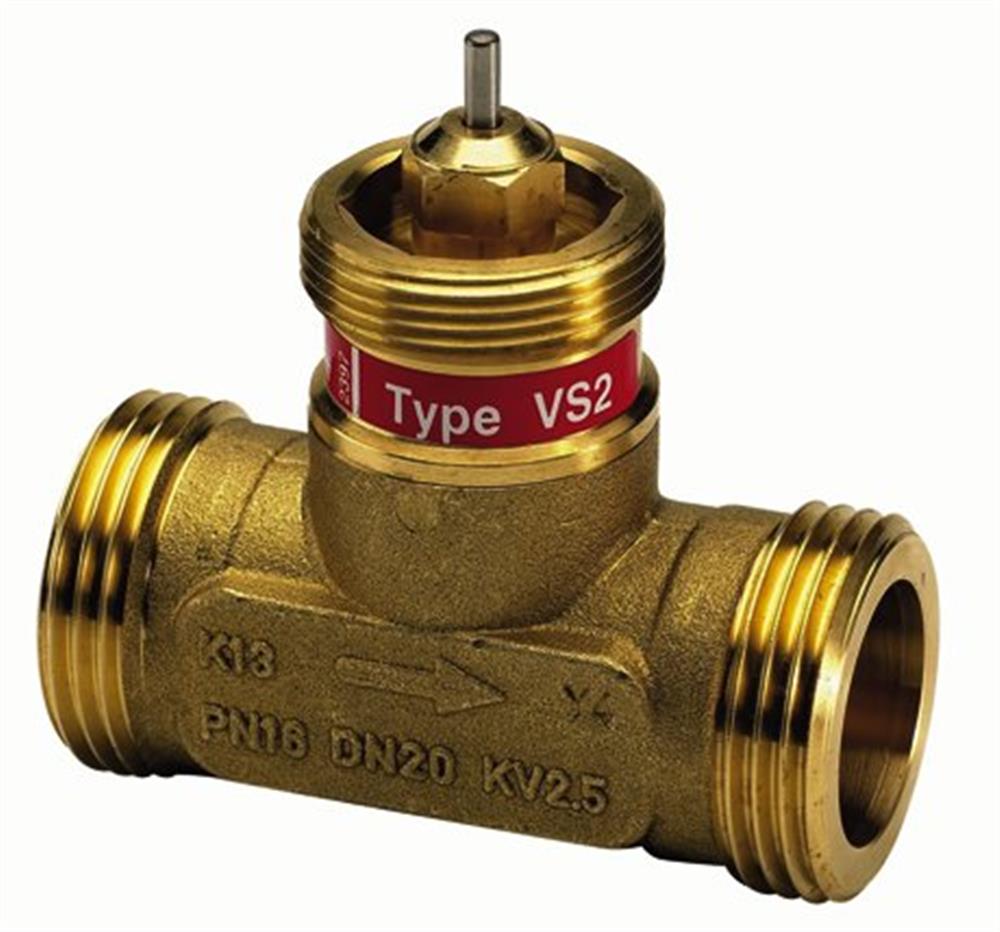

Danfoss VS 2 Seat Valve 2-way. Seat valves (Plumbing / Heat / Valves for heating and cooling systems). Principal data: dn dimension 15, thread 3/4", connection Male thread, kvs value 1.6 m³/h. Supplied under manufacturer part number 065F2115, EAN 5702421510223, HS code 8481.80, country of origin Slovenia.
Technical Specifications
- Product type
- Seat valves
- Product group
- Heat
- DN dimension
- 15
- Thread
- 3/4"
- Connection
- Male thread
- Kvs value
- 1.6 m³/h
- REACH SVHC substance above 0.1%
- Lead
- Sales unit
- Pack, Plt.
- Carbon footprint (EPD)
- 2.2427 kg CO2e per pcs
- Country of origin
- Slovenia
- Customs tariff code (EU CN)
- 84818079
- HS code
- 8481.80
- Manufacturer part number
- 065F2115
- VVS number
- 461045404
- EAN
- 5702421510223
- Net weight
- 0.29 Kilogram
- Type
- VS 2
- Application
- District Heating
- Application alternative VSP
- Heating
- Cavitation factor
- 0.5
- Cavitation factor 100%
- 0.34
- Cavitation factor 25%
- 0.58
- Cavitation factor 50%
- 0.52
- Cavitation factor 75%
- 0.5
- China RoHS compliance
- Out of scope
- Connection size
- G 3/4 A
- Connection types
- External Thread
- Control ratio
- 1:50
- Description
- VS 2 PN16 15/1,6 2-way seated ext. thr
- Diameter [mm]
- 15 mm
- Differential pressure range [bar] [Max]
- 10 bar
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flow characteristic
- Linear
- Kvs values [m³/h]
- 1.6 m³/h
- Leakage through port max. [% Kvs]
- 0.05
- Media pH [Max]
- 10
- Media pH [Min]
- 7
- Media temperature [°C] [Max]
- 130 °C
- Media temperature [°C] [Min]
- 2 °C
- Medium alternative
- Glycolic water up to 30%
- Number of ports
- 2
- Permissible media
- District heating/cooling circulation water
- PN alternative VSP
- 10
- Pressure class
- PN 16
- Pressure nominal [bar]
- 16 bar
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Spindle position
- Normally open
- Stroke [mm]
- 4 mm
- Valve body material
- Dezincing free brass
- Valve cone material
- Stainless steel
- Valve size
- DN 15
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN 065F2115
- EAN 5702421510223
- VVS 461045404
