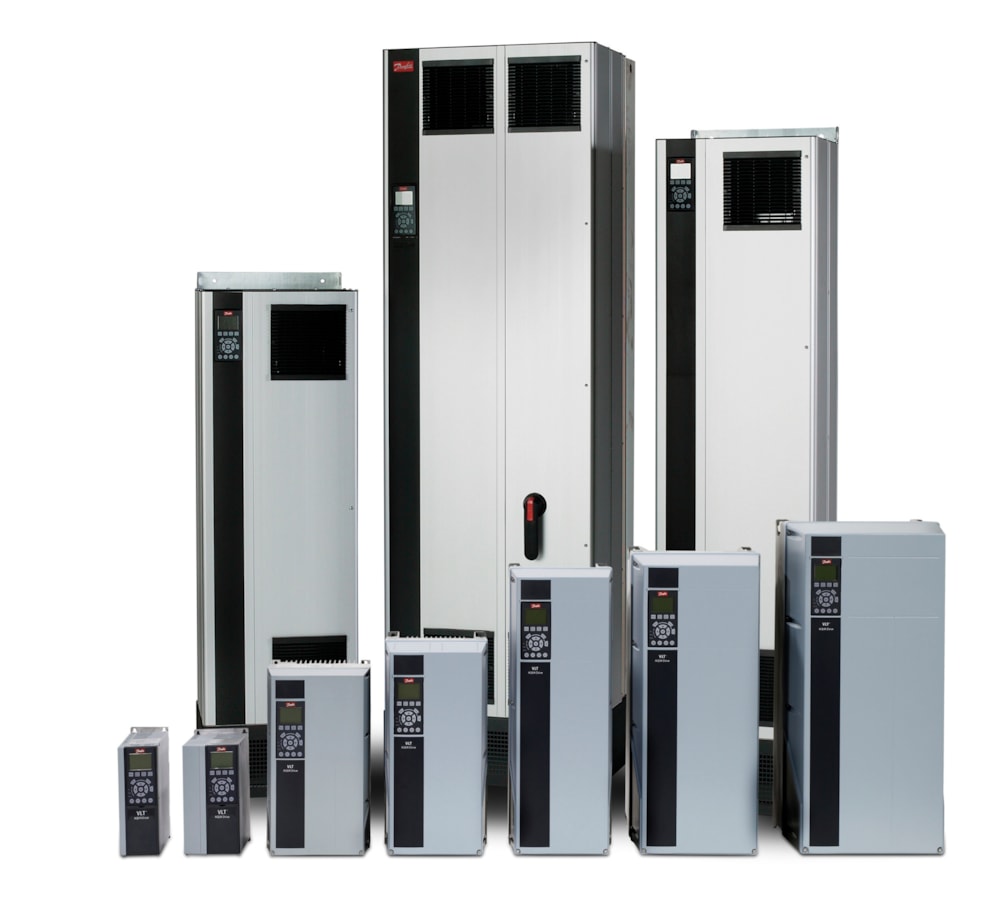

Danfoss VLT Aqua Drive FC-202 — 2,2 kW, 200-240 VAC, IP55 131X5912
Pricing
Request a quote
We reply within 24 hours
Overview
Danfoss VLT Aqua Drive FC-202 — 2,2 kW, 200-240 VAC, IP55 131X5912 is listed under Drives & Controllers / Variable Frequency Drives. Type code: FC-202P2K2T2Z55H2XGX1OXSXXXXAXBXCXXXXDX; Rated shaft output: 2,2 kW; Supply voltage: 200–240 V AC; Series: VLT Aqua Drive FC-202; Power rating: 2.2 kW; IP rating: IP55.
Technical Specifications
- Type code
- FC-202P2K2T2Z55H2XGX1OXSXXXXAXBXCXXXXDX
- Code number
- 131X5912
- Rated shaft output
- 2,2 kW
- Supply voltage
- 200–240 V AC
- Series
- VLT Aqua Drive FC-202
- Power rating
- 2.2 kW
- IP rating
- IP55
- Product Group
- FC-
- Phase
- T
- Mains Voltage
- 2
- Enclosure
- Z55
- RFI Filter
- H2
- Brake - Safe Stop
- X
- LCP
- G
- Coating PCB
- X
- Mains Option
- 1
- Adaptation A
- O
- Adaptation B
- X
- Software Release
- SXXX
- Software Language Pack
- X
- A Option
- AX
- B Option
- BX
- C0 Option MCO
- CX
- C1 Option
- X
- C Option Software
- XX
- D Option
- DX
- Frame Size
- A4
- Height [mm]
- 391,0
- Width w/ no C options [mm]
- 200,0
- Depth [mm]
- 177,0
- Depth with Option A/B [mm]
- 177,0
- Product Catalog
- NO_VIEW
- Power 150% (HO) [KW]
- 2.2
- Power 110% (NO) [KW]
- 2.2
- kVA
- 3.82
- Power Loss NO [W]
- 116
- Continuous Current (NO) [A]
- 10.6
- Intermittent Current (NO) [A]
- 11.7
- ECCN EU
- Y901
- ECCN US
- 3A999.a
- Product View (Switch)
- GLBL
Standards & Compliance
- HS Code
- 8504.40
