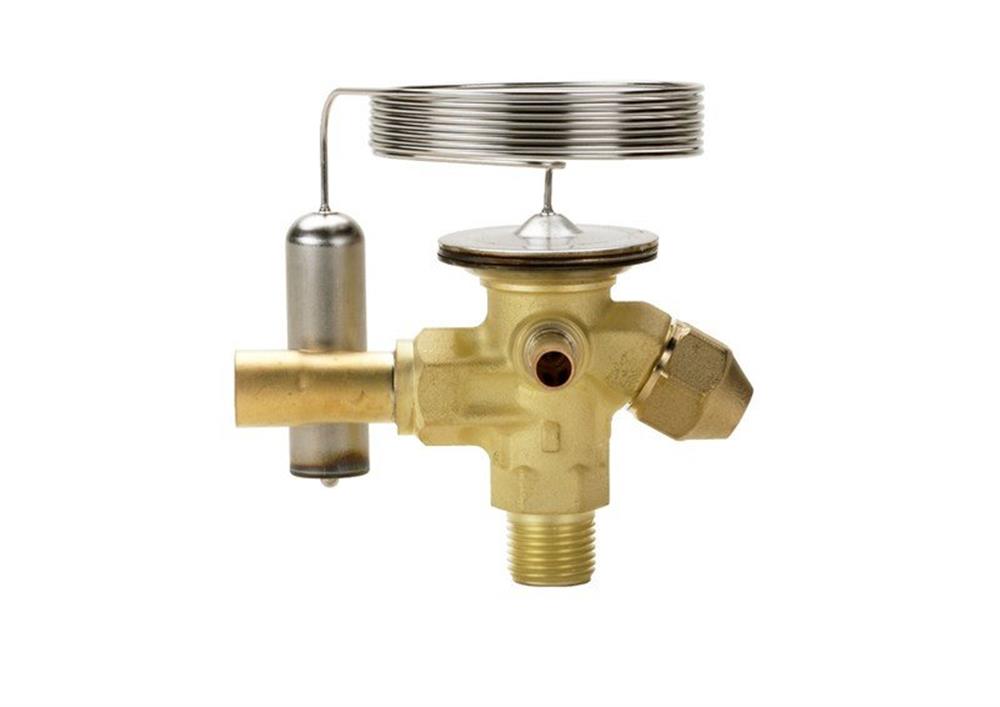

Danfoss T 2 Thermostatic expansion valve flare/solder - R455A, Intern, -40-10°C, T 2 R455A
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss T 2 Thermostatic expansion valve flare/solder. Thermostatic expansion valves (Refrigeration technology / Cooling technical components / Expansion valves). Principal data: coolant R455A, pressure compensation Internal, working temperature -40-10 °C, type designation T 2 R455A. Supplied under manufacturer part number 068Z7494, HS code 8481.80, country of origin Denmark.
Technical Specifications
- Product type
- Thermostatic expansion valves
- Product group
- Cooling technical components
- Coolant
- R455A
- Pressure compensation
- Internal
- Working temperature
- -40-10 °C
- Type designation
- T 2 R455A
- Sales unit
- Pack
- Carbon footprint (EPD)
- 2.1701 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 84818099
- HS code
- 8481.80
- Manufacturer part number
- 068Z7494
- EAN
- 5702424231132
- Net weight
- 0.272 Kilogram
- Type
- T 2
- Approval
- EAC
- Body material
- Brass
- Capillary tube length [in]
- 59 in
- Capillary tube length [mm]
- 1500 mm
- China RoHS compliance
- Yes with exemptions
- Connection Code
- (3011:X:10; 3002:X:13)
- Connection material
- Brass
- Direction
- Angleway
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Flow direction
- Single-flow
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection type
- Flare
- Inlet size [in]
- 3/8 in
- Max. Working Pressure [bar]
- 34 bar
- Max. Working Pressure [psig]
- 500 psig
- Outlet connection type
- Solder
- Outlet size [in]
- 1/2 in
- Parts included
- Bulb strap
- PED category
- Art. 4, par. 3
- Pressure equalization
- Internally equalized
- Rated cap. cond. Range N [IMP]
- OS=10.8 ºF
- Rated cap. cond. Range N [SI]
- OS=6K
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R455A
- Static Superheat (SS) [°C]
- 4 °C
- Static Superheat (SS) [°F]
- 7.2 °F
- Superheat setting
- Adjustable
- Temperature range [°C] [max]
- 10 °C
- Temperature range [°C] [min]
- -40 °C
- Temperature range [°F] [max]
- 50 °F
- Temperature range [°F] [min]
- -40 °F
Standards & Compliance
- HS Code
- 8481.80
