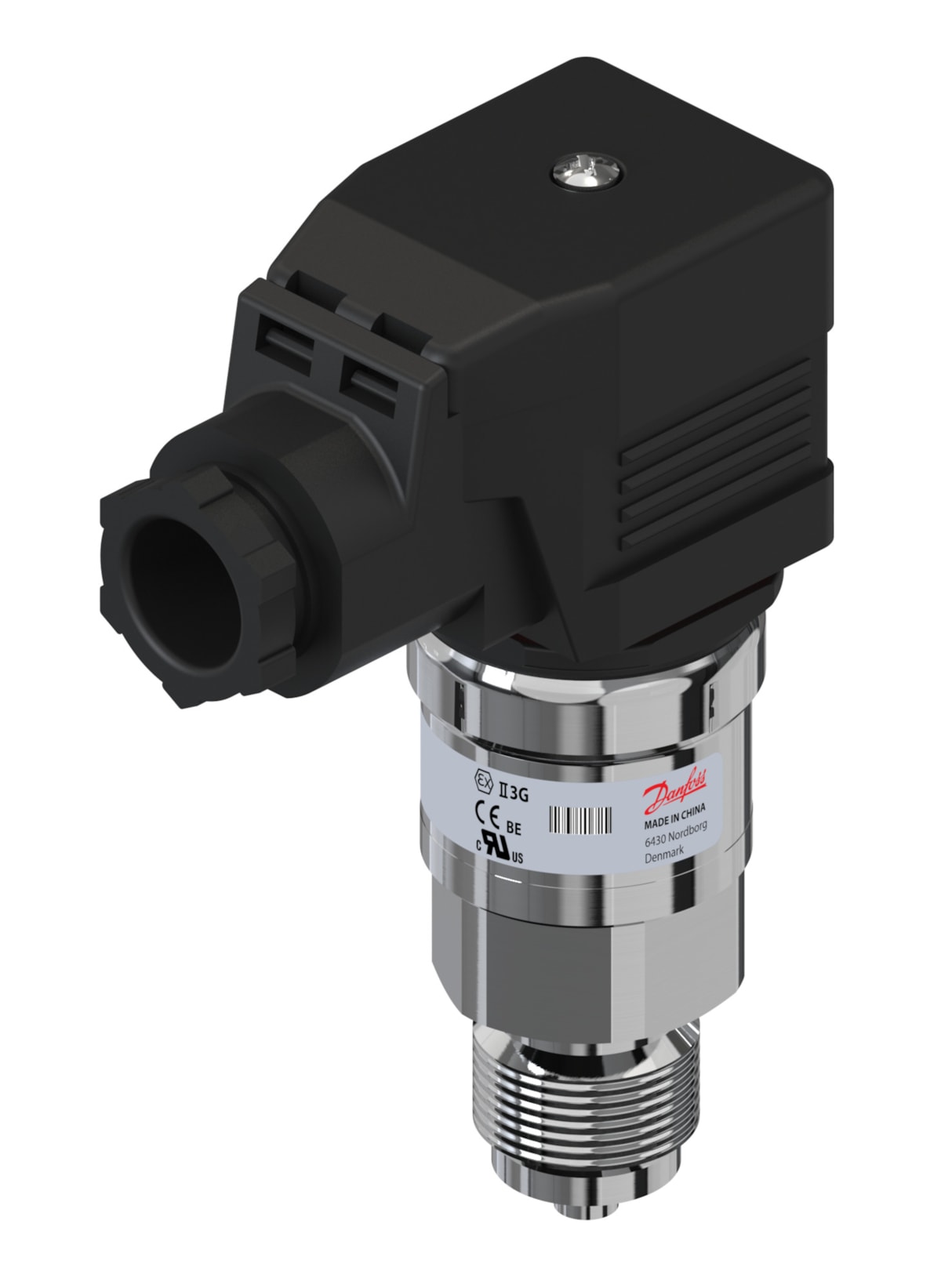

Danfoss pressure transmitter MBS 9300, R1/2" — 0/0,1bar, 4-20MA, plug, max. 125GRC
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss pressure transmitter MBS 9300, R1/2" — 0/0,1bar, 4-20MA, plug, max. 125GRC. Reference part number 064G5233.
Technical Specifications
- Code number
- 064G5233
- EAN
- 5702428945981
- Net weight
- 0.21 Kilogram
- - common
- Pin 2
- + supply
- Pin 1
- Acc. @ ref. Temp. ±FS typ. [%]
- 1.00 %
- Approval
- C UL US UL Recognized; CE
- Burst pressure [bar]
- 50.0 bar
- CE mark
- Yes
- Durability P @ 10-90% FS
- 10000000
- Electrical conn. Male/Female
- Male
- Electrical connection
- Angular connector
- Electrical connection size
- M20
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- Hysteresis and repeat.[±FS%]
- 0.10 %
- Intrinsically safe
- No
- Mount.pos. err. @ 180°[±FS%]
- 0.50 %
- Non-linearity BFSL [±FS%]
- 0.20 %
- Output signal
- Current
- Overload pressure max. [bar]
- 3.5 bar
- Pressure connection HEX [mm]
- 27.0 mm
- Pressure connection notes
- A
- Pressure connection size
- 1/2
- Pressure connection standard
- DIN 3852-E
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure reference
- Gauge (relative)
- Product group
- Sensors
- Product line
- Sensing Solutions
- Product Type
- MBS 9300
- Pulse-snubber
- No
- Recommen. mounting torque [Nm]
- 25 Nm
- Reference temperature [°C]
- 25 °C
- Specification key
- MBS 9300-B311-H3GB08-1
- TEB inside CTR ±FS [%]
- 2.00 %
- UL mark
- Yes
- Ambient temperature range [°C]
- -25 °C … 100 °C
- Compensated temp. range [°C]
- 0 °C … 80 °C
- Medium temperature range [°C]
- -20 °C … 125 °C
- Output signal [mA]
- 4 mA … 20 mA
- Pressure range [mbar]
- 0.00 mbar … 100.00 mbar
- Pressure range [psi]
- 0.00 psi … 1.45 psi
- Storage temperature range [°C]
- -40 °C … 125 °C
- Supply voltage [V] DC
- 9.00 V … 32.00 V
- Measuring range
- 0–0.1 bar
- Gross weight
- 0.23 Kilogram
- Volume
- 0.4 Liter
- Type
- MBS 9300
- Product Name Description
- Pressure transmitter
- Ambient temperature range [°C] [max]
- 100 °C
- Ambient temperature range [°C] [min]
- -25 °C
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 80 °C
- Compensated temp. range [°C] [min]
- 0 °C
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Medium temperature range [°C] [max]
- 125 °C
- Medium temperature range [°C] [min]
- -20 °C
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Pressure range [mbar] [max]
- 100 mbar
- Pressure range [mbar] [min]
- 0 mbar
- Pressure range [psi] [max]
- 1.45 psi
- Pressure range [psi] [min]
- 0 psi
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Storage temperature range [°C] [max]
- 125 °C
- Storage temperature range [°C] [min]
- -40 °C
- Storage temperature range [°F] [max]
- 257 °F
- Storage temperature range [°F] [min]
- -40 °F
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 9 V
Standards & Compliance
- HS Code
- 9026.20
Cross References
- EAN 5702428945981
Product Documentation
More from Danfoss
Danfoss
Danfoss pressure transmitter MBS 3350, 1/2" — max 125GRC, Select pressure range
116155
Danfoss
Danfoss pressure transmitter MBS 3350, 1/4" — Max. 125GRC, Select pressure range
116156
Danfoss
Danfoss pressure transmitter MBS 1250, R1/4" — Select pressure range her
116157
Danfoss
Danfoss pressure transmitter MBS 33 R1/2" — Select pressure range her.............
116158
Danfoss
Danfoss pressure transmitter MBS 3000, R1/4" — -1/1,5 bar, plug, IP65
060G3703
Danfoss

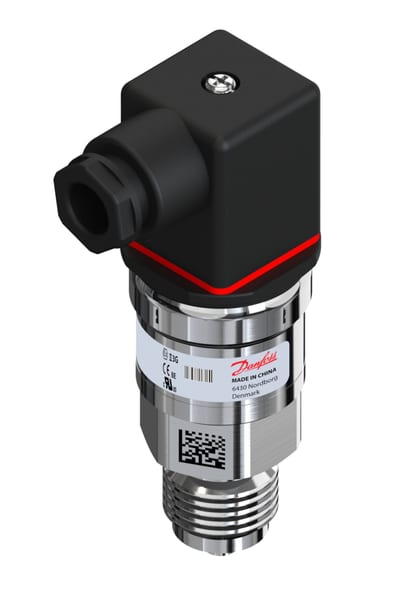

Danfoss pressure transmitter MBS 3200, R1/2" — -1/3 bar, 4-20MA, plug IP65, max 125GRC
