Danfoss

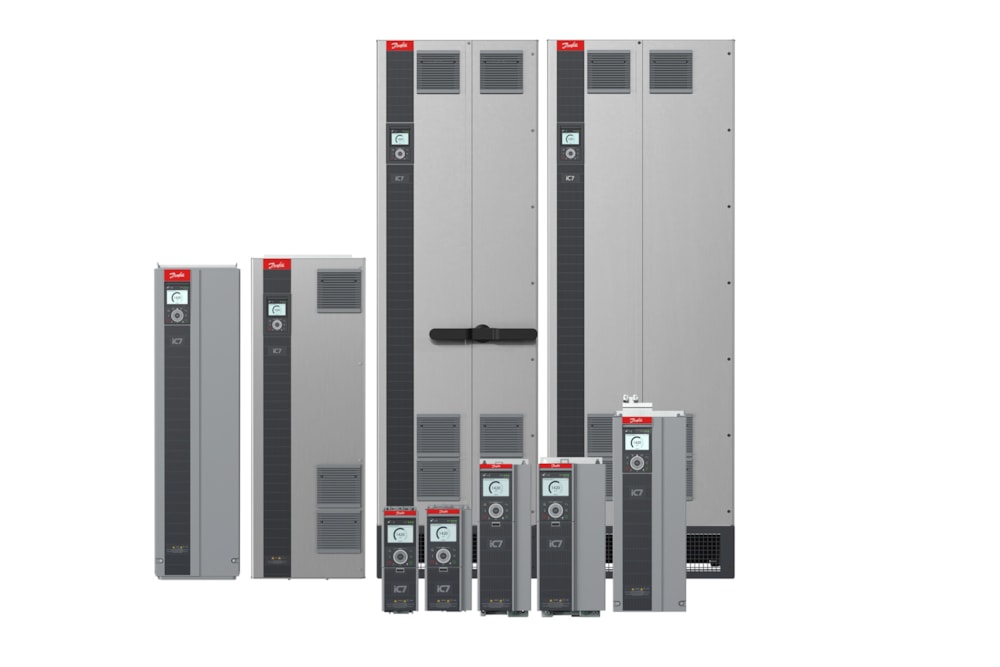

Danfoss IC7 Automation — 22 kW, 380-500 VAC, IP20

Name: Danfoss IC7 Automation — 22 kW, 380-500 VAC, IP20
Brand: Danfoss
SKU: 132X9083

Part number132X9083HS code8504.40

Drives & Controllers

Variable Frequency Drives

MOQ:1

Pricing

Request a quote

We reply within 24 hours

Request Quote

Email Datasheet

Product Description

Danfoss IC7 Automation — 22 kW, 380-500 VAC, IP20. Reference part number 132X9083.

Technical Specifications

Type code: IC7-60FA3N05-43A0E20F1+ACBC+ALDC+BAPR+BDBA+BEF1+BF20+DAAU
Code number: 132X9083
Series: iC7 Automation
Supply voltage: 380–500 V AC
Power rating: 22 kW
IP rating: IP20
Product group: IC7-60
Product series: +DAAU
Product category: FA
Product type: 3N
Mains voltage: 05
Current rating: -43A0
Protection rating: E20
EMC category: F1
Cable entry and EMC plate: +AAST
Integrated brake chopper: +ACBC
Extra environmental protection: +AGXX
Humidity protection device: +AHXX
Integrated common-mode filter: +AIXX
Mains input device: +AJXX
DC terminals: +ALDC
Touch protection: +AMXX
Heat sink access panel: +APXX
Communication interface, X1/X2: +BAPR
Communication interface, X0: +BBEL
Standard I/O: +BDBA
Functional safety: +BEF1
Control panel: +BF20
Interface board: +BISR
Option slot A: +CAX0
Option slot B: +CBXX
Option slot C: +CCX0
Option slot D: +CDX0
Option Slot E: +CEX0
Customer specific application: +DBXX
Additional drive features 1: +DD1X
Additional drive features 2: +DE2X
Additional drive features 3: +DF3X
Additional drive features 4: +DG4X
Additional drive features 5: +DH5X
High speed enabled: +DI6X
Product software ID: +ECXXX
Technical documentation: +EGIN
Customer-specific label: +EJXX
Language package: +EL01
Product specific marine cert.: +VBXX
Frame designation: FA05A
Control Board type: A5E
Input Voltage: 3x380-500V
Input frequency: 50/60Hz
Short circuit current rating: 100kA
Output frequency: 0-590Hz
Typical motor power PL (110%): 22kW(400V)/30HP(460V)
Continous current IL (1/10min): 43/40A
Overload current IL (1/10min): 47/44A
Input current LO (1/10 min): 42.7/37.3A
Ambient temp LO (1/10 min): 45°C/113°F
Typical motor power PH (150%): 22KW(400V)/30HP(460V)
Continous current IH (1/10min): 43/40A
Overload current IH (1/10min): 65/60A
Input current HO (1/10 min): 42.7/37.3A
Ambient temp HO (1/10 min): 45°C/113°F
Typical motor power PH2 (150%): 18.5kW(400V)/25HP(460V)
Continous current IH (1/5min): 38/34A
Overload current IH (1/5min): 57/51A
Input curent HO2 (1/5 min): 36/31A
Ambient temp HO2 (1/5 min): 45°C/113°F
Efficiency class-Relative loss: IE2 - 1.71%
Maximum Power Loss LO [W]: 541
Main unit Width: 165 mm / 6.5 in
Main unit Height: 399 mm / 15.7 in
Main unit Depth: 269 mm / 10.6 in
ECCN EU: Y901
ECCN US: 3A999.a
Ambient temp. normal overload: 45°C/113°F
Enclosure rating: IP20 / OPEN TYPE
High Speed Drive Warning: NONE
Input current in Normal Overlo: 42.7/37.3A
Product View (Switch): GLBL

Standards & Compliance

HS Code: 8504.40

Product Documentation

Danfoss 132X9083 — OEM Datasheet Download

application%20guide%20-%20ic7%20series%20industry.pdf Download

Document preview: Danfoss 132X9083 — OEM Datasheet
