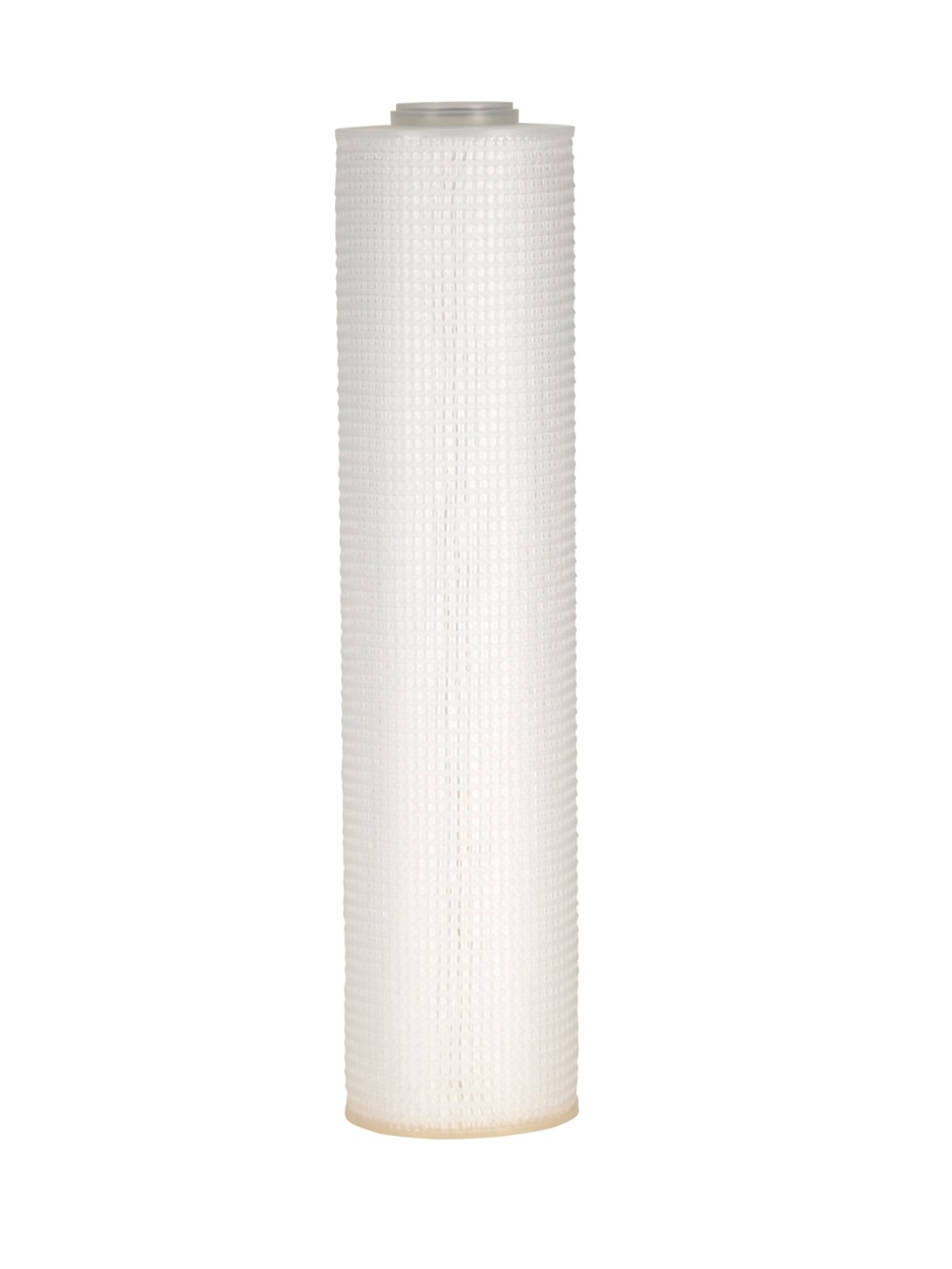

Danfoss Filter Element
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss Filter Element. Reference part number 180Z0285.
Technical Specifications
- Code number
- 180Z0285
- EAN
- 5715162682272
- Net weight
- 1.048 Kilogram
- CE mark
- No
- Description
- Filter element type 5
- Effective surface [m2]
- 2.45 m²
- Effective surface [sq.ft.]
- 26.00 ft²
- Element inner diameter [mm]
- 46.00 mm
- Element length [mm]
- 508 mm
- Element outer diameter [mm]
- 115 mm
- End sealing
- SOE
- Filtration level (Beta > 5000)
- 10 µ abs
- Fit to housing
- 180Z0082
- Materials Element
- Polypropylene
- Materials End caps
- Polypropylene
- Product description
- Filters
- Product group
- Accessories
- Product line
- High-Pressure Pumps
- Product Type
- Filter element
- Seal Material
- Buna-N
- Sealing
- Inside O-ring
- Type designation
- Filter element
- UL mark
- No
- Differential pressure at 24 °C [barg]
- 3.0 barg
- Differential pressure at 75 °F [psig]
- 44 psig
- Flow [gpm]
- 44.900 gal/min
- Flow [l/min]
- 170.00 l/min
- Flow [m³/h]
- 10.20 m³/h
- Operating temperature [°C]
- 50 °C
- Flow [gpm] [Max]
- 44.9
- Flow [l/min] [Max]
- 170
- Flow [m³/h] [Max]
- 10.2, 10 µ abs, SOE, Polypropylene
- Gross weight
- 1.213 Kilogram
- Volume
- 8.768 Liter
- Type
- Filter element
