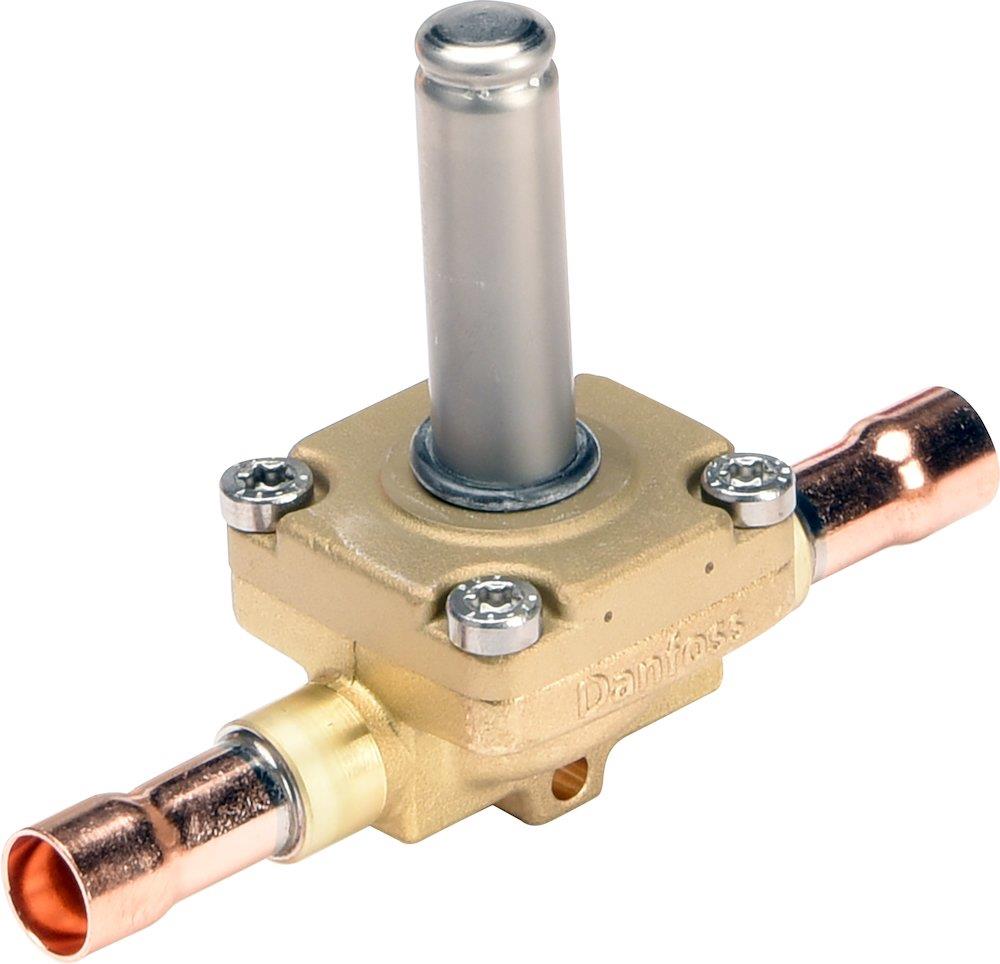

Danfoss EVR Solenoid Valve solder - 45.2bar, 5M³/h, 7/8" solder, 93kW, 70kW, 95kW, R22, R32, R134A, R290, R404A, R407A, R407C, R407F, R410A, R417A, R438A, R448A, R449A, R450A, R452A, R452B, R454A (XL40), R454C (XL20), R455A, R513A, R507, R600, R600A, R1234YF, R1234ZE, EVR 20S
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss EVR Solenoid Valve solder. Solenoid valves for refrigeration systems (Refrigeration technology / Cooling technical components). Principal data: working pressure max 45.2 bar, kv value 5 m³/h, pipe dimension 7/8" solder, cooling capacity r134a 93 kW. Supplied under manufacturer part number 032L1240, HS code 8481.80, country of origin Poland.
Technical Specifications
- Product type
- Solenoid valves for refrigeration systems
- Product group
- Cooling technical components
- Working pressure max
- 45.2 bar
- Kv value
- 5 m³/h
- Pipe dimension
- 7/8" solder
- Cooling capacity R134a
- 93 kW
- Cooling capacity R404A
- 70 kW
- Cooling capacity R407C
- 95 kW
- Coolant
- R22, R32, R134a, R290, R404A, R407A, R407C, R407F, R410A, R417A, R438A, R448A, R449A, R450A, R452A, R452B, R454A (XL40), R454C (XL20), R455A, R513A, R507, R600, R600a, R1234yf, R1234ze
- Type designation
- EVR 20S
- Sales unit
- Pack
- Carbon footprint (EPD)
- 29.7304 kg CO2e per pcs
- Country of origin
- Poland
- Customs tariff code (EU CN)
- 84818099
- HS code
- 8481.80
- Manufacturer part number
- 032L1240
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN 032L1240
Product Documentation
