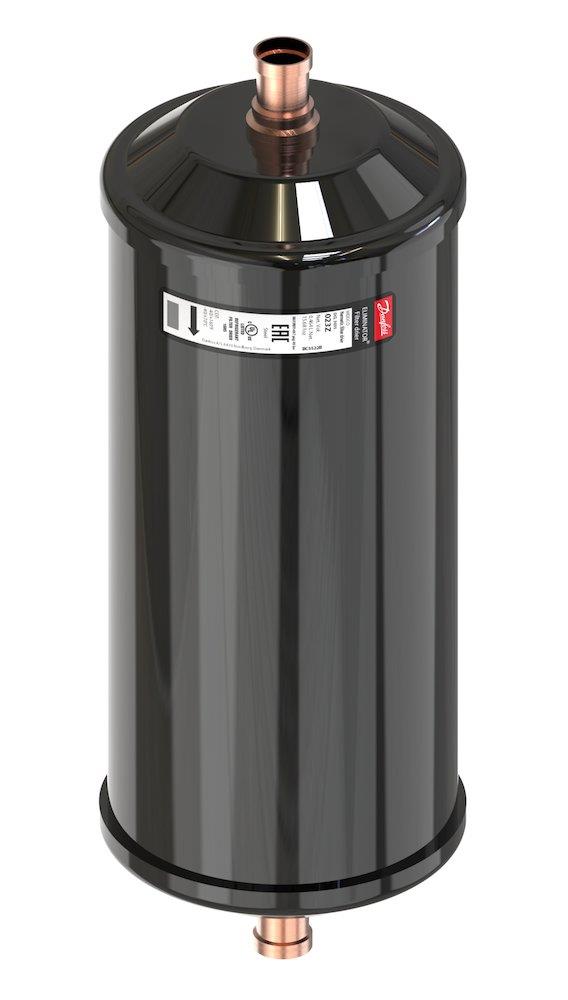

Danfoss DML Dryer Filter - Solder 5/8", DML 305S
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss DML Dryer Filter. Drying filters HFC (Refrigeration technology / Cooling technical components / Dry filters). Principal data: connection solder 5/8", type designation DML 305S. Supplied under manufacturer part number 023Z4833, EAN 5702428156363, HS code 8421.29, country of origin Mexico.
Technical Specifications
- Product type
- Drying filters HFC
- Product group
- Cooling technical components
- Connection
- solder 5/8"
- Type designation
- DML 305S
- Country of origin
- Mexico
- Customs tariff code (EU CN)
- 84212980
- HS code
- 8421.29
- Manufacturer part number
- 023Z4833
- EAN
- 5702428156363
- Net weight
- 1.294 Kilogram
- Type
- DML
- Acid capacity [g]
- 2.43 g
- Acid capacity [oz]
- 0.086 oz
- Activated alumina [%]
- 0 %
- Approval
- UL
- Body material
- Steel
- Braket
- No
- China RoHS compliance
- Yes
- Connection Code
- (3002:X:16)
- Connection material
- Steel Cu-plated
- Core
- Solid core
- Core Size code
- 30 cu.in.
- Core type
- Solid core
- Drying Cap[Drops of Water]24°C
- R134a: 1127
- Drying Cap[Drops of Water]52°C
- R134a: 1032
- EU RoHS compliance
- Yes
- Filter application
- High Moisture Capacity
- Flow capacity [kW]
- R134a: 45.4
- Flow capacity [TR]
- R134a: 12.9
- Flow direction indicator
- Label printed 1-way arrow
- Fluid Group
- 2
- Identical product
- 023Z4588
- Inlet 1 connection size [in]
- 5/8 in
- Inlet connection type
- Solder, ODF
- LiqCap Cond (ARI 710-2009)[SI]
- Delta p=0.07bar
- LiqCapCond (ARI 710-2009)[IMP]
- Delta p=1psi
- Lubricants compatibility
- Oilfree applications
- Max. Working Pressure [bar]
- 46 bar
- Max. Working Pressure [psig]
- 667 psig
- Molecular sieve [%]
- 100 %
- Net volume [foz US]
- 15.68 Fluid Ounce US
- Net volume [l]
- 0.464 L
- Oil free refrigerants
- R1234ze(E)
- Outlet 1 connection size [in]
- 5/8 in
- Outlet connection type
- Solder, ODF
- PED category
- Art. 4, par. 3
- REACH Candidate Strip substances
- No
- Refrigerants
- R1233zd(E)
- Shell volume [foz US]
- 24.42 Fluid Ounce US
- Shell volume [l]
- 0.72 L
- Solid core surface [cm2]
- 340 cm²
- Solid core surface [in2]
- 52.7 in²
- Solid core volume [cm3]
- 258 cm³
- Solid core volume [in3]
- 15.77 in³
- Temperature range [°C] [max]
- 70 °C
- Temperature range [°C] [min]
- -40 °C
- Temperature range [°F] [max]
- 160 °F
- Temperature range [°F] [min]
- -40 °F
- UL approval file name
- SA6398
- UL approved refrigerants
- R125
- UL mark
- Yes
Standards & Compliance
- HS Code
- 8421.29
Cross References
- EAN 5702428156363
- MPN 023Z4833
More from Danfoss
Danfoss

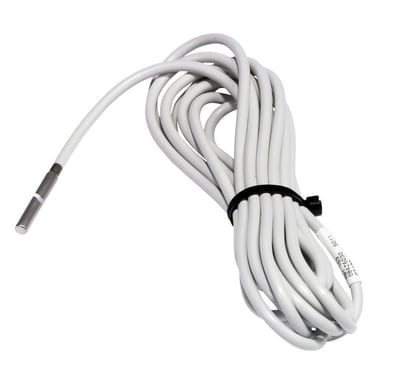

Danfoss MBT 153 Sensor - 8500mm
10247995
Danfoss

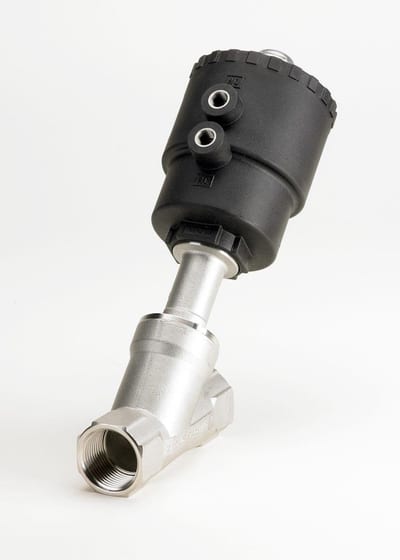

Danfoss AV210A 15B Solenoid Valve PTFE - 1/2", NO (Normally open)
042N4481
Danfoss

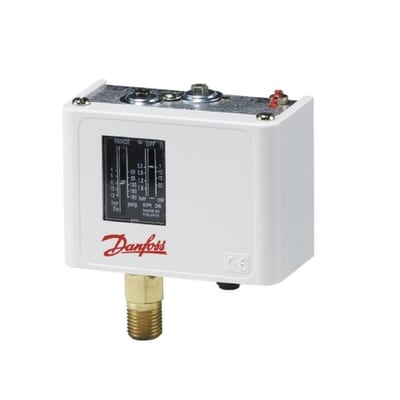

Danfoss Pressure Switch - 10190302
Danfoss

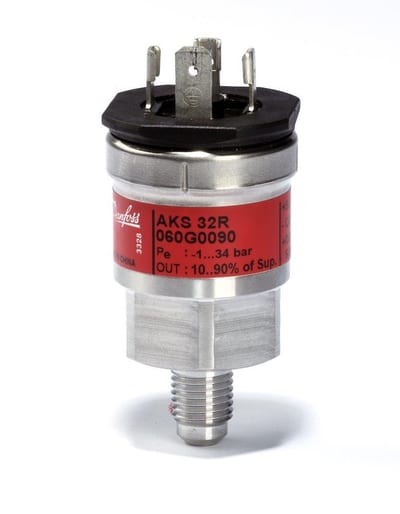

Danfoss AKS Pressure Transmitter - 1-12bar, 1/4" flare, 10-90 %, 33bar, AKS 32R
060G1036
Danfoss

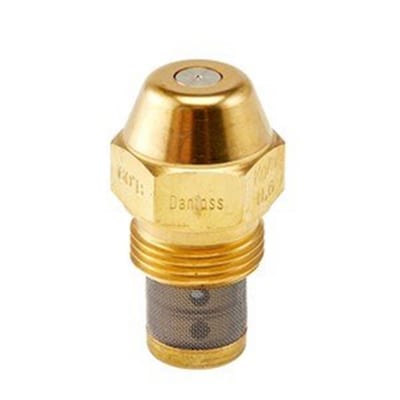

Danfoss B Oil nozzle - 33.13KG/h, 8.5US gal/h, 80gr, B
030B0233
Danfoss

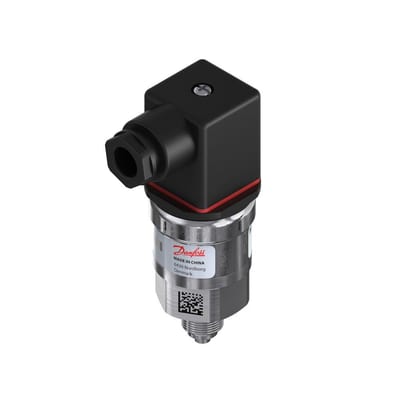

Danfoss MBS 3000 Pressure Transmitter - 1/4", 0-40bar
060G1105
Danfoss

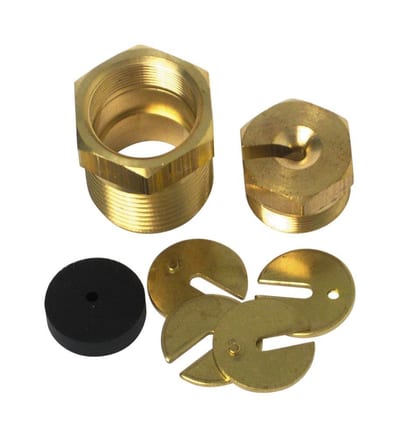

Danfoss Stuffing Box - AVTB
003N0155
Danfoss

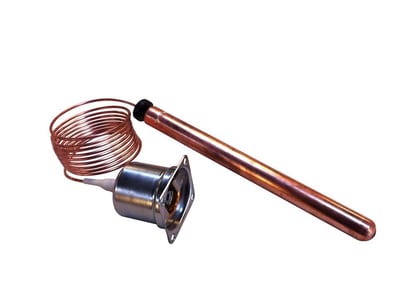

Danfoss Service Element - AVTA, AVTB
