Product Description

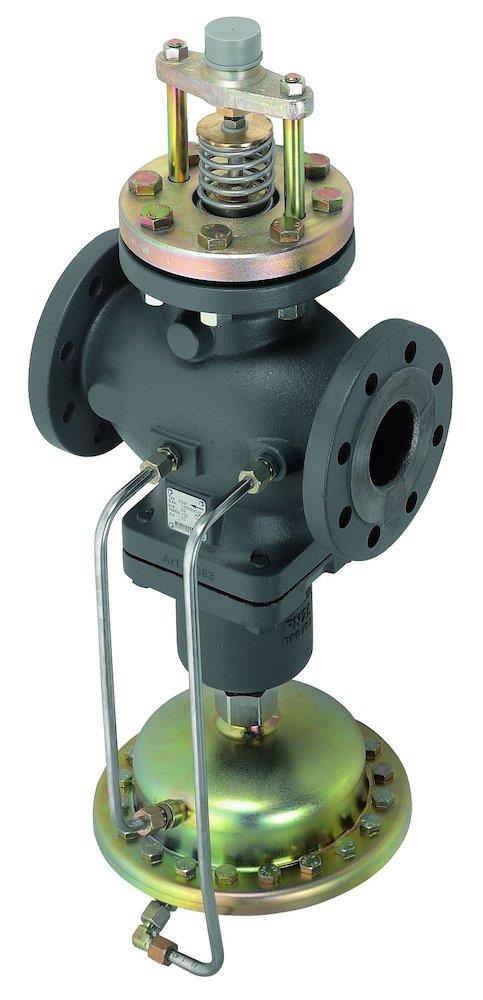

Danfoss AFQM Flow Limiter. Control valves and accessories (Plumbing / Heat / Valves for heating and cooling systems). Principal data: dn dimension 65, connection Flange/flange, kvs value 50 m³/h. Supplied under manufacturer part number 003G6063, EAN 5710104501475, HS code 8481.80, country of origin Slovenia.
Technical Specifications
- Product type
- Control valves and accessories
- Product group
- Heat
- DN dimension
- 65
- Connection
- Flange/flange
- Kvs value
- 50 m³/h
- Media temperature min
- 2 °C
- Media temperature max
- 150 °C
- Working pressure max
- 16 bar
- Flow
- 40000
- Flow min
- 5600
- Flow max
- 40000
- Material
- grey cast iron (EN-GJL-250)(GG-25)
- Carbon footprint (EPD)
- 274.0728 kg CO2e per pcs
- Country of origin
- Slovenia
- Customs tariff code (EU CN)
- 84818059
- HS code
- 8481.80
- Manufacturer part number
- 003G6063
- VVS number
- 461047413
- EAN
- 5710104501475
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN 003G6063
- EAN 5710104501475
- VVS 461047413
