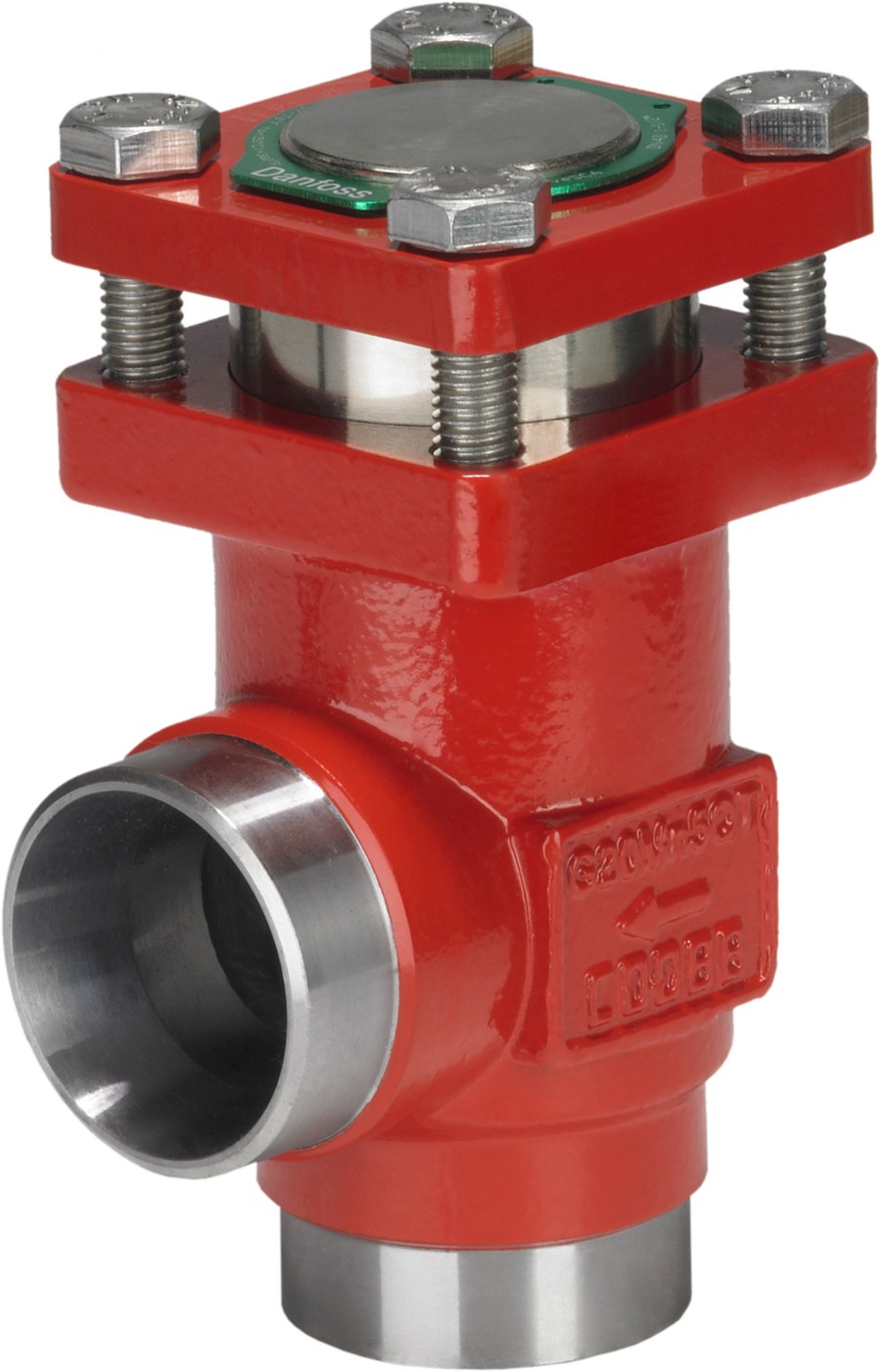

Danfoss CHV-X 40 angleway check valve, 40 mm (1 1/2 in) butt weld ASME B 36.10M Schedule 80, 52 bar, steel

Danfoss CHV-X 40 check (non-return) valve for the SVL Flexline industrial-refrigeration range, code 148B5637. The CHV-X permits refrigerant flow in one direction only and closes to prevent back-flow toward pumps, compressors and vessels. The cold-resistant steel housing carries a spring-loaded, guided cone with a V-port profile that throttles below roughly 25% lift to suppress valve chatter and noise. This SKU is the angleway body with 40 mm (1 1/2 in) butt-weld connections to ASME B 36.10M Schedule 80. Flow coefficient Kv 30 m3/h (Cv 34.8 gal/min); minimum opening differential pressure 0.04 bar (0.62 psi); flow direction marked by an embossed 1-way arrow. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. Built on the SVL Flexline modular platform and serviceable with SVL Flexline spare parts.

Type

CHV-X 40 (SVL Flexline check valve) Code number: 148B5637 Series: CHV-X (SVL Flexline) Function: Check (non-return) valve Nominal size: 40 mm (1 1/2 in) Flow direction: Angleway Connection: Butt weld (ASME B 36.10M Schedule 80) Housing material: Steel (cold-resistant) Kv value: 30 m3/h (Cv 34.8 gal/min) minimum opening differential pressure: 0.04 bar (0.62 psi) Flow direction indicator: Embossed 1-way arrow Maximum working pressure: 52 bar (754 psig) Media temperature range: -60 to 150 C (-76 to 302 F) Applicable media: HCFC, HFC, R717 (ammonia), R744 (CO2) Fluid groups: 1, 2 Conformity assessment: PED Category II Approvals: CE, PED Category II Compliance: EU RoHS, China RoHS Net weight: 2.68 kg EAN: 5702428477253

Size / Series

40 mm

Material

Steel

Pressure Rating

52 bar

Temperature Range

-60 to 150 C

HS Code

8481.30
