Danfoss CHV-X 20 angleway check valve, 20 mm (3/4 in) butt weld EN 10220, 52 bar, steel (code 148B5336)
Danfoss · HVAC & Refrigeration · Check Valves

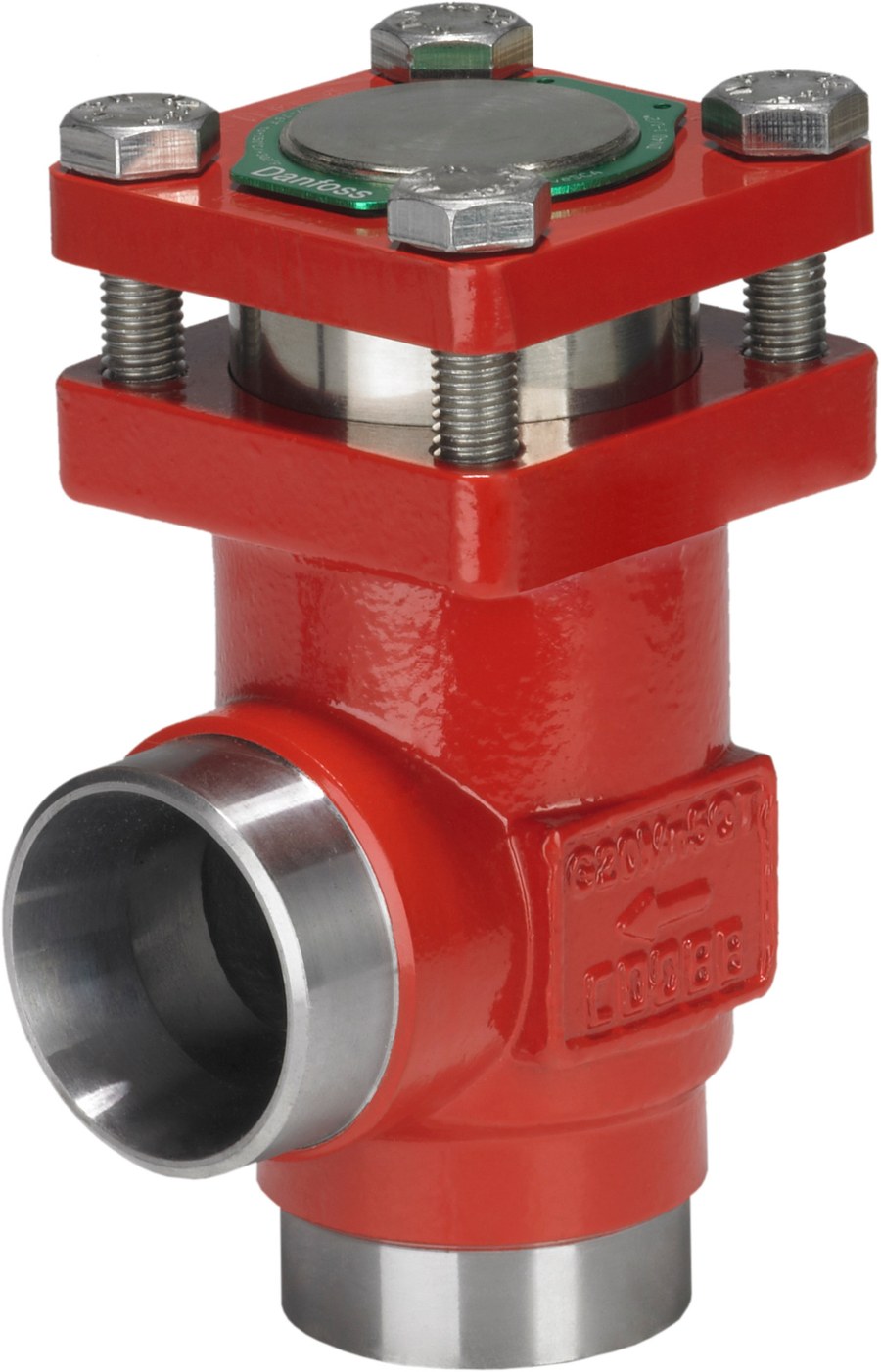

Danfoss CHV-X 20 check (non-return) valve for the SVL Flexline industrial-refrigeration range, code 148B5336. The CHV-X permits refrigerant flow in one direction only and closes to prevent back-flow toward pumps, compressors and vessels. The cold-resistant steel housing carries a spring-loaded, guided cone with a V-port profile that throttles below roughly 25% lift to suppress valve chatter and noise. This SKU is the angleway body with 20 mm (3/4 in) butt-weld connections to EN 10220. Flow coefficient Kv 10 m3/h (Cv 11.6 gal/min); minimum opening differential pressure 0.04 bar (0.62 psi); flow direction marked by an embossed 1-way arrow. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. Built on the SVL Flexline modular platform and serviceable with SVL Flexline spare parts.
Specifications
- Part number
- 148B5336
- HS code
- 8481.30
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard size
- 20 mm
Compatibility
Danfoss SVL Flexline CHV-X check valve. Select by nominal size (20 mm / 3/4 in) and connection standard (EN 10220 butt weld). EN 10220 (DIN) and ASME B 36.10M weld-end preparations are not interchangeable — confirm the mating pipe schedule before ordering. The CHV-X is check-only; where an integral hand shut-off is also required, use the SCA-X stop/check valve of the same size. Mount with the embossed arrow in the direction of intended flow.
