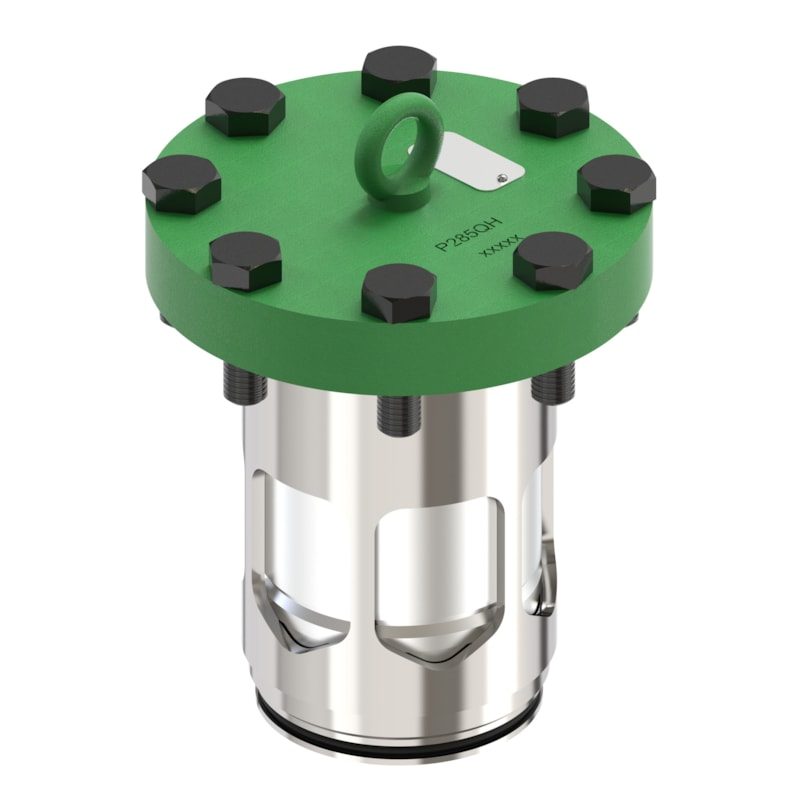

Danfoss CHV-140B 100 stop/check function module (Top Complete), SVL Flexline, 140 bar CO2 (code 148B6878)
Danfoss · HVAC & Refrigeration · Check Valves
Danfoss CHV-140B 100 function module (Top Complete) for the 140 bar (2030 psig) SVL Flexline range for industrial R744 (CO2) sub- and trans-critical refrigeration, code 148B6878. The function module is the complete top part that gives an SVL-140B multifunction valve body its check-valve duty: it fits SVL-140B 100 bodies and can be exchanged without cutting the body out of the line. As a check (non-return) function it opens with forward flow and closes against reverse flow to prevent back-flow of refrigerant. Maximum working pressure 140 bar (2030 psig); media temperature range -40 to 150 C (-40 to 302 F). Supplied as a module only — the mating SVL-140B body (with the required connection and direction) is ordered separately.
Specifications
- Part number
- 148B6878
- HS code
- 8481.90
- Material
- Steel
- Pressure rating
- 140 bar
- Temperature range
- -40 to 150 C
Compatibility
Danfoss CHV-140B Flexline stop/check function module (Top Complete). It fits SVL-140B 100 multifunction valve bodies and is exchanged without cutting the body from the line. Select the module by the body size it serves; the connection type and direction are set by the SVL-140B body, not by the module. The 140 bar CO2 range is distinct from the 52/65 bar CHV/CHV-X family and its parts are not interchangeable.
Approvals
