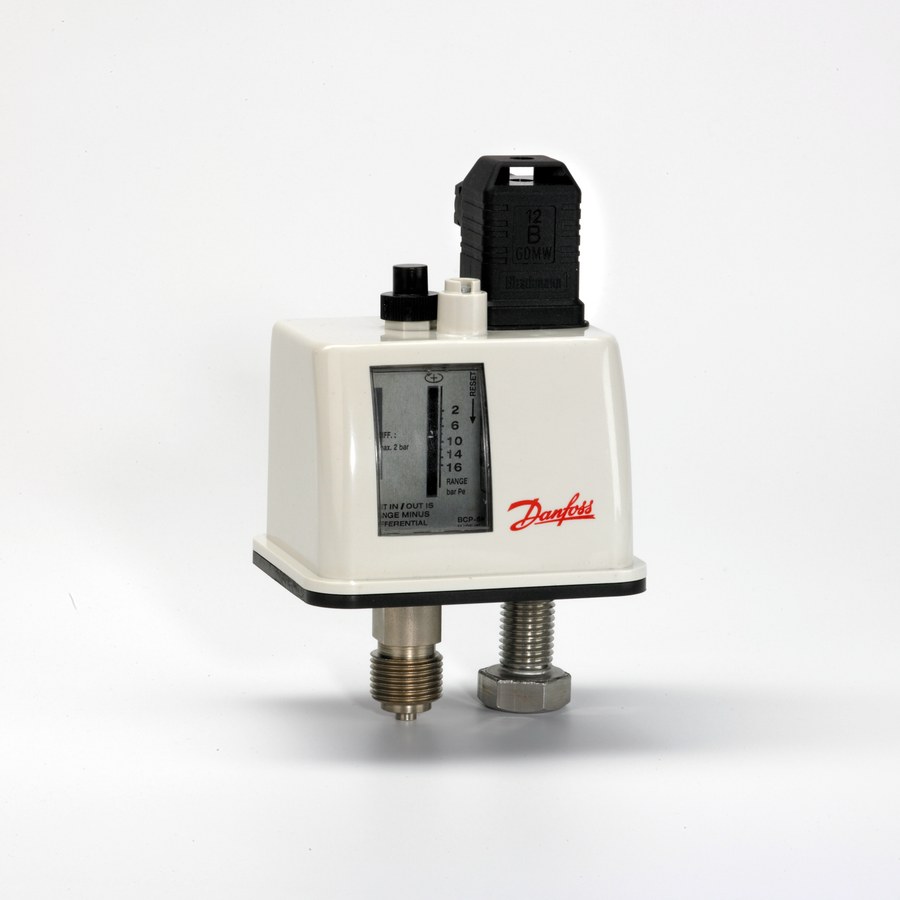

Danfoss BCP3L low-pressure safety limiter, 0 bar to 6 bar, SPDT, manual (min) reset, G½A
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss BCP3L low-pressure safety limiter for steam and hot-water boilers, genuine OEM code number 017B0062. Dedicated pressure switch for safety and pressure monitoring of boiler plant; fail-safe dual-bellows sensing element gives premature cut-out on a fault. Regulation (setting) range 0 bar to 6 bar (Pe), differential fixed 0.4 bar. Single-pole changeover (SPDT) snap-action microswitch with manual (min) reset. Locks out on falling pressure and requires a deliberate manual reset (by tool) once the fault is cleared — the min-reset safety-limiter function for low-pressure/low-water protection of steam and hot-water boilers. G½A male pressure connection (ISO 228-1); DIN 43650-A / EN 175301-803 plug, Pg 11; IP65 enclosure. Media steam, water or air; media temperature up to 120 °C (fit a water-filled siphon above 120 °C); ambient -20 °C to 70 °C. Max. working pressure 16 bar (230 psig), test 17.6 bar, burst 24 bar. Fail-safe to SIL 2 (IEC 61508). PED 2014/68/EU category IV safety equipment, TÜV component-tested (test basis EN 12952-11 / EN 12953-9). EAN 5702423248186.
Technical Specifications
- Brand
- Danfoss
- Part number (code number)
- 017B0062
- Type designation
- BCP3L
- Product
- BCP boiler pressure switch (low-pressure safety limiter)
- Category
- Sensors & Instrumentation — Pressure Switches
- Application
- safety and pressure monitoring of steam and hot-water boilers
- Sensing element
- fail-safe dual bellows
- Regulation (setting) range
- 0 bar to 6 bar (Pe)
- Differential
- fixed 0.4 bar
- Reset
- manual (min) reset
- Contact system
- SPDT (single-pole changeover), gold-plated, snap-action microswitch
- Contact rating
- AC15=1 A, 250 V AC1=6 A, 250 V DC13=10 W, 250 V
- Pressure connection
- G½A male (ISO 228-1)
- Electrical connection
- DIN 43650-A / EN 175301-803 plug, Pg 11
- Electrical spec. standard
- EN 60947-4/-5
- Action type (EN 60730)
- BCPH/BCPL — 2BDF
- Media
- steam, water, air
- Media temperature
- up to 120 °C (water-filled siphon required above 120 °C)
- Ambient temperature
- -20 °C to 70 °C
- Max. working pressure
- 16 bar (230 psig)
- Max. test pressure (Pe)
- 17.6 bar
- Burst pressure
- 24 bar
- Enclosure rating
- IP65 (EN 60529)
- Materials in contact with media
- Stainless steel 1.4306 (X2CrNi19-11) dual bellows; nickel-plated free-cutting steel pressure connector
- Functional safety
- SIL 2 (IEC 61508:2010)
- PED
- 2014/68/EU category IV safety equipment (test basis EN 12952-11 / EN 12953-9)
- EAN
- 5702423248186
- HS code
- 9032.20
Standards & Compliance
- Material
- Stainless steel 1.4306 (X2CrNi19-11) dual bellows; nickel-plated free-cutting steel pressure connector
- Thread Standard
- G½A male (ISO 228-1)
- Pressure Rating
- max. working pressure 16 bar (230 psig); test 17.6 bar; burst 24 bar
- Temperature Range
- media up to 120 °C; ambient -20 °C to 70 °C
- IP Rating
- IP65
- HS Code
- 9032.20
