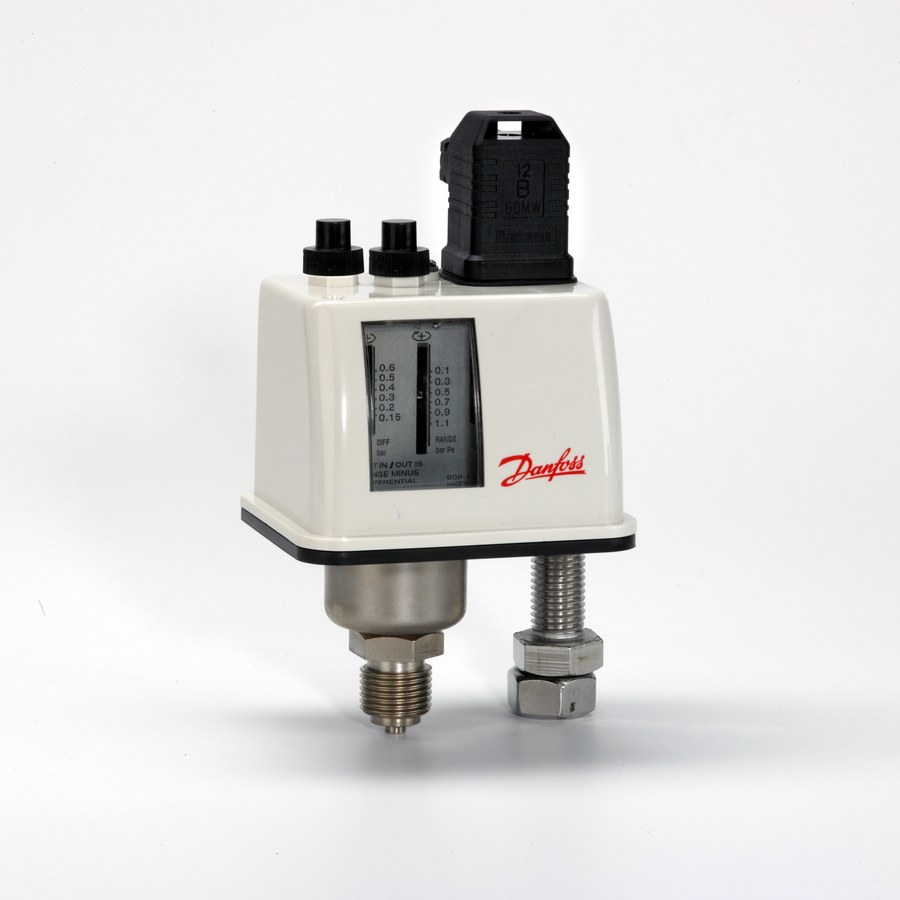

Danfoss BCP1 boiler pressure control, 0.1 bar to 1.1 bar, SPDT, automatic reset, G½A
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss BCP1 boiler pressure control for steam and hot-water boilers, genuine OEM code number 017B0002. Dedicated pressure switch for safety and pressure monitoring of boiler plant; fail-safe dual-bellows sensing element gives premature cut-out on a fault. Regulation (setting) range 0.1 bar to 1.1 bar (Pe), differential 0.15 bar to 0.6 bar (adjustable). Single-pole changeover (SPDT) snap-action microswitch with automatic reset. Serves as the operating pressure control / cut-out for steam and hot-water boilers, restoring the circuit automatically once pressure returns within the differential. G½A male pressure connection (ISO 228-1); DIN 43650-A / EN 175301-803 plug, Pg 11; IP65 enclosure. Media steam, water or air; media temperature up to 120 °C (fit a water-filled siphon above 120 °C); ambient -20 °C to 70 °C. Max. working pressure 6 bar (87 psig), test 6.6 bar, burst 9 bar. Fail-safe to SIL 2 (IEC 61508). PED 2014/68/EU category IV safety equipment, TÜV component-tested (test basis EN 12952-11 / EN 12953-9). EAN 5702423248032.
Technical Specifications
- Brand
- Danfoss
- Part number (code number)
- 017B0002
- Type designation
- BCP1
- Product
- BCP boiler pressure switch (boiler pressure control)
- Category
- Sensors & Instrumentation — Pressure Switches
- Application
- safety and pressure monitoring of steam and hot-water boilers
- Sensing element
- fail-safe dual bellows
- Regulation (setting) range
- 0.1 bar to 1.1 bar (Pe)
- Differential
- 0.15 bar to 0.6 bar (adjustable)
- Reset
- automatic reset
- Contact system
- SPDT (single-pole changeover), gold-plated, snap-action microswitch
- Contact rating
- AC15=1 A, 250 V AC1=6 A, 250 V DC13=10 W, 250 V
- Pressure connection
- G½A male (ISO 228-1)
- Electrical connection
- DIN 43650-A / EN 175301-803 plug, Pg 11
- Electrical spec. standard
- EN 60947-4/-5
- Action type (EN 60730)
- BCP — 2B
- Media
- steam, water, air
- Media temperature
- up to 120 °C (water-filled siphon required above 120 °C)
- Ambient temperature
- -20 °C to 70 °C
- Max. working pressure
- 6 bar (87 psig)
- Max. test pressure (Pe)
- 6.6 bar
- Burst pressure
- 9 bar
- Enclosure rating
- IP65 (EN 60529)
- Materials in contact with media
- Stainless steel 1.4306 (X2CrNi19-11) dual bellows; nickel-plated free-cutting steel pressure connector
- Functional safety
- SIL 2 (IEC 61508:2010)
- PED
- 2014/68/EU category IV safety equipment (test basis EN 12952-11 / EN 12953-9)
- EAN
- 5702423248032
- HS code
- 9032.20
Standards & Compliance
- Material
- Stainless steel 1.4306 (X2CrNi19-11) dual bellows; nickel-plated free-cutting steel pressure connector
- Thread Standard
- G½A male (ISO 228-1)
- Pressure Rating
- max. working pressure 6 bar (87 psig); test 6.6 bar; burst 9 bar
- Temperature Range
- media up to 120 °C; ambient -20 °C to 70 °C
- IP Rating
- IP65
- HS Code
- 9032.20
