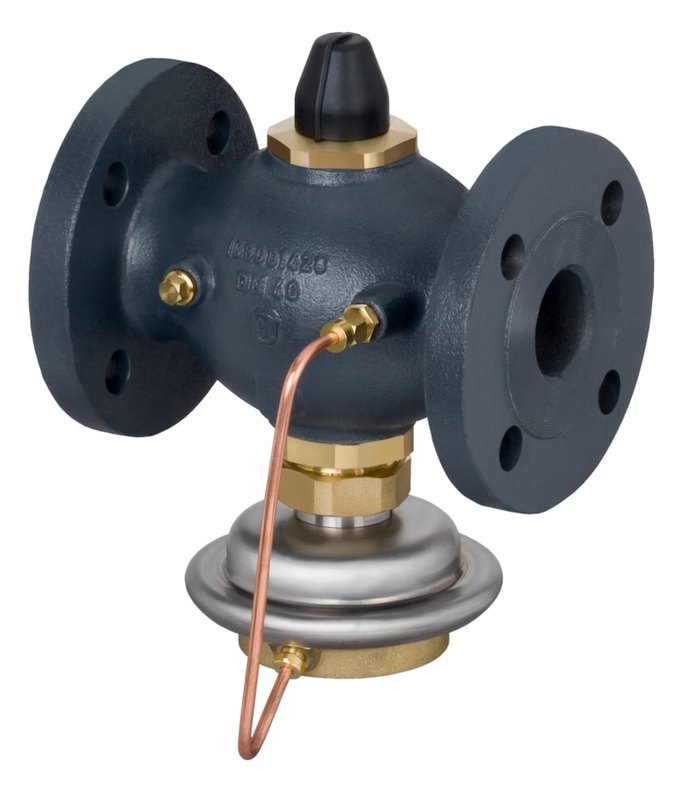

Danfoss AVQ flow controller, PN 25, DN 32, flow range 0.4–10 m³/h, Kvs 12.5 m³/h, flanged
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AVQ (003H6730) — self-acting flow controller, PN 25, DN 32, for district heating and cooling systems. The AVQ is a self-acting flow controller for district heating and cooling systems. It holds the flow rate constant and closes when the set maximum flow is exceeded. It has a control valve with an adjustable flow restrictor and an actuator with one control diaphragm; the valve and actuator are delivered assembled with the impulse tube fitted. Flow range 0.4–10 m³/h; flow-restrictor differential pressure 0.2 bar; Kvs 12.5 m³/h. Maximum differential-pressure range 16 bar; media temperature 2–150 °C; cavitation factor z ≥ 0.6; seat leakage 0.05 % Kvs (IEC 60534). Valve body Ductile iron EN-GJS-400-18-LT (GGG 40.3); valve cone Dezincing free brass CuZn36Pb2As; seat Stainless steel, mat. No. 1.4571; control diaphragm EPDM. Connection Flange (EN 1092-2). Mounting version Free. Permissible media: District heating/cooling circulation water (Glycolic water up to 30%), pH 7–10. OEM P/N 003H6730. EAN 5702421542514. Technical data quoted verbatim from store.danfoss.com (code 003H6730) and the Danfoss AVQ data sheet.
Technical Specifications
- Code number
- 003H6730
- Type
- AVQ
- Product group
- Pressure and flow controllers
- Function
- Self-acting flow controller (closes when set max. flow is exceeded)
- Valve size
- DN 32
- Pressure class
- PN 25
- Connection
- Flange (EN 1092-2)
- Kvs value
- 12.5 m³/h
- Flow rate range
- 0.4 - 10 m³/h
- Flow restrictor differential pressure (Δpb)
- 0.2 bar
- Max. differential pressure range
- 16 bar
- Media temperature
- 2 - 150 °C
- Media pH
- 7 - 10
- Cavitation factor z
- ≥ 0.6
- Seat leakage rate
- 0.05 % Kvs (IEC 60534)
- Mounting version
- Free
- Stem position
- Normally open
- Permissible media
- District heating/cooling circulation water (Glycolic water up to 30%)
- Valve body material
- Ductile iron EN-GJS-400-18-LT (GGG 40.3)
- Valve cone material
- Dezincing free brass CuZn36Pb2As
- Valve seat material
- Stainless steel, mat. No. 1.4571
- Actuator diaphragm
- EPDM
- EU RoHS compliance
- Yes with exemptions (6(c))
- REACH Candidate List substance
- Lead (CAS no. 7439-92-1)
- China RoHS
- Out of scope
- Net weight
- 9.91 kg
- Gross weight
- 10.23 kg
- EAN
- 5702421542514
Standards & Compliance
- Material
- Valve body Ductile iron EN-GJS-400-18-LT (GGG 40.3); valve cone Dezincing free brass CuZn36Pb2As; valve seat Stainless steel, mat. No. 1.4571; control diaphragm EPDM
- Pressure Rating
- PN 25 (max. differential-pressure range 16 bar)
- Temperature Range
- 2 to 150 °C (district heating/cooling water)
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss AVQ for DN 32 district-heating/cooling flow control at PN 25. Set the maximum flow within 0.4–10 m³/h using the adjustable flow restrictor (Kvs 12.5 m³/h). Confirm the connection (Flange (EN 1092-2)) and pressure class (PN 25) match the pipework; order the matching tailpiece/union-nut set separately. Maximum differential-pressure range 16 bar, media temperature up to 150 °C.
