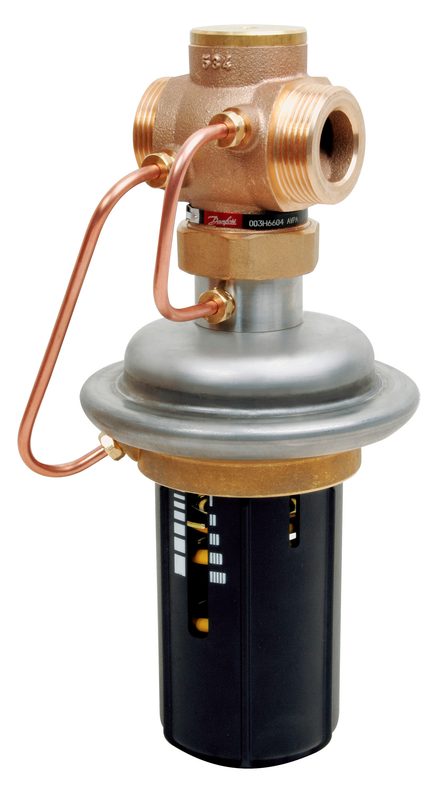

Danfoss AVPA differential pressure relief controller, PN 16, DN 15, 0.2–1 bar adjustable, Kvs 4 m³/h, external thread G ¾ A
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AVPA (003H6596) — self-acting differential pressure relief controller, PN 16, DN 15, for district heating and cooling systems. The AVPA is a self-acting differential pressure relief controller; it is normally closed and opens on rising differential pressure, relieving (limiting) the differential pressure across the controlled circuit. It has a control valve, an actuator with one control diaphragm and a spring for the differential-pressure setting. Differential-pressure setting 0.2–1 bar adjustable; Kvs 4 m³/h. Maximum differential-pressure range 12 bar; media temperature 2–150 °C; cavitation factor z ≥ 0.6; seat leakage 0.02 % Kvs (IEC 60534). Valve body Red bronze CuSn5ZnPb (Rg5); valve cone Dezincing free brass CuZn36Pb2As; seat Stainless steel, mat. 1.4571; control diaphragm and DP sealing EPDM. Connection External thread G ¾ A (ISO 228/1), via tailpieces. Mounting version Bypass. Permissible media: District heating/cooling circulation water (glycolic water up to 30%). OEM P/N 003H6596. Technical data quoted verbatim from store.danfoss.com (code 003H6596). 1.4571; control diaphragm and DP sealing EPDM; Pressure rating: PN 16 (max. differential-pressure range 12 bar); Temperature range: 2 to 150 °C (district heating/cooling water); HS code: 8481.80. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants. No.
Technical Specifications
- Code number
- 003H6596
- Type
- AVPA
- Product group
- Pressure and flow controllers (differential pressure relief controller)
- Function
- Self-acting differential pressure relief controller (opens on rising differential pressure)
- Valve size
- DN 15
- Pressure class
- PN 16
- Connection
- External thread G ¾ A (ISO 228/1), via tailpieces
- Kvs value
- 4 m³/h
- Differential-pressure setting
- 0.2 - 1 bar (adjustable, factory range)
- Max. differential pressure range
- 12 bar
- Media temperature
- 2 - 150 °C
- Cavitation factor z
- ≥ 0.6
- Seat leakage rate
- 0.02 % Kvs (IEC 60534)
- Mounting version
- Bypass
- Permissible media
- District heating/cooling circulation water (Glycolic water up to 30%)
- Valve body material
- Red bronze CuSn5ZnPb (Rg5)
- Valve cone material
- Dezincing free brass CuZn36Pb2As
- Valve seat material
- Stainless steel, mat. No. 1.4571
- Diaphragm / DP sealing
- EPDM
- EU RoHS compliance
- Out of scope
- REACH Candidate List substance
- Lead (CAS no. 7439-92-1)
- China RoHS
- Out of scope
- Net weight
- 2.06 kg
- Gross weight
- 2.06 kg
- EAN
- 5702421541159
Standards & Compliance
- Material
- Valve body Red bronze CuSn5ZnPb (Rg5); valve cone Dezincing free brass CuZn36Pb2As; valve seat Stainless steel, mat. No. 1.4571; control diaphragm and DP sealing EPDM
- Pressure Rating
- PN 16 (max. differential-pressure range 12 bar)
- Temperature Range
- 2 to 150 °C (district heating/cooling water)
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss AVPA for DN 15 district-heating/cooling circuits at PN 16. Set the differential-pressure setpoint within 0.2–1 bar. Confirm the connection (External thread G ¾ A (ISO 228/1), via tailpieces) and pressure class (PN 16) match the pipework; order the matching tailpiece/union-nut set and impulse tube separately. Maximum differential-pressure range 12 bar, media temperature up to 150 °C.
