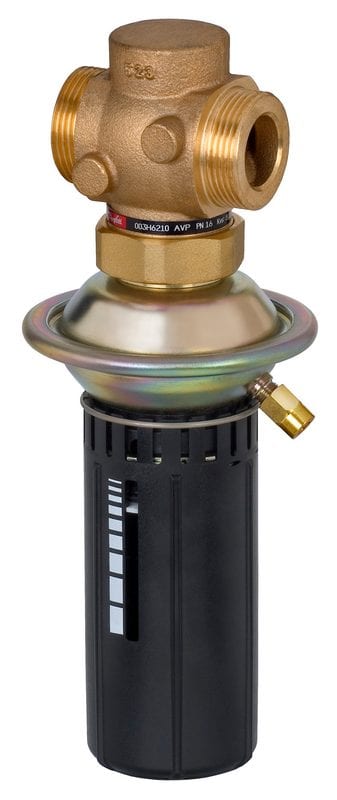

Danfoss AVP differential pressure controller, PN 25, DN 15, kVS 2.5 m³/h, Δp 0.3 – 2 bar adjustable, external thread G 3/4 A, return mounting

Danfoss AVP (003H6294) — self-acting differential pressure controller, PN 25, DN 15, for mounting in the return pipe, for district heating and central heating systems. The AVP closes on rising differential pressure, holding a stable differential pressure across the controlled circuit so that connected control valves keep their authority. It consists of a control valve and an actuator with one control diaphragm and a handle for differential-pressure setting. Unlike the AVPB, the AVP is a differential-pressure controller only (no integrated flow limiter). kVS 2.5 m³/h; differential-pressure setting range 0.3 – 2 bar, adjustable via handle. Maximum differential pressure 20 bar; medium temperature 2–150 °C; leakage 0.02% of kVS (IEC 534). Valve body red bronze CuSn5ZnPb (Rg5), valve seat stainless steel 1.4571, valve cone dezincing free brass CuZn36Pb2As, control diaphragm EPDM. Connection external thread G 3/4 A (ISO 228/1), via tailpieces (ordered separately). Media: circulation water / glycolic water up to 30% (pH 7–10). OEM P/N 003H6294, EAN 5702421538234. Technical data quoted verbatim from the Danfoss AVP PN 25 (VD.55.W6.02) data sheet and store.danfoss.com (code 003H6294). differential pressure 20 bar); Temperature range: 2 – 150 °C (medium); HS code: 8481.80. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.

Code number

003H6294

Type

AVP

Product group

Pressure and flow controllers

Description

Self-acting differential pressure controller (district heating), adjustable setting, return mounting

Valve size

DN 15

Pressure class

PN 25

kVS value

2.5 m³/h

Connection

external thread G 3/4 A (ISO 228/1)

Differential pressure setting

0.3 – 2 bar (adjustable)

Max. differential pressure

20 bar

Medium

Circulation water / glycolic water up to 30% (pH 7–10)

Medium temperature

2 – 150 °C

Leakage (IEC 534)

0.02% of kVS

Mounting version

Return

Stem position

Normally open

Valve body

Red bronze CuSn5ZnPb (Rg5)

Valve seat

Stainless steel, mat. No. 1.4571

Valve cone

Dezincing free brass CuZn36Pb2As

Control diaphragm / sealing

EPDM

EU RoHS compliance

Yes with exemptions (6(c))

REACH Candidate List substance

Lead (CAS no. 7439-92-1)

Net weight

3.441 Kilogram

Gross weight

3.452 Kilogram

Packed volume

9.346 Liter

EAN

5702421538234

HS code

8481.80

Material

Valve body red bronze CuSn5ZnPb (Rg5); valve seat stainless steel 1.4571; valve cone dezincing free brass CuZn36Pb2As; control diaphragm EPDM

Thread Standard

ISO 228/1

Pressure Rating

PN 25 (max. differential pressure 20 bar)

Temperature Range

2 – 150 °C (medium)

HS Code

8481.80
