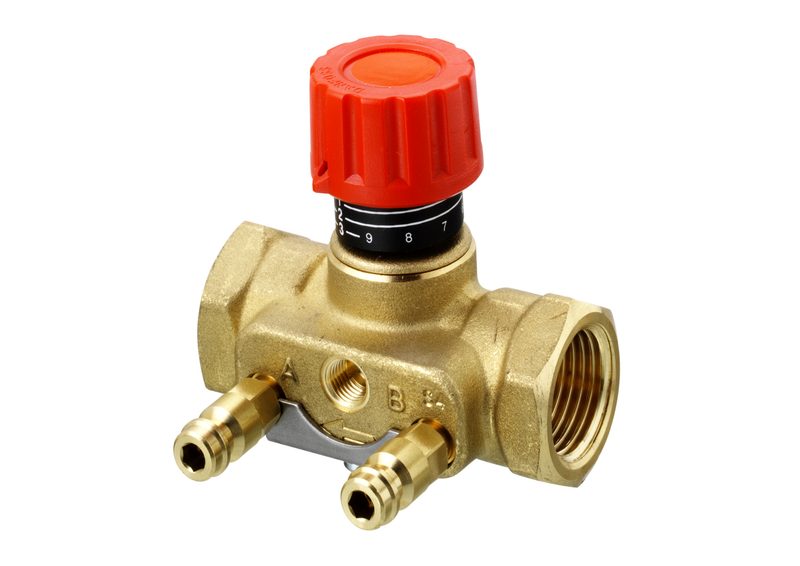

Danfoss ASV-I DN 15 External Thread adjustment / partner valve

Danfoss ASV-I — adjustment (presetting & measuring) partner valve, OEM order code 003L7646. Adjustment partner valve for the supply pipe of a riser controlled by a Danfoss ASV-P or ASV-PV differential-pressure controller (the controller impulse tube connects here). It carries a setting scale for presetting/flow limitation, allows the flow to be measured and read, and provides integral shut-off, so the riser can be preset, measured and isolated from one point. Used where the terminal (radiator) valves have no presetting facility. (ASV-I DN 15, external thread, adjustment valve.) Nominal size DN 15, Kvs 1.6 m³/h, PN 16, External Thread connection, Brass body, media temperature -20 °C to 120 °C. Net weight 0.343 Kilogram. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 003L7646). OEM P/N 003L7646, EAN 5702421527962.

Brand

Danfoss

Part number

003L7646

Type

ASV-I

Product group

Automatic balancing

Function

adjustment (presetting & measuring) partner valve

Store description

ASV-I DN 15, external thread, adjustment valve

Nominal size

DN 15

Kvs value

1.6 m³/h

Connection type

External Thread

Pressure class

PN 16

Max. differential pressure over the valve

150 KPa

Mounting position

Supply pipe

Setting scale

Yes

Flow limitation

Yes

Shut-off function

Yes

Drain function

No

Valve body material

Brass

Media temperature

-20 °C to 120 °C

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.343 Kilogram

Gross weight

0.348 Kilogram

EAN

5702421527962

HS code

8481.80 (taps, cocks, valves for pipes, tanks, vats or the like)

Material

Valve body Brass

Pressure Rating

PN 16

Temperature Range

-20 °C to 120 °C (media)

Classification / Approval

CE

HS Code

8481.80
