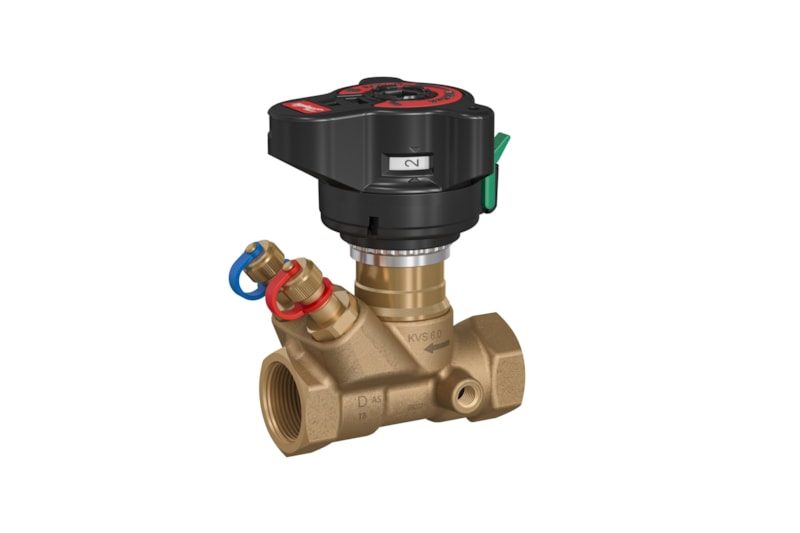

Danfoss ASV-D partner valve, DN 15, kVS 3 m³/h, internal thread

Danfoss ASV-D (003Z7008) — partner (shut-off) valve for the ASV automatic-balancing family, DN 15, for hydronic heating and cooling circuits. The ASV-D is mounted in the supply pipe of a balanced riser and works together with an ASV-P or ASV-PV self-acting differential-pressure controller on the return: it provides isolation of the branch and, via its measuring point, connection for the controller impulse and commissioning measurement. kVS 3 m³/h; valve body cW 617N dezincification-resistant brass; medium temperature -20–120 °C; connection internal thread. OEM P/N 003Z7008, EAN 5702424617899. Technical data quoted verbatim from store.danfoss.com (code 003Z7008).

Code number

003Z7008

Type

ASV-D

Product group

Automatic balancing — partner valve

Description

Shut-off partner valve for ASV-P / ASV-PV automatic differential-pressure controllers

Danfoss description

ASV-D valve DN 15

Valve size

DN 15

kVS value

3 m³/h

Connection

Internal thread

Medium temperature

-20 – 120 °C

Valve body

CW 617N (dezincification-resistant brass)

EU RoHS compliance

Yes with exemptions (6(c))

REACH Candidate List substance

Lead (CAS no. 7439-92-1)

Net weight

0.59 Kilogram

Gross weight

0.648 Kilogram

Packed volume

1.396 Liter

EAN

5702424617899

HS code

8481.80

China RoHS compliance

Out of scope

Connection types

Internal thread

EU RoHS exemption clause

6(c)

Kvs values [m³/h]

3 m³/h

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

-20 °C

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

RoHS Compliant

Out of scope

Valve body material

CW 617N

Material

Valve body cW 617N dezincification-resistant brass

Temperature Range

-20 – 120 °C (medium)

HS Code

8481.80
