Product Description

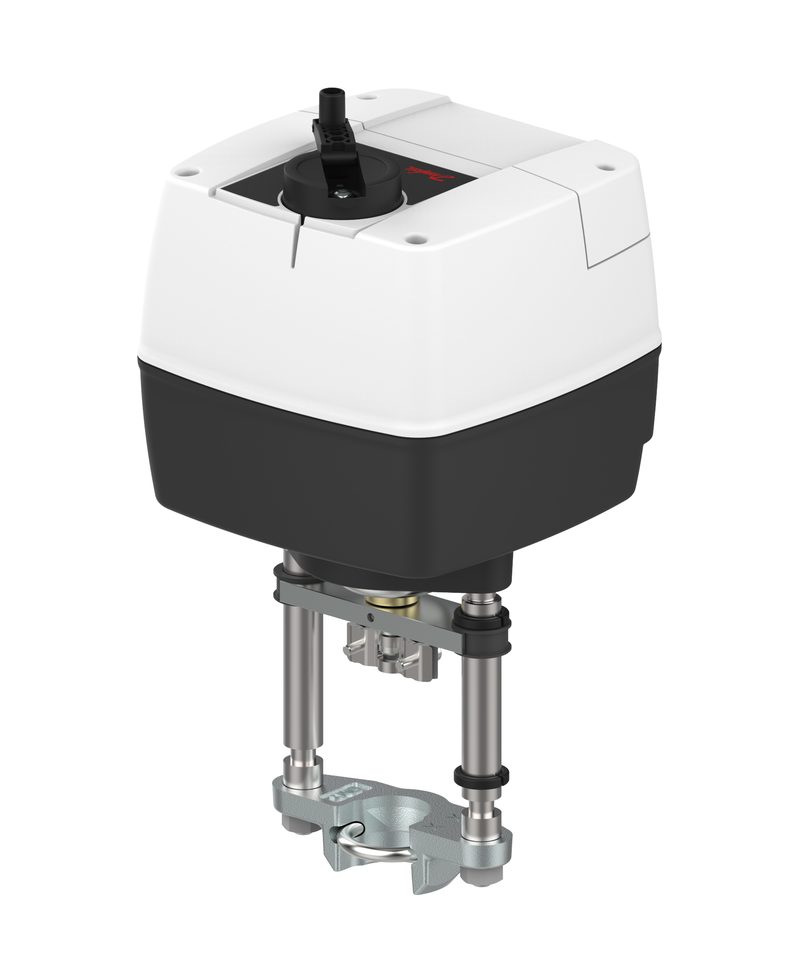

Danfoss AMV 658 SD electric linear actuator, OEM order code 082G3444. Supply voltage 24 V AC. Rated stroke 50 mm, closing force 2000 N, actuator speed 2 / 6 s/mm (selectable). Control is 3-point (floating), driving Danfoss seat/globe control-valve bodies in response to a two-wire raise/lower signal. The actuator is fitted with safety spring-return function (spring down / stem retracts to close on power loss), so the valve moves to its safe end position on loss of supply. Power consumption 19 W. Enclosure IP54, protection class II per EN 60730-1. Ambient range 0 °C to 55 °C, with manual override. The AMV 658 SD motorises large Danfoss globe/seat valve bodies (VFG 2, VFGS 2, VFU 2, VFQ 2, VF and matched series); the 50 mm stroke and 2000 N force suit the large DN range of those valves. Application: HD District Heating. Net weight 9.65 Kilogram. Data quoted verbatim from store.danfoss.com (code 082G3444).
Technical Specifications
- Brand
- Danfoss
- Part number
- 082G3444
- Type
- AMV 658 SD
- Product group
- Electrical actuators
- Actuator type
- Electric linear (globe-valve actuator)
- Supply voltage
- 24 V AC
- Stroke
- 50 mm
- Closing force
- 2000 N
- Actuator speed
- 2 / 6 s/mm (selectable)
- Control signal type
- 3-point
- Position feedback
- no - potentiometer needed
- Safety function
- Yes
- Spring down (return)
- Yes
- Spring up
- No
- Power consumption
- 19 W
- Enclosure rating
- IP54
- Protection class (EN 60730-1)
- II
- Manual override
- Yes
- Ambient temperature
- 0 °C to 55 °C
- Application
- HD District Heating
- Net weight
- 9.65 Kilogram
- Gross weight
- 9.65 Kilogram
- EAN
- 5710104037318
- HS code
- 8501.10 (electric motors/actuators of an output not exceeding 37.5 W)
Standards & Compliance
- Temperature Range
- 0 °C to 55 °C (ambient)
- IP Rating
- IP54
- HS Code
- 8501.10
Compatibility & Fitment
Electric actuator for Danfoss motorised globe/seat control valves. Mounts on large Danfoss valve bodies with 50 mm stroke — e.g. VFG 2 / VFGS 2 / VFU 2 / VFQ 2 and VF series (large DN band). AMV = 3-point floating control (fit an external potentiometer where position feedback is needed). Safety spring-return variant — verify required fail position (spring down). Verify body stroke (50 mm), control signal type and supply voltage (24 V AC) before ordering.
