Danfoss AFD 2 PN 16 self-acting pressure-reducing actuator — setting 3–12 bar, 32 cm² diaphragm, valve DN 65–125
Pricing
Request a quote
We reply within 24 hours
Product Description

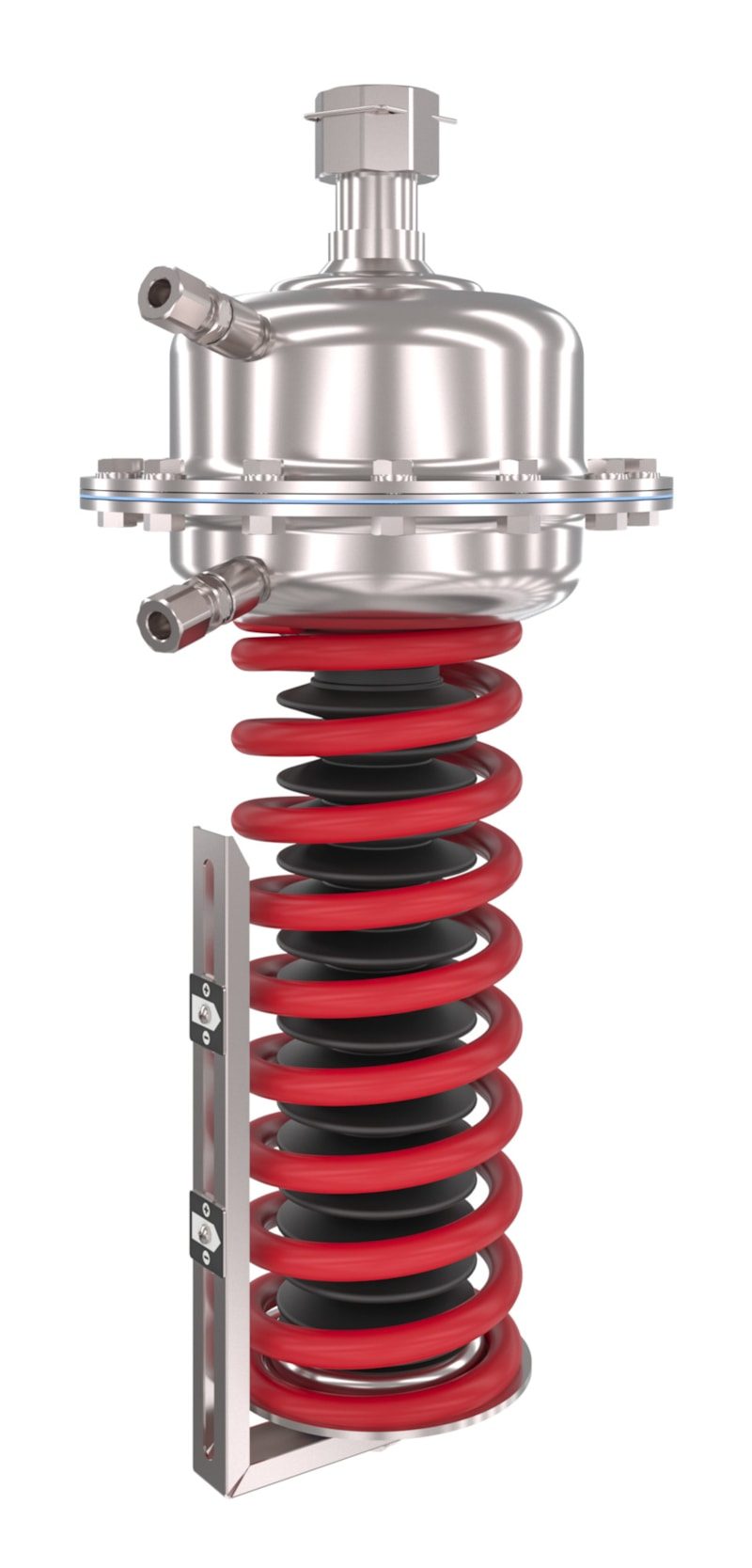

Danfoss AFD 2 PN 16 — a self-acting pressure-reducing controller (pressure reducer). It keeps the reduced (downstream) pressure constant by modulating the matching globe valve body via its rolling-diaphragm actuator. The actuator carries the diaphragm and setting spring only; it combines with a Danfoss VFG 2 / VFGS 2 / VFU 2 globe valve body (ordered separately) to form a complete self-acting controller for district heating and district cooling circuits. Actuator diaphragm area 32 cm²; setting 3–12 bar; suits valve bodies DN 65–125. Media temperature 2 °C to 150 °C; maximum operating pressure 16 bar. Actuator housing Steel, mat. 1.0345, zinc plated; diaphragm EPDM (Rolling, fibre enforced). Medium: district heating/cooling circulation water (glycolic water up to 30%). OEM designation "AFD 2, PN 16, 3 bar - 12 bar, 32 cm²". OEM P/N 003G5625. Technical data quoted verbatim from store.danfoss.com (code 003G5625). 1.0345, zinc plated; diaphragm EPDM (Rolling, fibre enforced); Standard size: AFD 2; Pressure rating: PN 16; Temperature range: 2 °C to 150 °C; HS code: 8481.90. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants. No.
Technical Specifications
- Code number
- 003G5625
- Type
- AFD 2
- Product group
- Actuators - Pressure Flow
- Gross weight
- 10.8 Kilogram
- Net weight
- 10 Kilogram
- Volume
- 50.475 Liter
- Actuator diaphragm material
- EPDM (Rolling, fibre enforced)
- Actuator size [cm²]
- 32 cm²
- Application
- District heating and cooling
- Body material
- Steel, mat. No. 1.0345, zinc plated
- China RoHS compliance
- Out of scope
- Contains batteries
- No
- Description
- Pressure reduction actuator
- Diameter [mm] [Max]
- 125 mm
- Diameter [mm] [Min]
- 65 mm
- Differential pressure setting [bar] [Max]
- 12 bar
- Differential pressure setting [bar] [Min]
- 3 bar
- EU RoHS compliance
- Out of scope
- Flow control
- No
- Flow limitation
- No
- Function
- Press. reduction controller
- Media pH [Max]
- 10
- Media pH [Min]
- 7
- Media temperature [°C] [Max]
- 150 °C
- Media temperature [°C] [Min]
- 2 °C
- Medium alternative
- Glycolic water up to 30%
- Mounting version
- Flow
- Operating pressure [bar] [Max]
- 16 bar
- Permissible media
- District heating/cooling circulation water
- Pressure class
- PN 16
- Pressure controller
- Press. reduction controller
- Pressure nominal [bar]
- 16 bar
- Pressure setting range [bar] [Max]
- 12 bar
- Pressure setting range [bar] [Min]
- 3 bar
- Setting Type
- Adjustable
- EAN
- 5714279038484
- HS code
- 8481.90
- Nominal diameter
- DN65
Standards & Compliance
- Size / Series
- AFD 2
- Material
- Actuator housing Steel, mat. No. 1.0345, zinc plated; diaphragm EPDM (Rolling, fibre enforced)
- Pressure Rating
- PN 16
- Temperature Range
- 2 °C to 150 °C
- HS Code
- 8481.90
Compatibility & Fitment
AFD 2 is the self-acting actuator of the Danfoss AF range; it combines with a Danfoss VFG 2 / VFGS 2 / VFU 2 globe valve body to build a complete controller. Select by pressure class (PN 16), required setting range (3–12 bar), actuator size (32 cm²) and the valve-body size range (DN 65–125). For differential-pressure control use AFP; for pressure relief use AFA; for flow limitation use AFQ. Confirm actuator size, setting range and matching valve body against the AF-range data sheet before ordering.
