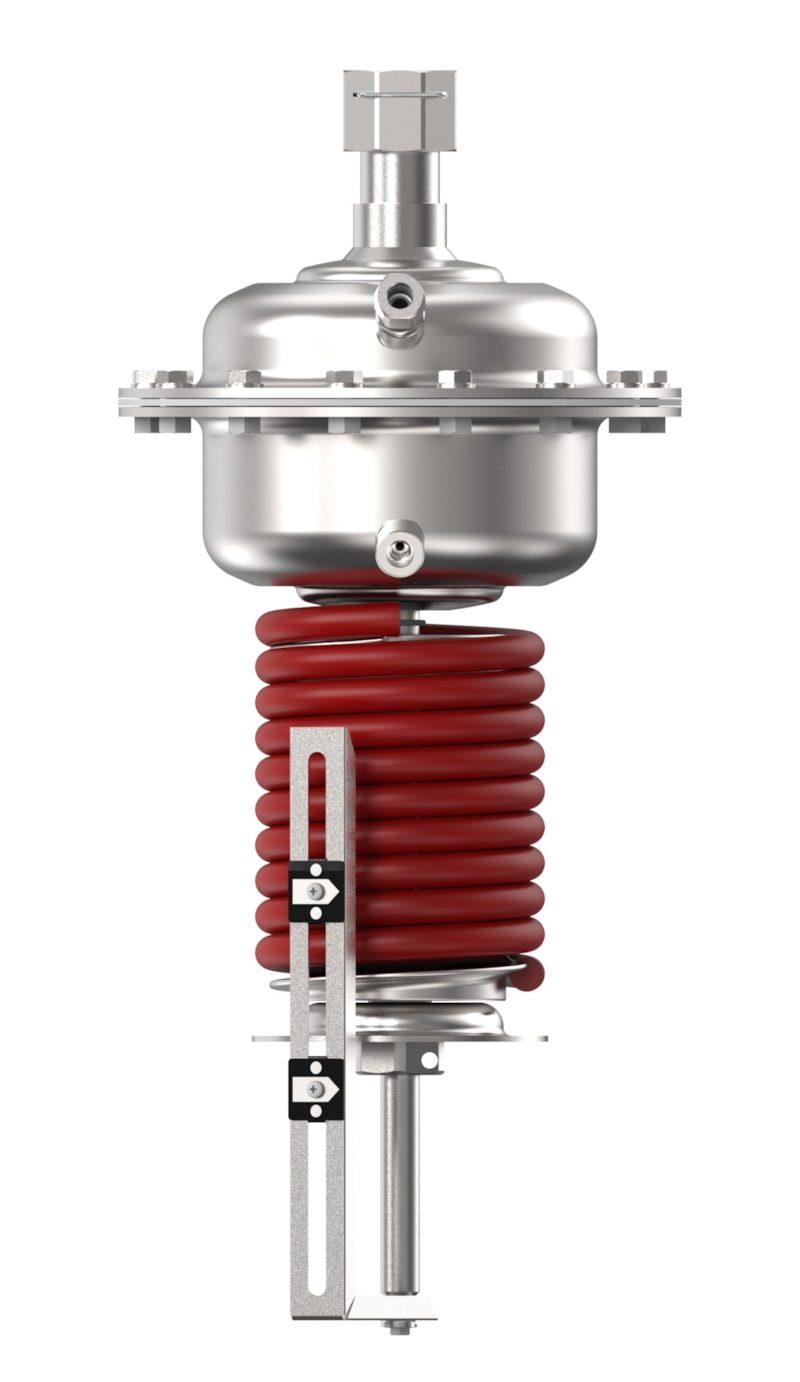

Danfoss AFA 2 PN 40 self-acting pressure-relief actuator — setting 1–3 bar, 160 cm² diaphragm, valve DN 65–250
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AFA 2 PN 40 — a self-acting pressure-relief controller (surplus-pressure / overflow controller). It opens the matching globe valve body via its rolling-diaphragm actuator when the controlled pressure rises above the spring setting, discharging surplus flow to hold the upstream pressure at the set maximum. The actuator carries the diaphragm and setting spring only; it combines with a Danfoss VFG 2 / VFGS 2 / VFU 2 globe valve body (ordered separately) to form a complete self-acting controller for district heating and district cooling circuits. Actuator diaphragm area 160 cm²; setting 1–3 bar; suits valve bodies DN 65–250. Media temperature 2 °C to 150 °C; maximum operating pressure 40 bar. Actuator housing Steel, mat. 1.0345, zinc plated; diaphragm EPDM (Rolling, fibre enforced). Medium: district heating/cooling circulation water (glycolic water up to 30%). OEM designation "AFA 2, PN 40, 1 bar - 3 bar, 160 cm²". OEM P/N 003G5671. Technical data quoted verbatim from store.danfoss.com (code 003G5671). 1.0345, zinc plated; diaphragm EPDM (Rolling, fibre enforced); Standard size: AFA 2; Pressure rating: PN 40; Temperature range: 2 °C to 150 °C; HS code: 8481.90. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants. No.
Technical Specifications
- Code number
- 003G5671
- Type
- AFA 2
- Product group
- Actuators - Pressure Flow
- Gross weight
- 15.7 Kilogram
- Net weight
- 14.5 Kilogram
- Volume
- 52.304 Liter
- Actuator diaphragm material
- EPDM (Rolling, fibre enforced)
- Actuator size [cm²]
- 160 cm²
- Body material
- Steel, mat. No. 1.0345, zinc plated
- China RoHS compliance
- Out of scope
- Contains batteries
- No
- Description
- Pressure relief actuator
- Diameter [mm] [Max]
- 250 mm
- Diameter [mm] [Min]
- 65 mm
- Differential pressure setting [bar] [Max]
- 3 bar
- Differential pressure setting [bar] [Min]
- 1 bar
- EU RoHS compliance
- Out of scope
- Flow control
- No
- Flow limitation
- No
- Function
- Press. relief controller
- Media pH [Max]
- 10
- Media pH [Min]
- 7
- Media temperature [°C] [Max]
- 150 °C
- Media temperature [°C] [Min]
- 2 °C
- Medium alternative
- Glycolic water up to 30%
- Mounting version
- Bypass
- Operating pressure [bar] [Max]
- 40 bar
- Permissible media
- District heating/cooling circulation water
- Pressure class
- PN 40
- Pressure controller
- Pressure relief controller
- Pressure nominal [bar]
- 40 bar
- Pressure setting range [bar] [Max]
- 3 bar
- Pressure setting range [bar] [Min]
- 1 bar
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Setting Type
- Adjustable
- EAN
- 5715162375037
- HS code
- 8481.90
- Nominal diameter
- DN65
Standards & Compliance
- Size / Series
- AFA 2
- Material
- Actuator housing Steel, mat. No. 1.0345, zinc plated; diaphragm EPDM (Rolling, fibre enforced)
- Pressure Rating
- PN 40
- Temperature Range
- 2 °C to 150 °C
- HS Code
- 8481.90
Compatibility & Fitment
AFA 2 is the self-acting actuator of the Danfoss AF range; it combines with a Danfoss VFG 2 / VFGS 2 / VFU 2 globe valve body to build a complete controller. Select by pressure class (PN 40), required setting range (1–3 bar), actuator size (160 cm²) and the valve-body size range (DN 65–250). For differential-pressure relief use AFPA; for pressure reduction use AFD; for differential-pressure control use AFP; for flow limitation use AFQ. AFA mounts in a bypass line. Confirm actuator size, setting range and matching valve body against the AF-range data sheet before ordering.
