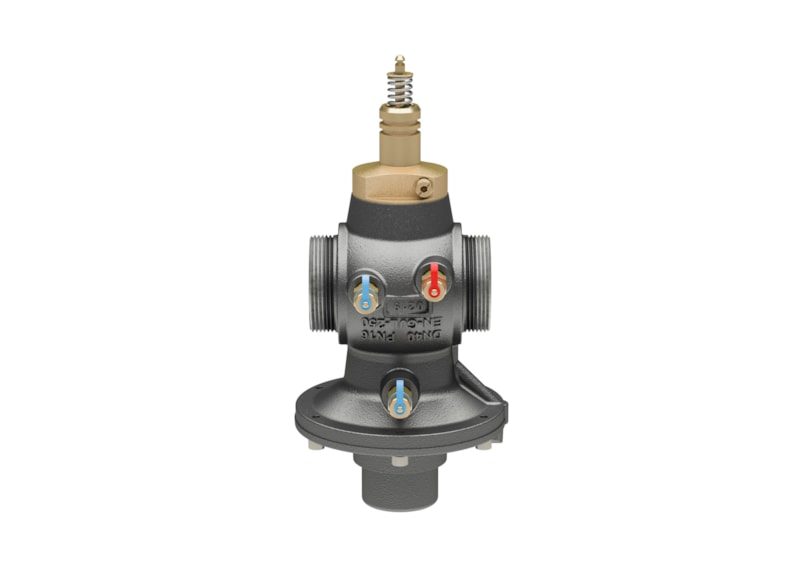

Danfoss AB-QM DN 50 pressure-independent balancing & control valve, external thread connection, for NovoCon M actuator

Danfoss AB-QM DN 50 (003Z1771) — pressure-independent balancing and control valve (PICV) for heating and cooling distribution. The integral differential-pressure controller holds the flow through the settable orifice constant regardless of pressure fluctuations in the network, combining automatic balancing, flow limitation and modulating control in one valve. Connection External Thread. Valve body Grey cast iron EN-GJL-250 (GG-25). PN 16, nominal flow 12.5 m³/h, media temperature -10 °C to 120 °C (media). Supplied with test plugs. Designed for the Danfoss NovoCon M digital actuator (ordered separately). OEM designation "AB-QM NovoCon DN 50, with three test plugs, pressure independent balancing and control valve, to be used with NovoCon M". OEM P/N 003Z1771. Contains lead per the REACH candidate list. Technical data quoted verbatim from store.danfoss.com (code 003Z1771). Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.

Code number

003Z1771

Type

AB-QM

Version

AB-QM

Product group

Pressure independent balancing and control valves

Description

AB-QM NovoCon DN 50, with three test plugs, pressure independent balancing and control valve, to be used with NovoCon M

Valve size

DN 50

Valve body material

Grey cast iron EN-GJL-250 (GG-25)

Connection types

External Thread

Actuator connection

Danfoss standard

Test plugs

Yes

Flow nominal [m³/h]

12.5 m³/h

Setting range [%] [max]

100 %

Stroke [mm]

20 mm

Shut-off function

Yes

Leakage rate with recommended actuator (IEC 60534-4)

Class III

Pressure class

PN 16

Differential pressure [kPa] [Max]

600 KPa

Media temperature [°C] [Min]

-10 °C

Media temperature [°C] [Max]

120 °C

Storage and Transport temperature [°C] [Min]

-40 °C

Storage and Transport temperature [°C] [Max]

70 °C

Contains batteries

No

EPD available

Yes

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

China RoHS compliance

Out of scope

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

895c13d2-aa37-49e5-a525-eb197599d612

SCIP dossier product name

AB-QM DN40 DN50

Net weight

7.866 Kilogram

Gross weight

7.906 Kilogram

Volume

18.913 Liter

EAN

5714279003833

Material

Grey cast iron EN-GJL-250 (GG-25)

Pressure Rating

PN 16

Temperature Range

-10 °C to 120 °C (media)

Classification / Approval

CE

HS Code

8481.80
