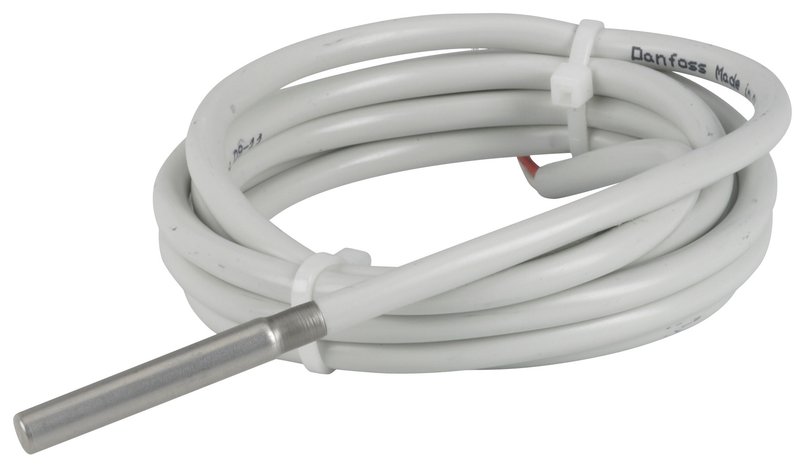

Danfoss AKS 12 cable temperature sensor 1.5 m Pt 1000 Ohm
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AKS 12 cable temperature sensor, code 084N0035, with a 1.5 m PVC-jacketed cable and a Pt (platinum resistance) element of 1000 Ohm to EN 60751 (IEC 60751), tolerance Class B. AKS 12 is the Danfoss HVAC & Food Retail-range cable temperature sensor for low-temperature measurement in refrigeration and cooling plant. Measuring range -40 to +100 °C. Enclosure IP67, 2-wire cable connection. Net weight 0.048 kg / gross 0.05 kg; supplied industrial pack, 30 pc. EAN 5702423106684. OEM P/N 084N0035. Danfoss also lists this AKS 12 / 1.5 m / Pt 1000 Ohm sensor under interchangeable order codes 084N0036 (same construction; they differ only in packing quantity / order revision).
Technical Specifications
- Type
- Danfoss AKS 12
- Code number
- 084N0035
- Function
- Cable temperature sensor
- Danfoss range
- HVAC & Food Retail
- Sensor element
- Pt (platinum resistance)
- Resistance
- 1000 Ohm
- Element standard
- EN 60751 (IEC 60751)
- Tolerance class
- Class B
- Measuring range
- -40 to +100 °C
- Cable length
- 1.5 m
- Cable material
- PVC
- Electrical connection
- 2-wire cable
- Enclosure
- IP67
- Packing format
- Industrial pack
- Quantity per pack
- 30 pc
- Net weight
- 0.048 kg
- Gross weight
- 0.05 kg
- EU RoHS
- Yes
- China RoHS
- Out of scope
- REACH candidate-list
- None
- EAN
- 5702423106684
- Interchangeable order codes
- 084N0036
Standards & Compliance
- Standard
- EN 60751
- Material
- PVC cable, Pt1000 platinum element
- Temperature Range
- -40 to +100 °C
- IP Rating
- IP67
- Classification / Approval
- CE
- HS Code
- 9025.19
Compatibility & Fitment
Danfoss AKS 12 cable temperature sensor. Confirm sensor element (Pt 1000) and cable length match the controller/input before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss AKS 12 cable temperature sensor 3.5 m Pt 1000 Ohm
084N0039
Danfoss
Danfoss AKS 12 cable temperature sensor 5.5 m Pt 1000 Ohm
084N0037
Danfoss
Danfoss AKS 12 cable temperature sensor 8.5 m Pt 1000 Ohm
084N0041
Danfoss
Danfoss AKS 21 A accessory bag
084N0006
Danfoss
Danfoss MBT 156 temperature sensor insert, Pt 100, 80 mm insertion, slim-line head
084Z4320
Danfoss
Danfoss MBT 156 temperature sensor insert, Pt 100, 100 mm insertion, slim-line head
084Z4321
Danfoss

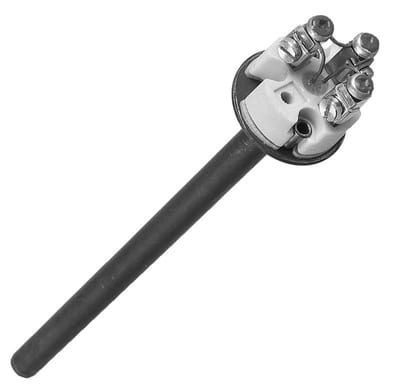

Danfoss MBT 156 temperature sensor insert, Pt 100, 120 mm insertion, slim-line head
