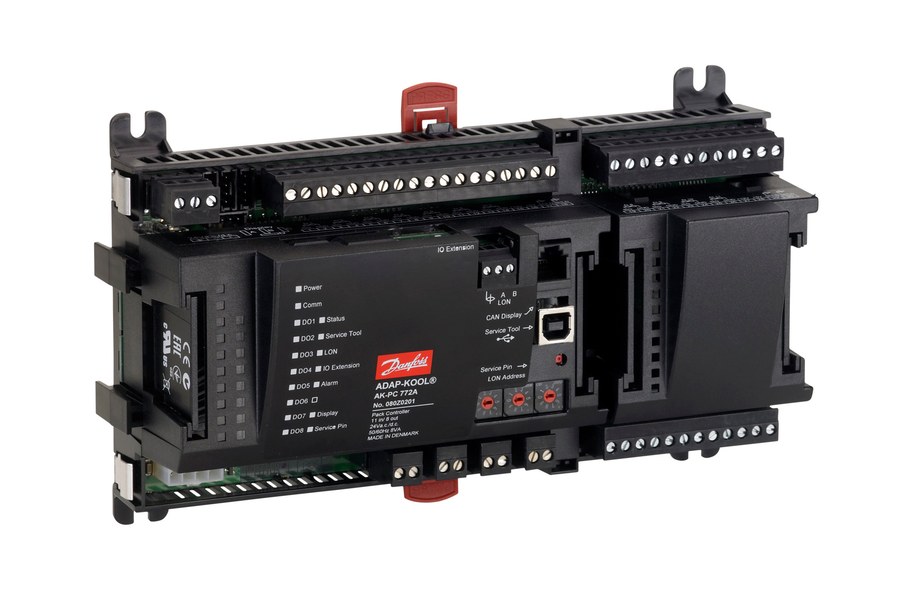

Danfoss AK-PC 772A pack controller, transcritical CO2 mini booster
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AK-PC 772A pack controller for transcritical CO2 (R744) mini booster refrigeration racks. Sequences up to five compressors and four condenser/gas-cooler fans, with floating condenser pressure, P0 optimisation, heat recovery and oil management. 24 V supply. External communication (LON RS485, RS232, USB-B to PC, RJ11 CAN to display) included. EAN 5702428939331.
Technical Specifications
- Type
- AK-PC 772A pack controller
- Function
- Transcritical mini Booster (CO2 / R744)
- Supply voltage
- 24 V AC / 24 V DC
- Power consumption
- 8 VA
- Frequency
- 50/60 Hz
- Compressors (max)
- 5 pc
- Fans (max)
- 4 pc
- Analog inputs (AI)
- 11 pc
- Digital outputs (DO)
- 8 pc
- Communication
- LON RS485; RJ11 (CAN) to display; RS232; USB-B to PC
- Enclosure rating
- IP10
- Net weight
- 0.645 kg
- Gross weight
- 0.953 kg
- Approvals
- CE, cURus, C-TICK, EAC, LLC CDC TYSK
- Danfoss code
- 080Z0201
- EAN
- 5702428939331
- Product group
- Compressor/condenser control
- Addit. thermostats inputs max.
- 1 pc
- Addit.press.switche inputs max
- 1 pc
- Additional alarm inputs max.
- 10 pc
- Additional analog inputs max.
- 1 pc
- Additional PI Controls max.
- 1 pc
- Analog inputs (AI) [pc]
- 11 pc
- Application area
- Capacity control
- Approval
- C-TICK
- Capacity control input
- Pressure
- Capacity control mode
- PI
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Communication type
- LON RS485
- Compressor capacity mode
- Step/ Speed
- Condenser control type
- Temperature
- Controller type
- Pack Controller
- Digital outputs (DO) [pc]
- 8 pc
- Display - option
- EKA 163B
- Display on front
- No
- Division
- 25
- EU RoHS compliance
- Out of scope
- Fan capacity control
- Step/ Speed
- Fan control mode
- PI
- Frequency [Hz]
- 50/60 Hz
- Further information
- Transcri.,Speed,CO2,HP,HR
- I/O connectors max.
- 120 pc
- No.of compr. safty signals max
- 6 pc
- No.of extention modules max.
- 11 pc
- Number of Compressors max.
- 5 pc
- Number of fans max.
- 4 pc
- Other RoHS documentation
- EAEU RoHS
- PFAS content [Yes/No]
- No
- Power consumption [VA]
- 8 VA
- Product features
- CO2 compliant
- Product Language
- Czech
- Programming tools
- AK-ST 500
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Supply voltage [V] AC
- 24 V
- Supply voltage [V] DC
- 24 V
- UL mark
- Yes
Standards & Compliance
- IP Rating
- IP10
- Classification / Approval
- CE, cURus, C-TICK, EAC, LLC CDC TYSK
- HS Code
- 9032.89
Compatibility & Fitment
Transcritical CO2 (R744) mini-booster pack controller for the Danfoss ADAP-KOOL AK2 platform. The AK-PC 772B (080Z0195) is the same controller with an Ethernet/IP RJ45 port instead of the RS232/LON build. Confirm rack size (≤5 compressors) and refrigerant before ordering.
