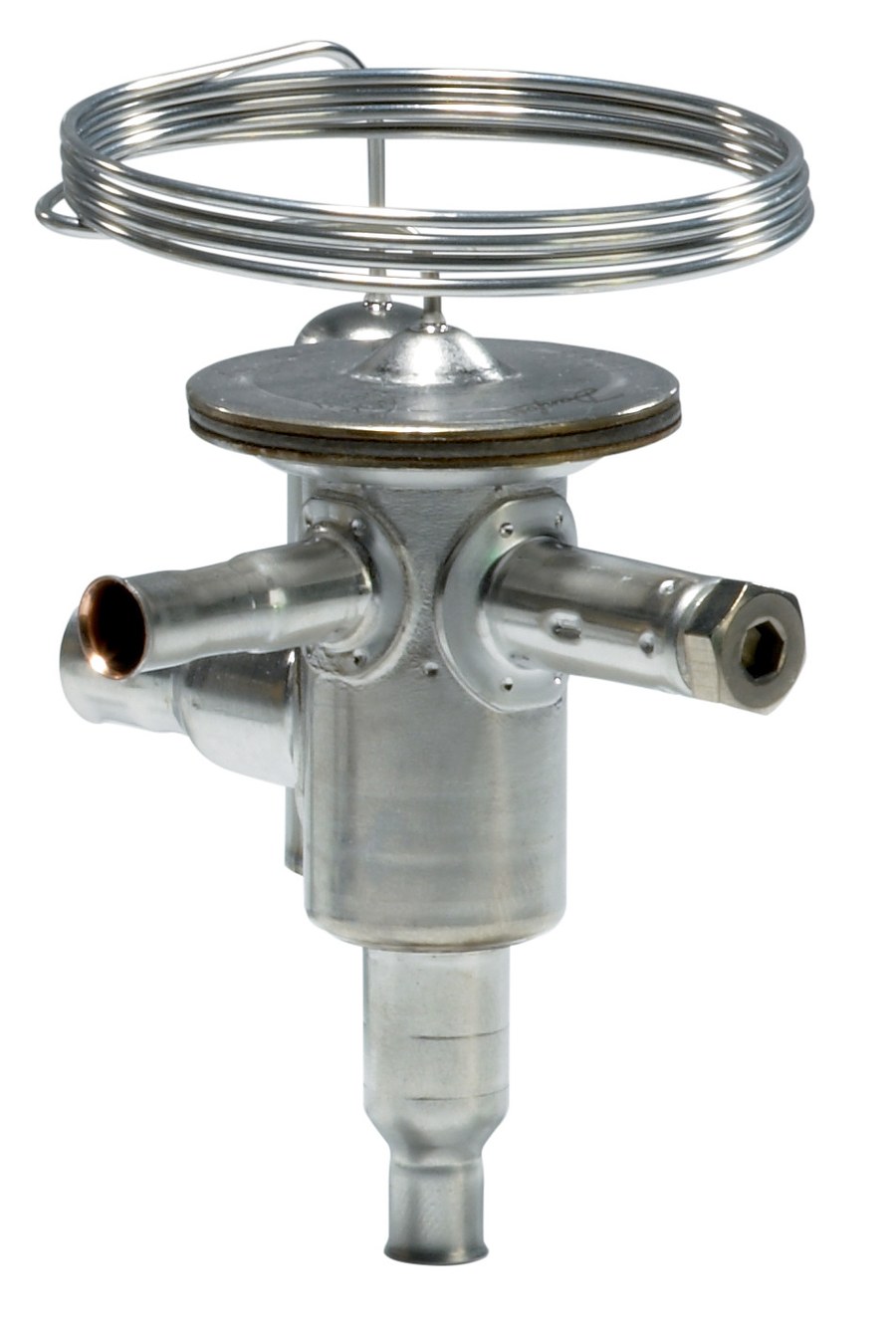

Danfoss 068U2016 TUBE thermostatic expansion valve, R134a/R513A, 10 mm x 12 mm solder ODF
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss TUBE universal thermostatic expansion valve, OEM P/N 068U2016. Externally equalized, stainless-steel body and capillary (fixed orifice, adjustable superheat, externally equalized). Refrigerant R134a/R513A. Nominal capacity 8.2 kW (2.3 TR) at the standard rating condition. Evaporating temperature range -40 to 10 °C. Inlet 10 mm, outlet 12 mm, Solder ODF, external equalizer 1/4 in Solder ODF. Static superheat 4 °C (adjustable). Capillary/bulb length 800 mm. Max working pressure 34 bar (500 psig). Angleway flow direction. Hermetic laser-welded design per EU F-gas Regulation 517/2014. EAN 5702422138334.
Specifications
- Part number
- 068U2016
- HS code
- 8481.80
- Material
- Stainless steel
- Pressure rating
- 34 bar (500 psig) max working pressure
- Temperature range
- -40 °C to 10 °C (evaporating)
- Standard size
- 10 mm x 12 mm
Compatibility
Rated for R134a/R513A. Select capacity to the evaporator load and rating condition per the TU/TC data sheet before ordering. External-equalizer models require the 1/4 in equalizer line to be connected to the evaporator outlet.
Approvals
