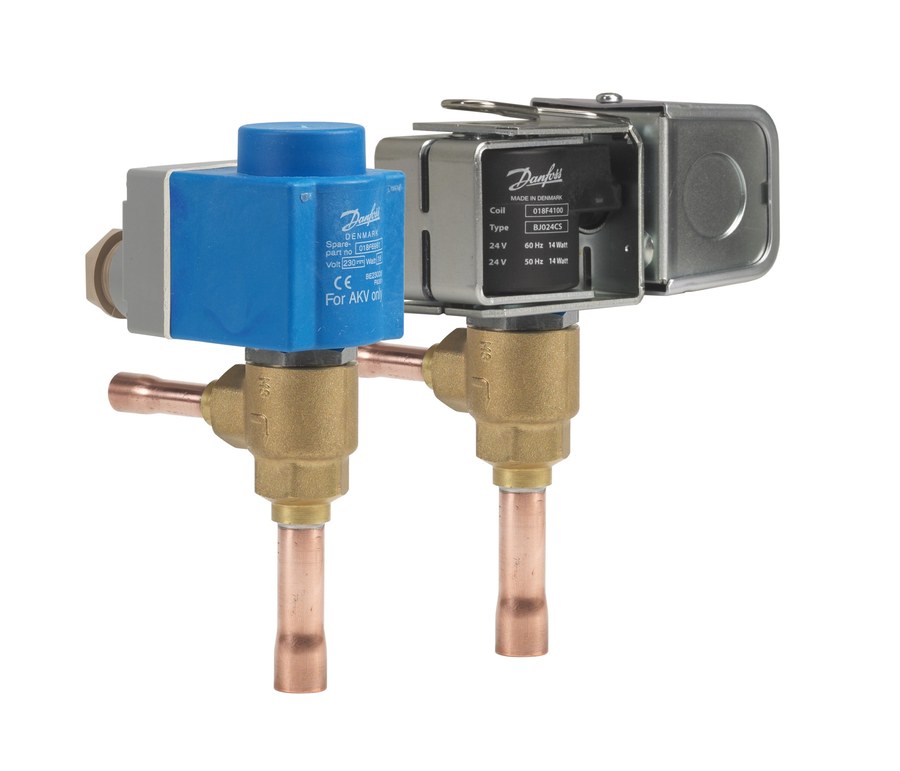

Danfoss AKV 10P1 electric expansion valve, 3/8 in × 1/2 in ODF solder, orifice 0.5 mm, 1.3 kW R744, 90 bar MWP
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AKV 10P1 pulse-width-modulated (PWM) electric expansion valve, code 068F5211. Compact solder-ODF valve for precise liquid refrigerant injection in ADAP-KOOL and third-party evaporator control; the normally-closed (NC) valve is switched by an AKV coil (ordered separately) under a Danfoss or OEM refrigeration controller. 3/8 in ODF solder inlet and 1/2 in ODF solder outlet, replaceable 0.5 mm orifice, angleway body. Rated 1.3 kW on R744; Kv 0.009 m³/h. Max working pressure 90 bar (1305 psig); MOPD 70 bar/1015 psi Coil Dependent. Medium temperature −50 to 60 °C. Approved for a wide CFC-free HFC/HFO and R744 (CO₂) refrigerant range. C UL US Listed and EAC. OEM P/N 068F5211.
Technical Specifications
- Type
- Electric expansion valve, AKV 10P1 (AKV 10P / 10PS series, PWM)
- Code number
- 068F5211
- Function
- NC (normally closed), angleway; pulse-width-modulated liquid injection
- Inlet connection
- 3/8 in Solder ODF
- Outlet connection
- 1/2 in Solder ODF
- Orifice size
- 0.5 mm (replaceable orifice assembly)
- Rated capacity (R744)
- 1.3 kW
- Kv value
- 0.009 m³/h
- Cv value
- 0.01 gal/min
- Max. working pressure (MWP)
- 90 bar (1305 psig)
- MOPD
- 70 bar/1015 psi Coil Dependent
- Actuator system
- 13.5 mm
- Medium temperature range
- -50 °C to 60 °C
- Ambient temperature range
- -50 - 50 °C
- Coil
- not included — order AKV coil separately; controlled by a Danfoss ADAP-KOOL or OEM controller
- Compatible refrigerants
- R1233zd(E) R1234yf R1234ze(E) R1270 R134a R170 R22 R23 R290 R32 R404A R407A R407C R407F R407H R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R469A R507A R513A R513B R515A R515B R516A R600 R600a R744
- Approvals
- C UL US LISTED EAC LLC CDC EURO-TYSK
- Gross weight
- 0.344 Kilogram
- EAN
- 5702428669993
- Net weight
- 0.301 Kilogram
- Product group
- Expansion valves
- Actuator system [mm]
- 13.5 mm
- Ambient temperature range [°F] [max]
- 120 °F
- Ambient temperature range [°F] [min]
- -58 °F
- Approval
- C UL US LISTED
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection Code
- (3002:X:10; 3002:X:13)
- Cv value [gal/min]
- 0.01 gal/min
- Direction
- Angleway
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Identical product
- 068F5231
- Inlet connection type
- Solder, ODF
- Inlet size [in]
- 3/8 in
- Kv value [m³/h]
- 0.009 m³/h
- Manual operation option
- No
- Max. Working Pressure [bar]
- 90 bar
- Max. Working Pressure [psig]
- 1305 psig
- Medium temperature range [°C] [max]
- 60 °C
- Medium temperature range [°C] [min]
- -50 °C
- Medium temperature range [°F] [max]
- 140 °F
- Medium temperature range [°F] [min]
- -58 °F
- MinODP [bar]
- 0 bar
- MinODP [psi]
- 0 psi
- MOPD[bar/psi]
- 70 bar/1015 psi Coil Dependent
- Orifice size [mm]
- 0.5 mm
- Outlet connection type
- Solder, ODF
- Outlet size [in]
- 1/2 in
- Rated capacity R744 [kW]
- 1.3 kW
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R1233zd(E)
- Type designation
- Electric expansion valve
- UL approved refrigerants
- R1233zd(E)
- UL mark
- Yes
Standards & Compliance
- Pressure Rating
- 90 bar (1305 psig)
- Temperature Range
- -50 to 60 °C
- HS Code
- 8481.80
