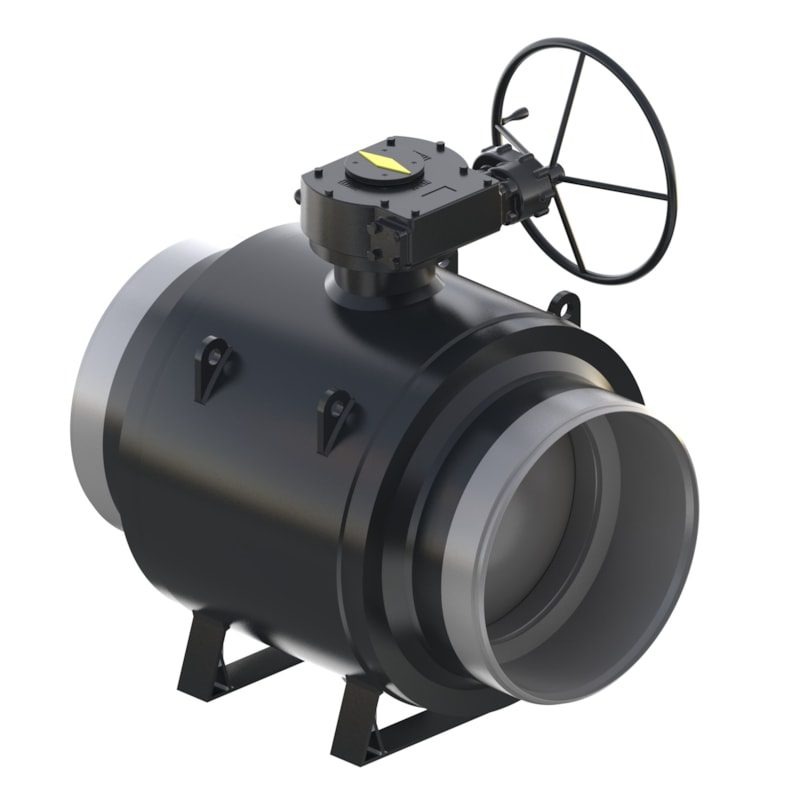

Danfoss JIP-WW ball valve DN 700 PN 25 — reduced bore, worm gear (065N2000)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss JIP-WW industrial ball valve, DN 700 PN 25, reduced bore, welded × welded connection, worm gear operated. Two-port on/off isolation valve for district heating and cooling circulation water; weldable-steel body with stainless-steel ball and stem and a PTFE+C seat ring. Rated PN 25, media temperature 0 °C to 180 °C. Approval: EN 12266 / PED 97/23/EEC Module H1. OEM P/N 065N2000. EAN 5715162460061. Verbatim technical data from store.danfoss.com (code 065N2000).
Technical Specifications
- Code number
- 065N2000
- Type
- JIP-WW, RB, Worm gear
- Product group
- Ball valves
- Valve size
- DN 700
- Pressure class
- PN 25
- Valve type
- Reduced Bore
- Connection types
- Welded / Welded
- EU RoHS compliance
- Out of scope
- China RoHS compliance
- Yes
- REACH Candidate List substances
- No
- Net weight
- 1850 kg
- Gross weight
- 1900 kg
- EAN
- 5715162460061
Standards & Compliance
- Material
- Body: weldable steel (#20 / P235GH); ball & stem: stainless steel; seat: PTFE+C; stem seal: PTFE/graphite
- Pressure Rating
- PN25
- Temperature Range
- 0 °C to 180 °C (media)
- Classification / Approval
- CE / PED
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss JIP-WW DN 700 PN 25. Confirm bore (Reduced Bore), connection (welded × welded) and operator (Worm gear) against the pipework; JIP-WW (weld/weld), JIP-FF (flange/flange) and JIP-FW (flange/weld) end configurations are not interchangeable. Hot-tap installation uses the matching JIP-HTT tooling (065N10xx).
