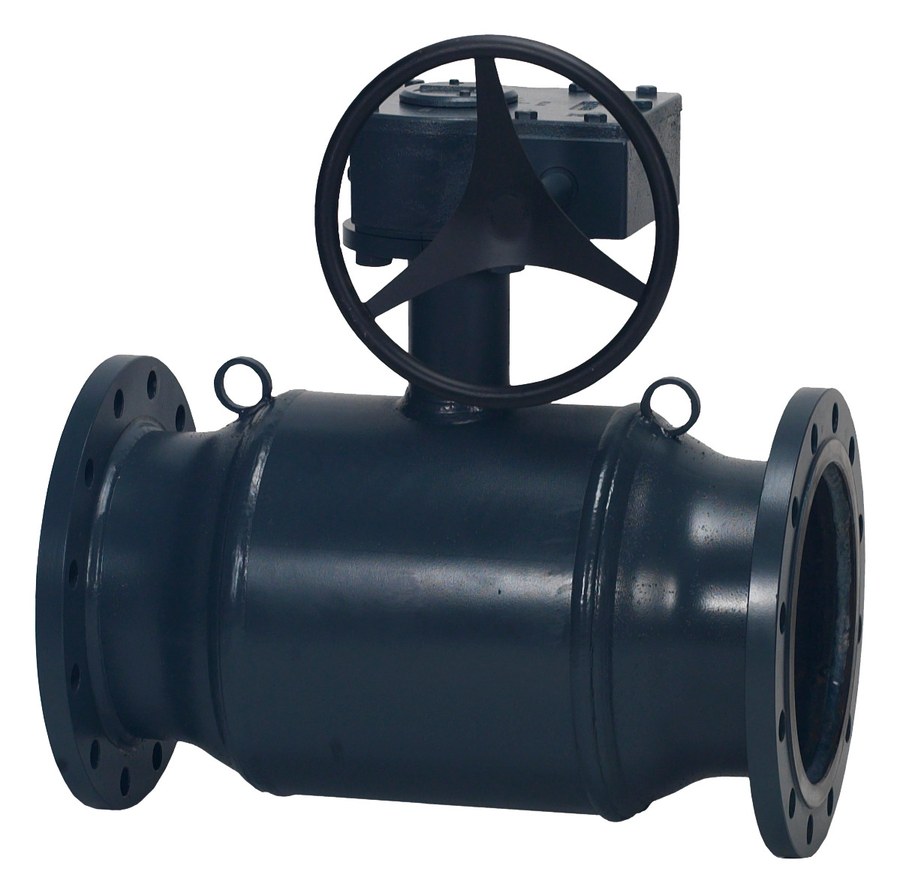

Danfoss JIP-FF ball valve DN 350 PN 16 — full bore, worm gear
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss JIP-FF industrial ball valve, DN 350 PN 16, full bore, flange × flange (EN 1092) connection, worm gear operated. Two-port on/off isolation valve for Heating and cooling circulation water; weldable-steel flanged body with stainless-steel ball and stem. Rated PN 16. OEM P/N 065N1273. EAN 5702428974400. Verbatim technical data from store.danfoss.com (code 065N1273).
Technical Specifications
- Code number
- 065N1273
- Type
- JIP-FF, FB, Worm gear
- Description
- JIP-FF DN350 FB PN16 WG
- Product group
- Ball valves
- Function
- On/off
- Valve size
- DN 350
- Pressure class
- PN 16
- Valve type
- Full Bore
- Connection types
- Flange
- Length (mm)
- 980 mm
- Valve body material
- Weldable steel #20 or similar CE PED approved material
- EU RoHS compliance
- Out of scope
- China RoHS compliance
- Out of scope
- REACH Candidate List substances
- No
- Net weight
- 700 kg
- Gross weight
- 715 kg
- EAN
- 5702428974400
- Media pH [Max]
- 10
Standards & Compliance
- Material
- Body & flanges: Weldable steel #20 or similar CE PED approved material (EN 1092); ball & stem: stainless steel
- Pressure Rating
- PN16
- Classification / Approval
- CE / PED
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss JIP-FF DN 350 PN 16, flanged EN 1092. Confirm bore (Full Bore), flange drilling (PN 16) and operator against the pipework; JIP-FF (flange/flange), JIP-FW (flange/weld) and JIP-WW (weld/weld) end configurations are not interchangeable.
