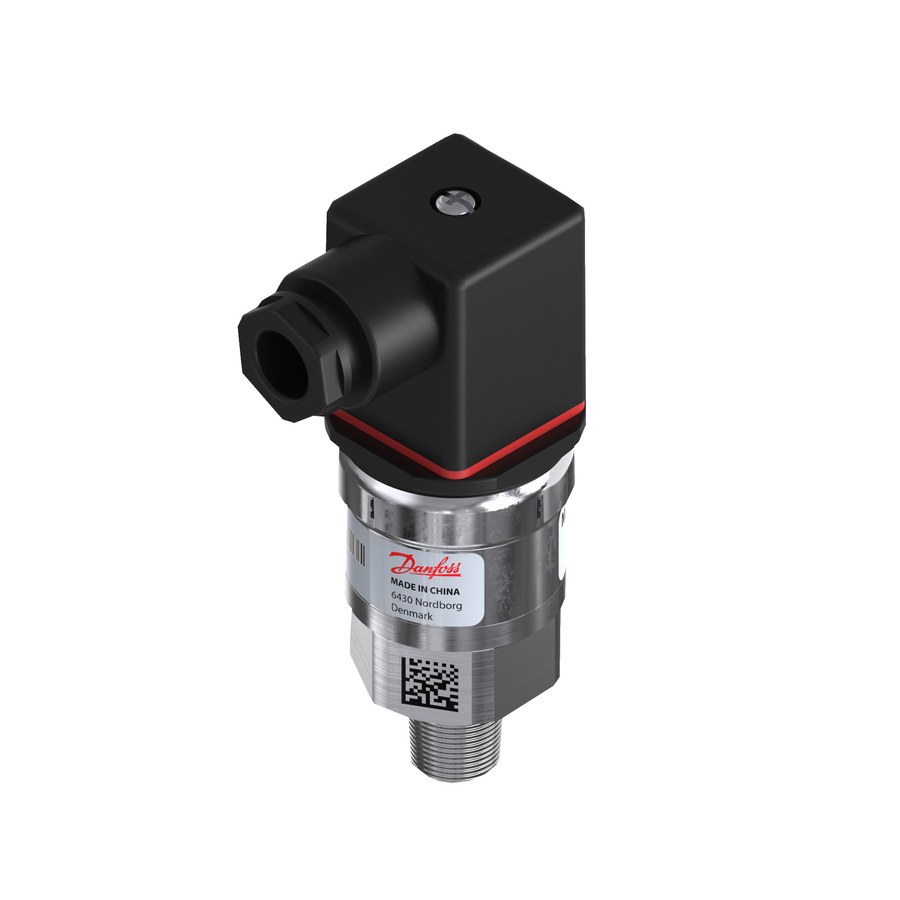

Danfoss MBS 3000 pressure transmitter 0-250 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBS 3000 0-250 bar. Danfoss pressure transmitters for industrial and marine service.
Technical Specifications
- Material
- 316L stainless steel wetted parts
- Temperature range
- -40°C to +85°C (electronics)
- Approval
- CE, IEC 61326 EMC
- Standards
- IEC 61326, IEC 61298-2, IEC 60770, EN 61326-1
- Approvals
- CE
- HS code
- 9026.20
- Code number
- 060G1137
- Product type
- MBS 3000
- Product group
- Sensors
- Ambient temperature range
- -40 °C to 85 °C
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 0.157 kg
- EAN
- 5702423095056
- Accuracy, max.
- 1.00 %
- Accuracy, typical
- 0.5 %
- Adj. zero point and span
- No
- Compensated temp. range
- 0 °C to 80 °C
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male and Female
- Electrical connection
- Angular connector
- Electrical connection size
- Pg 9
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- Flush diaphragm
- No
- High Clipping Level
- 22.40
- In scope of WEEE
- Yes
- Intrinsically safe
- No
- Low Clipping level
- 3.60
- Negative / common
- Pin 2
- Non-linearity BFSL
- 0.50 %
- Output signal
- Current, 4 mA to 20 mA
- Overload pressure max.
- 96.0 bar
- Positive / supply
- Pin 1
- Pressure connection HEX
- 27.0 mm
- Pressure connection size
- 1/4-18
- Pressure connection standard
- ANSI/ASME B1.20.1
- Pressure connection type
- NPT
- Pressure Male/Female
- Male
Standards & Compliance
- Material
- 316L stainless steel wetted parts
- Temperature Range
- -40°C to +85°C (electronics)
- Classification / Approval
- CE, IEC 61326 EMC
- HS Code
- 9026.20
Compatibility & Fitment
Verify process connection (G1/4, G1/2, 1/4 NPT), signal output (4-20mA/HART), and pressure range.
