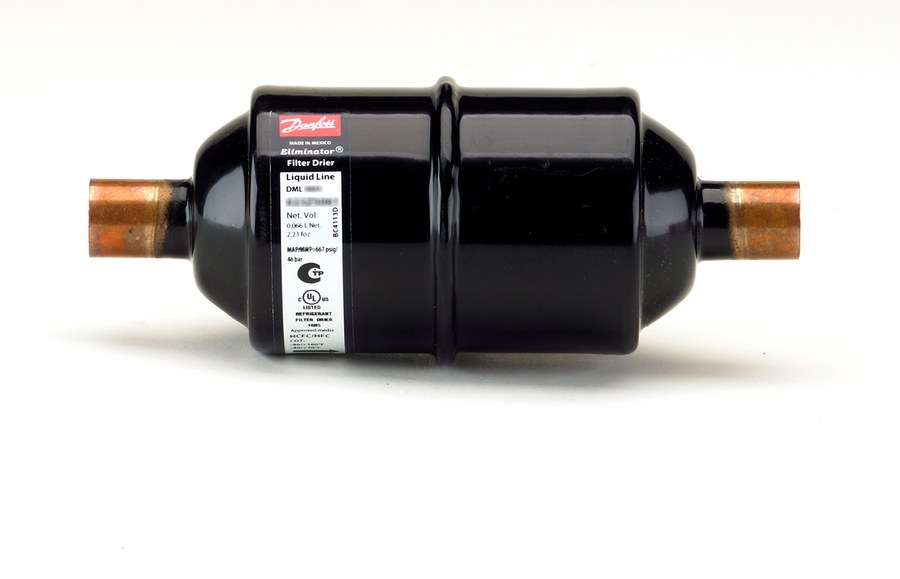

Danfoss 023Z5060 DML 084S filter drier, Solder, ODF 12 mm
Danfoss · HVAC & Refrigeration · Filters & Driers
DML 084S ELIMINATOR hermetic filter drier, 08 cu.in. 100% molecular sieve solid core. Danfoss OEM, P/N 023Z5060. Liquid-line drier for refrigeration and air-conditioning systems; removes moisture, acids and solid particles from the refrigerant. Connection: Solder, ODF, 12 mm, inlet and outlet. Max working pressure 46 bar (667 psig); media temperature -40 to 70 °C. Highest moisture-capacity core (100% molecular sieve) for liquid-line drying. Refrigerant compatibility per the DML/DCL datasheet — verify against your system charge. Net weight 0.326 kg, gross 0.424 kg. EAN 5702428155519.
Specifications
- Part number
- 023Z5060
- HS code
- 8421.39
- Material
- Steel shell, Cu-plated steel connectors, 100% molecular sieve core
- Pressure rating
- 46 bar (667 psig) max working pressure
- Temperature range
- -40 °C to 70 °C
- Standard size
- 12 mm
Compatibility
Refrigerant compatibility listed on the DML/DCL datasheet. Only solder (Cu-plated/pure-copper) versions in sizes below 25 mm are approved for flammable refrigerants. Verify against your system specification before ordering.
Standards
Approvals
