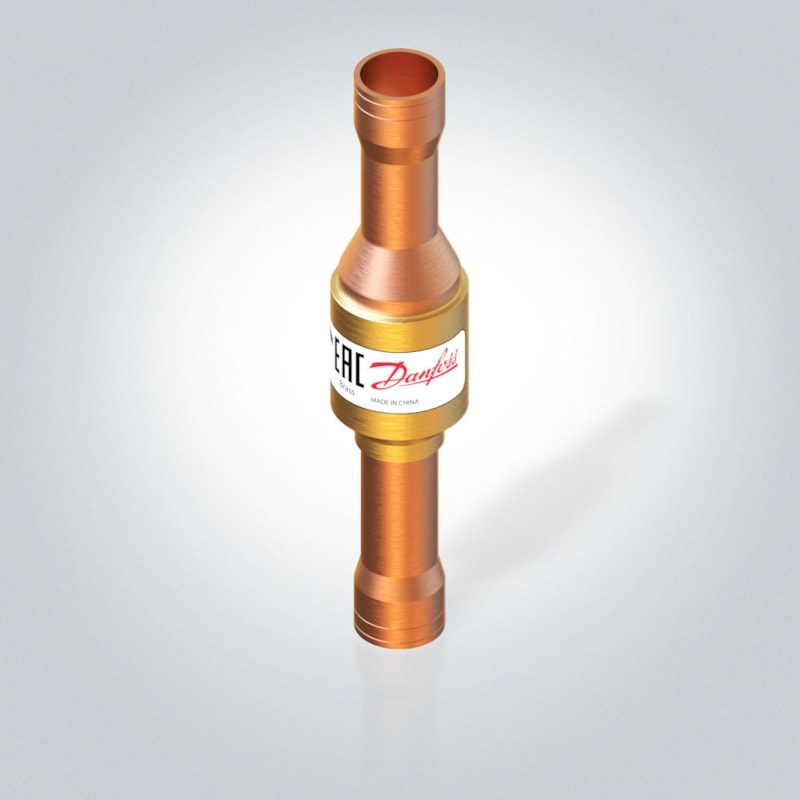

Danfoss NRV 19S Check Valve 22 mm (7/8 in) ODF Solder Straightway
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss NRV 19s piston-type check valve (non-return valve), OEM P/N 020B1054. Controls unidirectional refrigerant flow to prevent back-flow in commercial refrigeration and air-conditioning systems. Straightway pattern, Solder, ODF, 22 mm (7/8 in), inlet and outlet. Built-in damping piston suits lines subject to pulsation, such as the compressor discharge line. Max working pressure 49 bar (710 psig); media temperature -50 °C to 155 °C. NRV = standard spring; the stronger-spring NRVH variant is the counterpart for parallel-compressor duty. Refrigerant compatibility is listed on the datasheet — verify against your system charge.
Technical Specifications
- Brand
- Danfoss
- Part number
- 020B1054
- Model
- NRV 19s piston-type check valve (non-return valve)
- Category
- HVAC & Refrigeration — Check Valves
- Direction
- Straightway
- Connection
- Solder, ODF, 22 mm (7/8 in), inlet and outlet
- Max working pressure (PS/MWP)
- 49 bar (710 psig)
- Media temperature range
- -50 °C to 155 °C (-58 °F to 311 °F)
- Kv
- 6.5 m³/h (Cv 7.51 gal/min)
- Min. pressure drop
- 0.05 bar (0.7 psi)
- Min. opening pressure differential
- 0.02 bar (0.29 psi)
- Flow
- single flow, with built-in damping piston
- Net weight
- 0.276 kg (gross 0.292 kg)
- Packing
- Multi pack (28 pc)
- EAN
- 5702428572187
- Materials
- Connection tube copper; solder ring brass; sealing disk brass; piston stainless steel; spring brass; valve body stainless steel; guide brass; washer PTFE with glass fibre
- Approvals
- UL (C UL US Listed), EAC, PED (Art. 4 par. 3)
- Refrigerants
- R134a, R22/R407C, R290, R32, R404A/R507A, R407A, R407F, R407H, R410A, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R513A, R515B, R516A, R600, R600a, R1233zd(E), R1234ze(E), R1234yf, R1270
- Type
- NRV 19s
- Product group
- Check valves
- Approval
- C UL US LISTED
- Body material
- Brass
- China RoHS compliance
- Yes with exemptions
- Connection Code
- (3001:X:22); (3002:X:22)
- Connection material
- Copper
- Connection notes
- Oversize
- Cv value [gal/min]
- 7.51 gal/min
- Design
- Piston
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flow direction
- Single-flow
- Flow direction indicator
- On product label
- Fluid Group
- 1
- Identical product
- 020B1091
- Ignition source assessment
- Yes
- Inlet connection type
- Solder, ODF
- Inlet size [in]
- 7/8 in
- Inlet size [mm]
- 22 mm
- Kv value [m³/h]
- 6.5 m³/h
- Lubricants compatibility
- Oilfree applications
- Max. Working Pressure [bar]
- 49 bar
- Max. Working Pressure [psig]
- 710 psig
- Min. Pressure drop [bar]
- 0.05 bar
- Min. Pressure drop [psi]
- 0.7 psi
- MinODP [bar]
- 0.02 bar
- MinODP [psi]
- 0.29 psi
- Oil free refrigerants
- R1234ze(E)
- Outlet connection type
- Solder, ODF
- Outlet size [in]
- 7/8 in
- Outlet size [mm]
- 22 mm
- PED category
- Art. 4, par. 3
- Rated cap cond, Hot gas [IMP]
- tcond=86 °F
- Rated cap cond, Hot gas [SI]
- tcond=30 °C
- Rated cap cond, Liq. cap [IMP]
- tcond=86 °F
- Rated cap cond, Liq. cap [SI]
- tcond=30 °C
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Temperature range [°C] [max]
- 155 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 311 °F
- Temperature range [°F] [min]
- -58 °F
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL approved refrigerants
- R1233zd(E)
- UL mark
- Yes
Standards & Compliance
- Material
- Connection tube copper; solder ring brass; sealing disk brass; piston stainless steel; spring brass; valve body stainless steel; guide brass; washer PTFE with glass fibre
- Pressure Rating
- 49 bar (710 psig) max working pressure
- Temperature Range
- -50 °C to 155 °C
- Classification / Approval
- UL (C UL US Listed), EAC, PED (Art. 4 par. 3)
- HS Code
- 8481.30
Compatibility & Fitment
Install in the direction of the flow arrow. The differential pressure across the valve must exceed the minimum opening pressure differential, including at the lowest capacity of capacity-regulated compressors. Braze the ODF solder ends with care to protect the internal seals. Verify code, connection size and spring variant (NRV vs NRVH) before ordering.
