Danfoss GBC 54S E Shut-off Ball Valve 54 mm (2 1/8 in) Solder ODF
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss GBC 54s E manually operated shut-off ball valve, OEM P/N 009L9029. Used to isolate liquid, suction and hot-gas lines in commercial refrigeration and air-conditioning systems. Straightway, bi-directional design with solder ODF/ODF connections, 54 mm (2 1/8 in) inlet and outlet. Brass body with copper tube and an EPDM-sealed ball, with a one-piece wire-seal cap. This version has no access port. Max working pressure 49 bar (710 psig); media temperature -40 °C to 150 °C. Refrigerant compatibility is listed below and on the datasheet — verify against your system charge.
Technical Specifications
- Brand
- Danfoss
- Part number
- 009L9029
- Model
- GBC 54s E shut-off (stop) ball valve
- Category
- HVAC & Refrigeration — Ball Valves
- Direction
- Straightway
- Flow
- Bi-directional (valve orientation is unimportant)
- Connection
- Solder, ODF/ODF, 54 mm (2 1/8 in), inlet and outlet
- Access port
- No
- Max working pressure (PS/MWP)
- 49 bar (710 psig)
- Media temperature range
- -40 °C to 150 °C (-40 °F to 302 °F)
- Kv
- 240.11 m³/h
- Cv
- 277.57 gal/min
- Net weight
- 4.2 kg
- Gross weight
- 4.81 kg
- Materials
- Brass body; copper tube; EPDM ball seal; one-piece wire-seal cap
- PED category
- II
- Approvals
- C UL US Listed, CE, EAC
- Multipack
- 2
- EAN
- 5702428659154
- Refrigerant compatibility
- R134a, R22/R407C, R290, R32, R404A/R507, R407A, R407F, R407H, R410A, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R513A, R515B, R516A, R1233zd(E), R1234ze(E), R1234yf
Standards & Compliance
- Material
- Brass body; copper tube; EPDM ball seal — full material breakdown in the GBC datasheet
- Pressure Rating
- 49 bar (710 psig) max working pressure
- Temperature Range
- -40 °C to 150 °C
- Classification / Approval
- C UL US Listed, CE, EAC
- HS Code
- 8481.80
Compatibility & Fitment

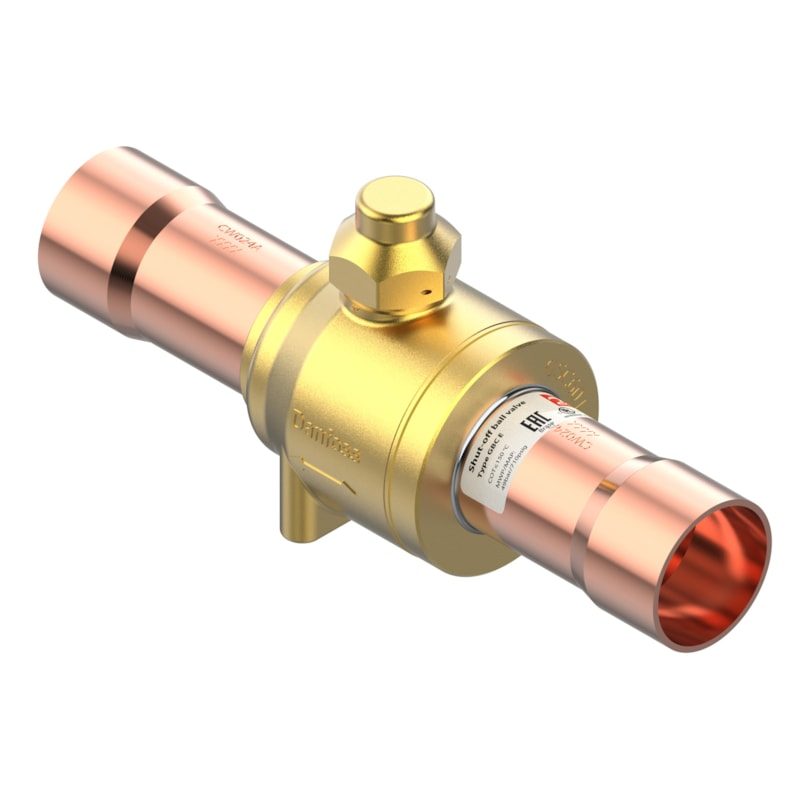

Manually operated shut-off ball valve for liquid, suction and hot-gas lines in refrigeration and air-conditioning systems. Bi-directional (valve orientation is unimportant). Solder ODF/ODF 54 mm (2 1/8 in) connections, no access port — verify code and connection size before ordering. Image is the genuine Danfoss GBC datasheet product render (representative GBC-family body) shared across the GBC line.
