Danfoss GBC 12L Shut-off Ball Valve with Access Port 1/2 in Solder ODF 009L8652
Danfoss · HVAC & Refrigeration · Ball Valves
Danfoss GBC 12L manually operated shut-off ball valve, OEM P/N 009L8652. Used to isolate liquid, suction and hot-gas lines in commercial refrigeration and air-conditioning systems. Straightway, bi-directional design with solder ODF connections, 1/2 in inlet and outlet. Stainless steel body with Cu-plated stainless steel tube and a one-piece wire-seal cap. This version is equipped with an external access port (Schrader-type, 7/16-20 UNF) for service and charging of the system. Max working pressure 50 bar (725 psig); media temperature -40 °C to 150 °C. Refrigerant compatibility is listed below and on the datasheet — verify against your system charge.
Specifications
- Part number
- 009L8652
- HS code
- 8481.80
- Material
- Stainless steel body; Cu-plated stainless steel tube — full material breakdown in the GBC datasheet
- Pressure rating
- 50 bar (725 psig) max working pressure
- Temperature range
- -40 °C to 150 °C
Compatibility

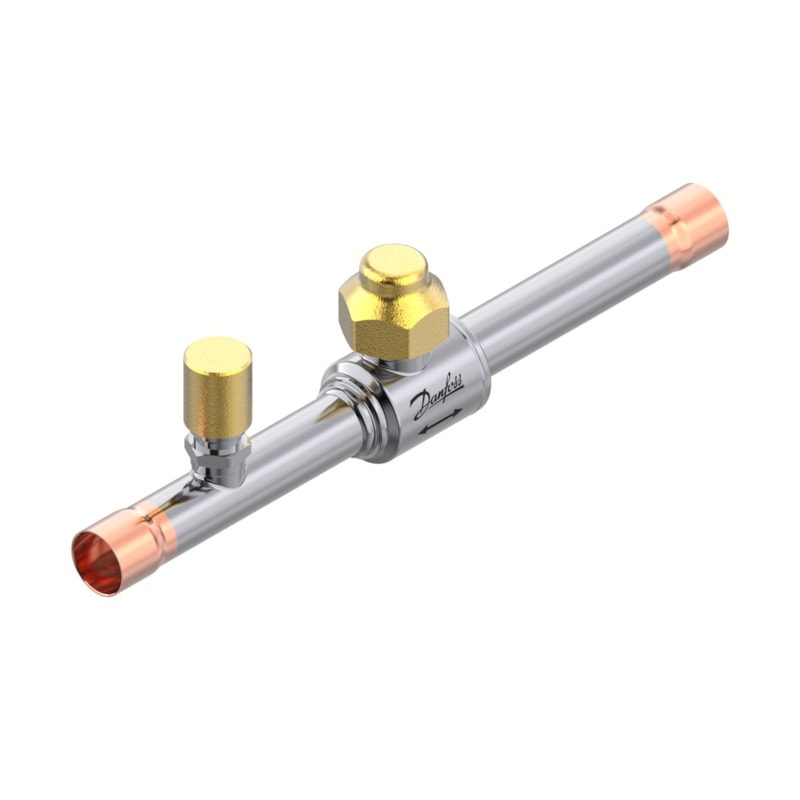

Manually operated shut-off ball valve for liquid, suction and hot-gas lines in refrigeration and air-conditioning systems. Bi-directional (valve orientation is unimportant). Solder ODF connections; external access port for service/charging — verify code and connection size before ordering. Image is the genuine Danfoss GBC datasheet product render (representative GBC-family body) shared across the GBC line.
Standards
Approvals
