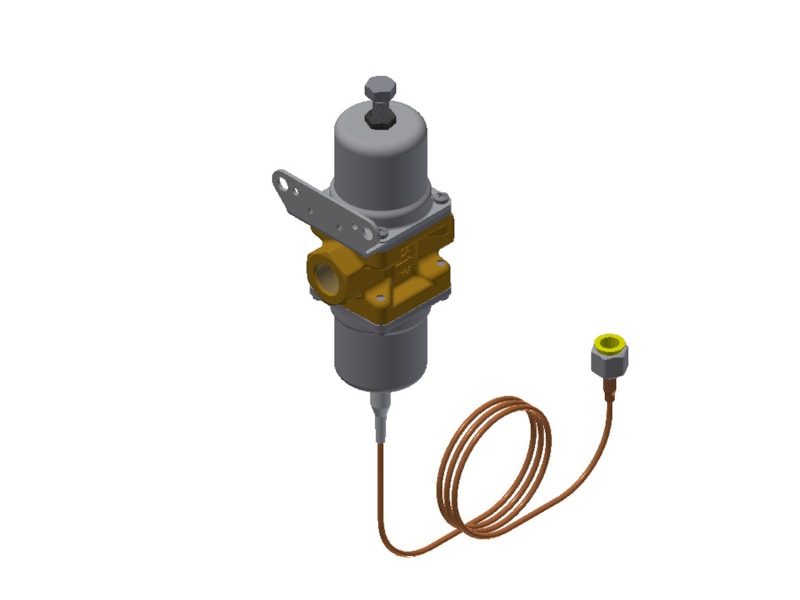

Danfoss WVO 10 Water Regulating Valve G 3/8 in
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss WVO 10 pressure-operated water regulating valve, OEM P/N 003N8054. Modulates condenser cooling-water flow to hold the condensing pressure constant and shuts the water off when the plant stops: the valve is opened by the condensing (refrigerant) pressure on a bellows and closed by an adjustable spring. Opens on rising cond. pressure. Water connection 3/8 in G (ISO 228-1); refrigerant sensing 7/16 in - 20 UNF SAE flare union nut. Kv 0.63 m³/h. Body Brass. Max working pressure 16 bar (232 psig). Media Fresh water. OEM designation "". OEM P/N 003N8054. EAN 5702428976008. Technical data quoted verbatim from store.danfoss.com (code 003N8054).
Technical Specifications
- Brand
- Danfoss
- Part number
- 003N8054
- Model
- WVO 10
- Category
- HVAC & Refrigeration — Water Regulating Valves
- Function
- Pressure-operated water regulating valve (condenser)
- Nominal size
- WVO 10 (DN 10)
- Opening configuration
- Opens on rising cond. pressure
- Water connection size
- 3/8 in G
- Connection standard
- ISO 228-1
- Refrigerant sensing connection
- 7/16 in - 20 UNF SAE flare union nut
- Capillary tube length
- 900 mm
- Kv value
- 0.63 m³/h (Cv 0.7 gal/min)
- Orifice size
- 10 mm (2/5 in)
- Max differential pressure
- 10 bar
- Max working pressure
- 16 bar (232 psig)
- Max test pressure
- 24 bar
- Body material
- Brass
- Lubricants
- Oilfree applications
- Refrigerants (sensing side)
- R1234yf R134a R22 R404A R407A R407C R407F R407H R422B R422D R448A R449A R449B R450A R452A R454A R454C R455A R507A R513A
- Media
- Fresh water
- Medium temperature range
- -25 °C to 130 °C (-13 °F to 266 °F)
- Approvals
- UL, PED, EAC, China RoHS, RoHS
- REACH Candidate List substance
- Lead (CAS no. 7439-92-1)
- Packing
- Multi pack (10 pc)
- Volume
- 4.082 L
- Net weight
- 1.051 kg
- Gross weight
- 1.314 kg
- OEM description
- EAN: 5702428976008
- HS code
- 8481.80
- EAN
- 5702428976008
Standards & Compliance
- Size / Series
- WVO 10
- Material
- Brass
- Thread Standard
- ISO 228-1
- Pressure Rating
- 16 bar (232 psig) max working pressure
- Temperature Range
- -25 °C to 130 °C
- Classification / Approval
- UL, PED, EAC, China RoHS, RoHS
- HS Code
- 8481.80
Compatibility & Fitment
Fit in the cooling-water line to the condenser with the flow arrow in the direction of flow; the refrigerant sensing connection goes to the condenser/receiver. Set the closing pressure to the required condensing pressure. Direct-acting (opens on rising pressure). Confirm code, water connection and control-pressure range against the datasheet before ordering.
