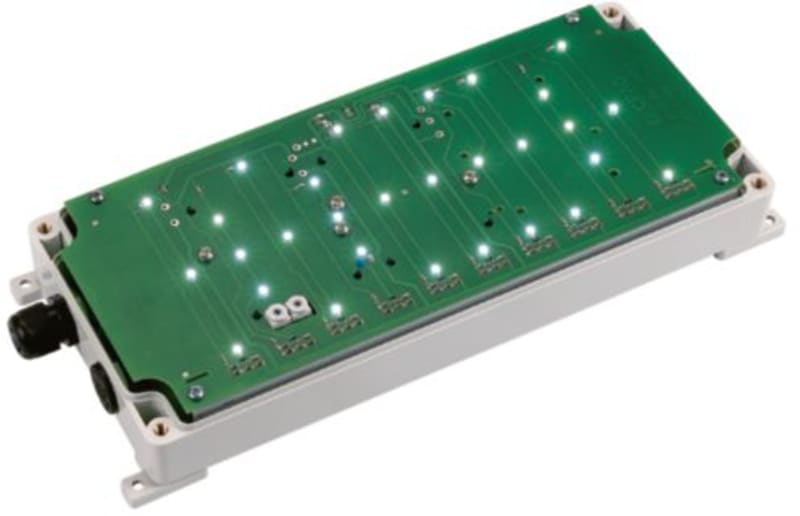

EXIT CG-S (clear) (12191020004)

Ceag 12191020004 EXIT CG-S (CLEAR).

Manufacturer part number (MPN)

12191020004

EAN / GTIN

4250217412974

Sales unit

pcs

Mounting method

Surface mounting

Protection class according to IEC 61140

I

Width

76 mm

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Voltage type

AC/DC

Power supply system

Central

Suitable for lamp power

6 W

Type of control gear

Electronic transformer

Colour rendering index CRI

70-79

Type of indicator

Single-sided

Number of poles

3

Length

356 mm

Height/depth

175 mm

Housing material

Plastic

Lamp type

LED not exchangeable

Wiring system

Continuous circuit/emergency circuit

Impact strength

IK10

Nominal voltage

220–254 V

Degree of protection (IP)

IP66

For Ex-zone gas

1, 2

With light source

Yes

Suitable for number of light sources

1

Monitoring equipment

Safety module for monitoring (central feeded system)

For Ex-zone dust

21, 22

Luminous flux in emergency mode

185 lm

Recognition distance

25 m

Colour temperature

3000–6500 K

Max. system power

6 W

Rated luminous flux according to IEC 62722-2-1

185 lm

Colour of light

White

Constant light output (CLO)

No

Type of wiring

Suitable for loop-through wiring

Rated lifetime L70/B50 at 25 °C

60 h

Energy efficiency class of the built-in lamp

A++, A+, A (LED)

Highest energy efficiency class of the exchangeable lamp

A

Lowest energy efficiency class of the exchangeable lamp

A

Nominal operation time

60000 h

Exchangeable control gear

Yes

Power factor

0.95

Country of origin

Germany

HS Code

9405.61

• EAN 4250217412974
• SAP 1200111884
• Code 81983213
