Ceag

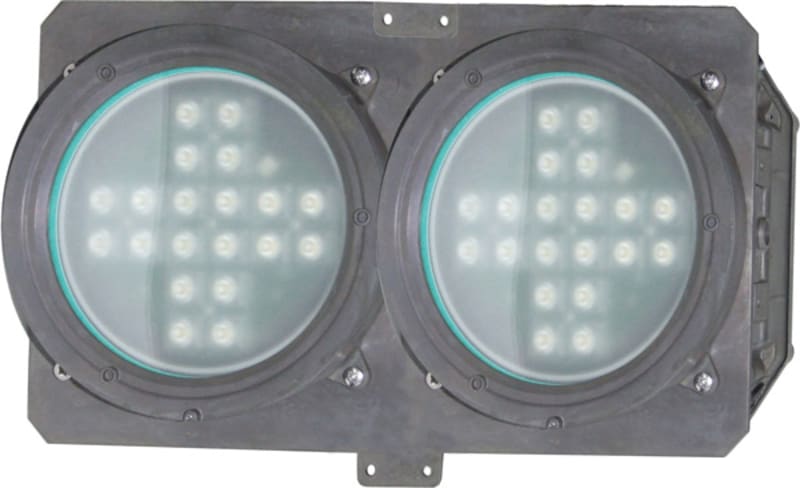

PXLED 10L B 757 C T0 E01 LED Flood light
Part number13042210001EAN / GTIN4250959974273HS code8543.70
Hazardous Area Equipment
ATEX Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Ceag 13042210001 LED EX FLOODLIGHT PXLED 10L B 757 C T0 E01.
Technical Specifications
- Manufacturer part number (MPN)
- 13042210001
- EAN / GTIN
- 4250959974273
- HS code
- 8543.70
- Sales unit
- pcs
- Mounting method
- Wall-/ceiling mounting
- Adjustable
- Yes
- Lamp type
- LED not exchangeable
- With light source
- Yes
- Suitable for number of light sources
- 2
- Lamp holder
- None
- Housing material
- Aluminium
- Material cover
- Glass transparent
- Voltage type
- AC/DC
- Nominal voltage
- 110–277 V
- Type of control gear
- LED operating device current-controlled
- With control gear
- Yes
- Exchangeable control gear
- No
- Light distributor
- Focal lens
- Beam angle
- 21-40° - Medium beam
- Degree of protection (IP)
- IP66
- Impact strength
- IK10
- Protection class according to IEC 61140
- I
- For Ex-zone gas
- 1, 2
- For Ex-zone dust
- 21, 22
- Rated ambient temperature according to IEC 62722-2-1
- -50–55 °C
- Suitable for lamp power
- 98 W
- Max. system power
- 98 W
- Rated luminous flux according to IEC 62722-2-1
- 10.772 lm
- Colour of light
- White
- Colour temperature
- 5700 K
- Power factor
- 0.95
- Constant light output (CLO)
- No
- Width
- 303 mm
- Height/depth
- 259 mm
- Length
- 502 mm
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 6
- Conductor cross section
- 6 mm²
- Connection type
- Screwed terminal
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 4250959974273
- SAP 1200117784
- Code 81980963
Product Documentation
Document preview: PXLED 10L B 757 C T0 E01 LED Flood light (13042210001) — Specification sheet
