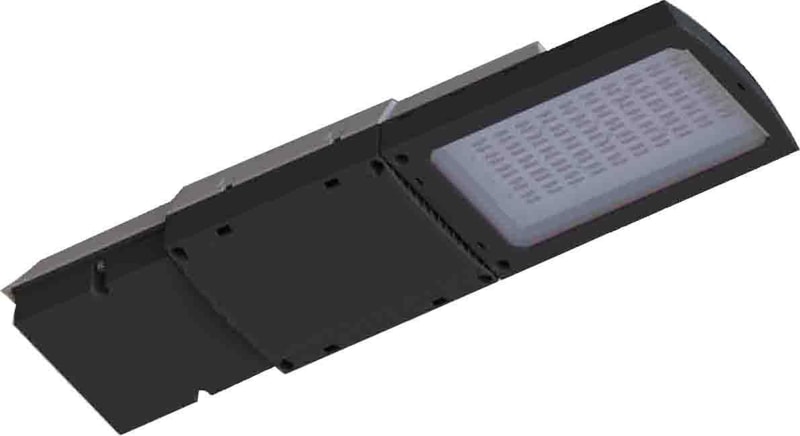

ExLin 3L-1 NE+GCS 750 T1 2/6 M25K CRI70

Ceag 12320120103 ExLin NE.

Manufacturer part number (MPN)

12320120103

EAN / GTIN

4251510799427

Sales unit

pcs

Mounting method

Wall-/ceiling mounting

Adjustable

No

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of light sources

1

Lamp holder

None

Housing material

Plastic

Material cover

Glass transparent

Voltage type

AC/DC

Nominal voltage

110–277 V

Type of control gear

LED operating device voltage-controlled

With control gear

Yes

Exchangeable control gear

No

Light distributor

None

Beam angle

Open beam/diffuse

Energy efficiency class of the built-in lamp

A++, A+, A (LED)

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP66

Impact strength

IK10

Protection class according to IEC 61140

I

For Ex-zone gas

1, 2

For Ex-zone dust

21, 22

Rated ambient temperature according to IEC 62722-2-1

-40–55 °C

Suitable for lamp power

22 W

Max. system power

22 W

Rated luminous flux according to IEC 62722-2-1

2.75 lm

Colour of light

White

Colour temperature

5000 K

Power factor

0.92

Constant light output (CLO)

No

Width

201 mm

Height/depth

115 mm

Length

770 mm

Type of wiring

Loop-through wiring included

Number of poles

6

Conductor cross section

6 mm²

Connection type

Screwed terminal

Country of origin

Germany

HS Code

9405.42

• EAN 4251510799427
• SAP 1200624016
• Code 83039534
