Ceag
EXLIN3L-1 GFS 750 T1 2/6 M20M
Part number12300125111EAN / GTIN4251510723811HS code9405.42
Hazardous Area Equipment
ATEX Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

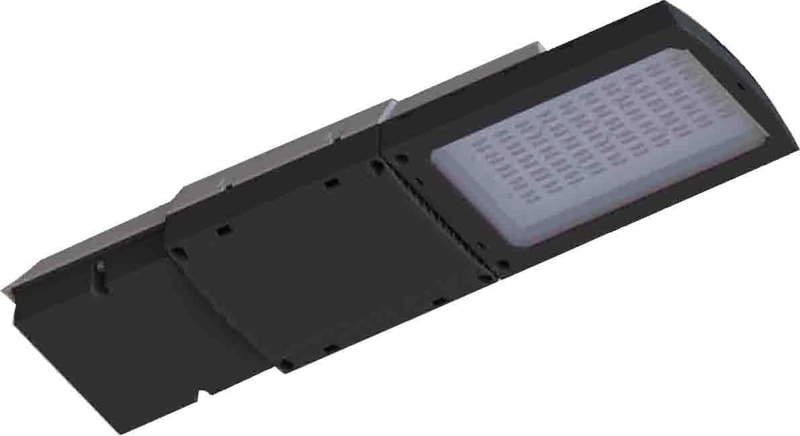

Ceag 12300125111 ExLin EX LED luminaire, Zone 1 and Zone 2. 2370 lumen.
Technical Specifications
- Manufacturer part number (MPN)
- 12300125111
- EAN / GTIN
- 4251510723811
- Sales unit
- pcs
- Mounting method
- Wall-/ceiling mounting
- Adjustable
- No
- Lamp type
- LED exchangeable
- With light source
- Yes
- Suitable for number of light sources
- 1
- Lamp holder
- None
- Housing material
- Plastic
- Material cover
- Glass matt/satinized
- Voltage type
- AC/DC
- Nominal voltage
- 110–277 V
- Type of control gear
- LED operating device voltage-controlled
- With control gear
- Yes
- Exchangeable control gear
- No
- Light distributor
- Diffuser lens/optic/panel
- Beam angle
- 41-80° - Wide beam
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Highest energy efficiency class of the exchangeable lamp
- A++
- Lowest energy efficiency class of the exchangeable lamp
- E
- Degree of protection (IP)
- IP66
- Impact strength
- IK10
- Protection class according to IEC 61140
- I
- For Ex-zone gas
- 1, 2
- For Ex-zone dust
- 21, 22
- Rated ambient temperature according to IEC 62722-2-1
- -40–55 °C
- Suitable for lamp power
- 22 W
- Max. system power
- 22 W
- Rated luminous flux according to IEC 62722-2-1
- 2.37 lm
- Colour of light
- White
- Colour temperature
- 5000 K
- Power factor
- 0.92
- Constant light output (CLO)
- No
- Width
- 201 mm
- Height/depth
- 115 mm
- Length
- 770 mm
- Type of wiring
- Loop-through wiring included
- Number of poles
- 6
- Conductor cross section
- 6 mm²
- Connection type
- Screwed terminal
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 4251510723811
- SAP 1200624001
- Code 83039529
Product Documentation
Document preview: EXLIN3L-1 GFS 750 T1 2/6 M20M (12300125111) — Specification sheet
More from Ceag
Ceag
Ex d Nipple ADE4F M20 Ø10-16 mm
CAP846694V1
Ceag
EXIT N (arrow Right-Hand) PR
12191030001
Ceag
Nipple ADE5F for armoured cable (CAP856604V1)
Ceag
Nipple ADE4F for armoured cable (CAP847304V1)
Ceag
Blanking plug EExe M63 screw plastic
GHG 960 1952 R0117
Ceag
Nipple ADE4F for armoured cable (CAP847094V1)
Ceag
Ex e Nipple M50, Newcap MS-e Ø31-40,5 mm
CAP192504V1
Ceag

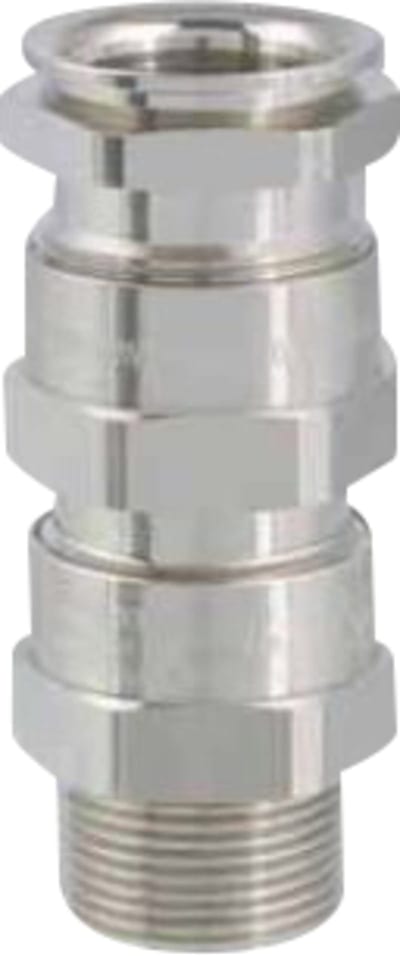

Nipple ADE4F for armoured cable (CAP847294V1)
