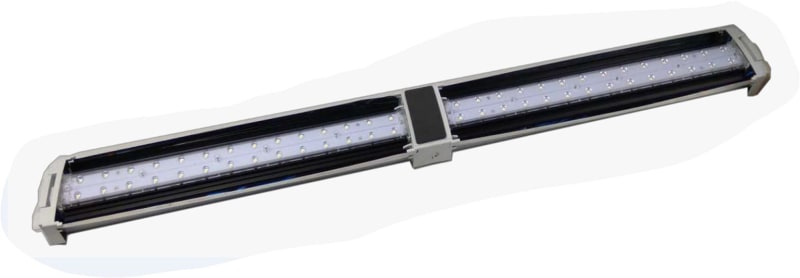

LED cassette 800 A for eLLK 92 (CCL1635130)

Ceag CCL1635130 ELLK-4-W with conversion kit.

Manufacturer part number (MPN)

CCL1635130 EAN / GTIN: 6972013600086 Sales unit: pcs Rated current: 800 A Mounting method: Wall-/ceiling mounting Adjustable: No Lamp type: LED exchangeable With light source: No Suitable for number of light sources: 1 Lamp holder: G13 Housing material: Plastic material cover: Plastic, transparent Voltage type: AC/DC Nominal voltage: 110–254 V Type of control gear: Electronic ballast With control gear: Yes Exchangeable control gear: No Light distributor: Reflector Beam angle: 41-80° - Wide beam Degree of protection (IP): IP66 Impact strength: IK10 Protection class according to IEC 61140: I For Ex-zone gas: 1, 2 For Ex-zone dust: 21, 22 Rated ambient temperature according to IEC 62722-2-1: -25–55 °C Suitable for lamp power: 36 W Rated luminous flux according to IEC 62722-2-1: 2.7 lm Colour of light: White Colour temperature: 4000 K Power factor: 0.95 Constant light output (CLO): No Width: 188 mm Height/depth: 130 mm Length: 1360 mm Type of wiring: Loop-through wiring included Number of poles: 6 Conductor cross section: 6 mm² Connection type: Screwed terminal

HS Code

9405.99

• EAN 6972013600086
• SAP 1200624014
• Code 83039548
