Ceag

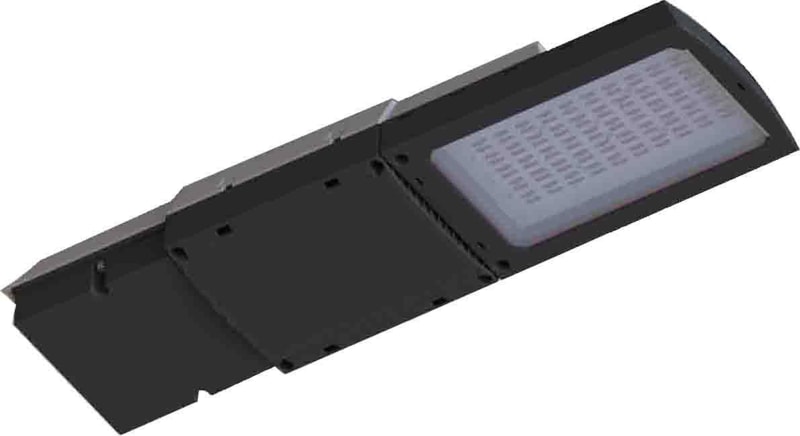

EXLIN5L-1 GCS 750 T1 1/6 M20M
Part number12300140109EAN / GTIN4251510723842HS code9405.42
Hazardous Area Equipment
ATEX Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Ceag 12300140109 ExLin EX LED luminaire, Zone 1 and Zone 2. 5300 lumen.
Technical Specifications
- Manufacturer part number (MPN)
- 12300140109
- EAN / GTIN
- 4251510723842
- Sales unit
- pcs
- Mounting method
- Wall-/ceiling mounting
- Adjustable
- No
- Lamp type
- LED exchangeable
- With light source
- Yes
- Suitable for number of light sources
- 1
- Lamp holder
- None
- Housing material
- Plastic
- Material cover
- Glass transparent
- Voltage type
- AC/DC
- Nominal voltage
- 110–277 V
- Type of control gear
- LED operating device voltage-controlled
- With control gear
- Yes
- Exchangeable control gear
- No
- Light distributor
- Diffuser lens/optic/panel
- Beam angle
- 41-80° - Wide beam
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Highest energy efficiency class of the exchangeable lamp
- A++
- Lowest energy efficiency class of the exchangeable lamp
- E
- Degree of protection (IP)
- IP66
- Impact strength
- IK10
- Protection class according to IEC 61140
- I
- For Ex-zone gas
- 1, 2
- For Ex-zone dust
- 21, 22
- Rated ambient temperature according to IEC 62722-2-1
- -40–55 °C
- Suitable for lamp power
- 44 W
- Max. system power
- 44 W
- Rated luminous flux according to IEC 62722-2-1
- 5.3 lm
- Colour of light
- White
- Colour temperature
- 5000 K
- Power factor
- 0.95
- Constant light output (CLO)
- No
- Width
- 201 mm
- Height/depth
- 115 mm
- Length
- 770 mm
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 4251510723842
- SAP 1200624002
- Code 83039552
Product Documentation
Document preview: EXLIN5L-1 GCS 750 T1 1/6 M20M (12300140109) — Specification sheet
More from Ceag
Ceag
M50 x M40 Reducer M to F NPB
BBA1615YXN
Ceag
Trumpet Gland M40 19-27mm Plastic
GHG 960 1949 R0114
Ceag
M32 x M20 Reducer M to F NPB
BBA1412YXN
Ceag
Blanking PLUG M63X1,5
GHG9601944R0108
Ceag
Lock Nut M40X1,5 Plastic
GHG9601941R0036
Ceag
PXLED 30L B 757 C T0 E01 LED Flood light
13042610001
Ceag
ExLin 5L-1 NE+GFS 750 T1 1/6 M25K CRI70
12320145101
Ceag

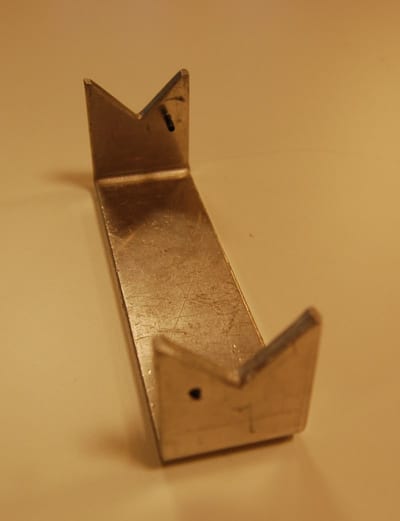

Mountingstool for eLLK 92
