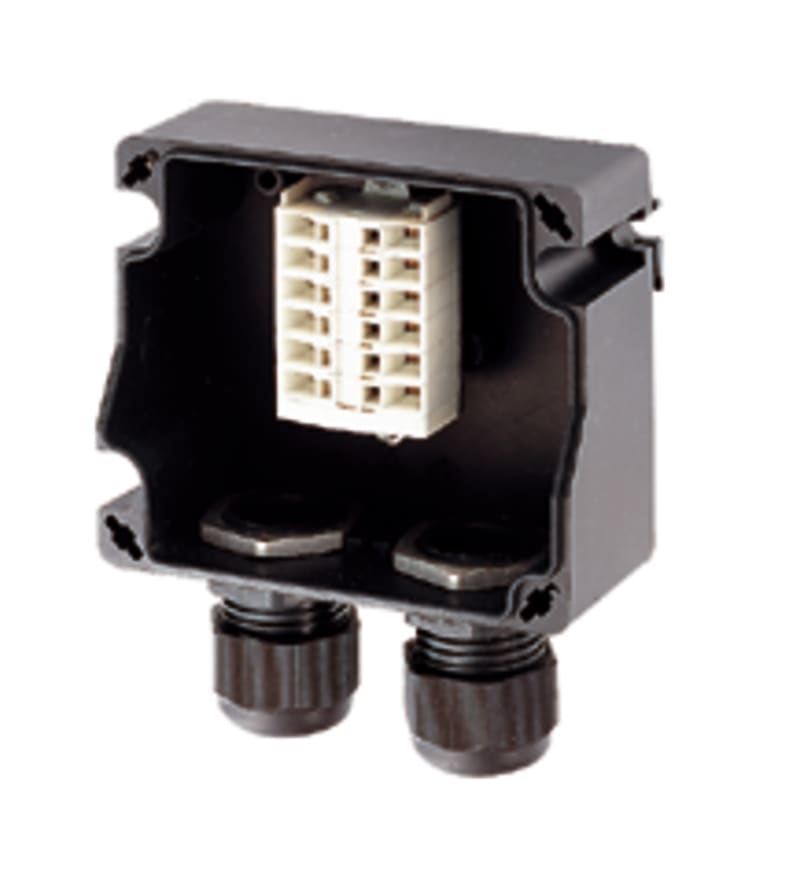

Ceag EEx ia IIC T6 Plastic Junction Box, 6 x 2.5 mm² Terminals, IP66
Pricing
Request a quote
We reply within 24 hours
Product Description
Ceag GHG 791 0101 R0008 is an intrinsically-safe junction box certified EEx ia IIC T6 in a plastic housing with six screw terminals rated 2.5 mm². Cable entries comprise one M25 gland for Ø8–17 mm cable and one M25 gland accepting two Ø4.5–7 mm cables; enclosure rating is IP66 with certificate PTB 00 ATEX 3108. Suitable for Ex zones 1, 2, 21 and 22.
Technical Specifications
- Manufacturer part number (MPN)
- GHG 791 0101 R0008
- EAN / GTIN
- 4012539307303
- Sales unit
- pcs
- Number of connection clamps
- 6
- Max. conductor cross section
- 2.5 mm²
- Length
- 81.5 mm
- Width
- 100 mm
- Depth
- 61 mm
- Material plate thickness cabinet
- 3 mm
- Mounting method
- Surface mounted
- Extension possible
- No
- Number of inlets
- 2
- Type of inlet
- Gland nut
- Material
- Plastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Colour
- Black
- Degree of protection (IP)
- IP66
- With cover
- Yes
- Cover attachment
- Screwed
- With transparent cover
- No
- Sealable
- No
- Rated insulation voltage Ui
- 690 V
- Circuit integrity
- None
- Operating temperature
- -20–40 °C
- Explosion-tested version
- Yes
- For Ex-zone gas
- 1, 2
- For Ex-zone dust
- 21, 22
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4012539307303
- SAP 1000037323
- Code 8737001
Product Documentation
More from Ceag
Ceag
CEAG GHG7450202R3672 Ex e Terminal Junction Box without Flange
Ceag
Junction Box EEXE GHG-744 01
GHG 744 0101 R0955
Ceag
Plug EXE 4-Pole 500V 63A (GHG 514 7407 R0001)
Ceag
Connector EXE 5-Pole 400V 63A
GHG5144506R0001
Ceag
EXIT N (arrow down) PU
12191030003
Ceag
Multi Nipple Plastic EEXE M25
GHG9601955R0054
Ceag
EEX S.LUMINAIRE 20-250V for Panelmont
GHG4188170R0051
Ceag
Switch, Mini 2-Pole "0-II-" 16A
GHG 418 8190 R6201
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy GHG 791 0101 R0008?
- GHG 791 0101 R0008 can be ordered from cballast.com as a Ceag catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Ceag product?
- The manufacturer part number is GHG 791 0101 R0008.
- What is the HS code for GHG 791 0101 R0008?
- The customs tariff (HS) code for GHG 791 0101 R0008 is 8536.90.
- Who manufactures GHG 791 0101 R0008?
- GHG 791 0101 R0008 is a Ceag product in the Enclosures range.
- Is a datasheet available for GHG 791 0101 R0008?
- Yes — the GHG 791 0101 R0008 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for GHG 791 0101 R0008?
- The minimum order quantity is 1.
- Is GHG 791 0101 R0008 available?
- Yes — GHG 791 0101 R0008 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
